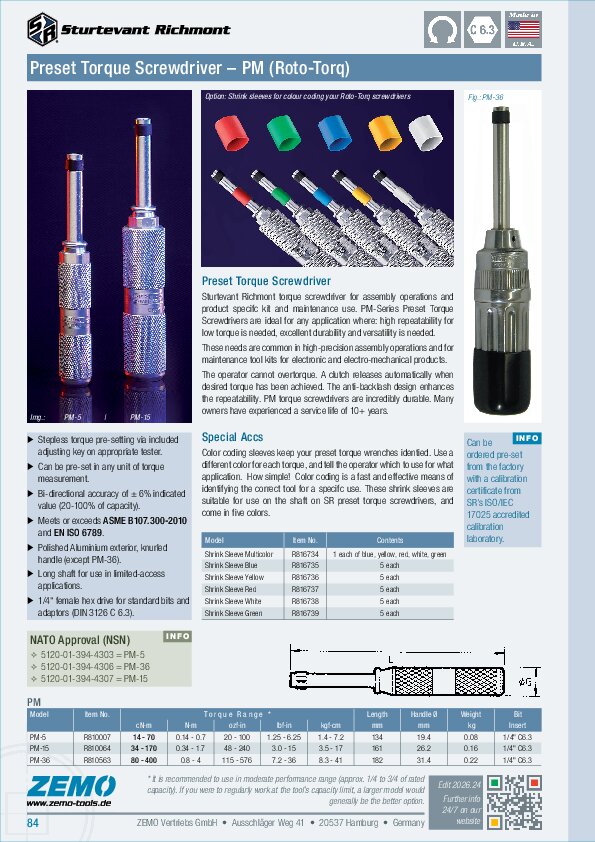

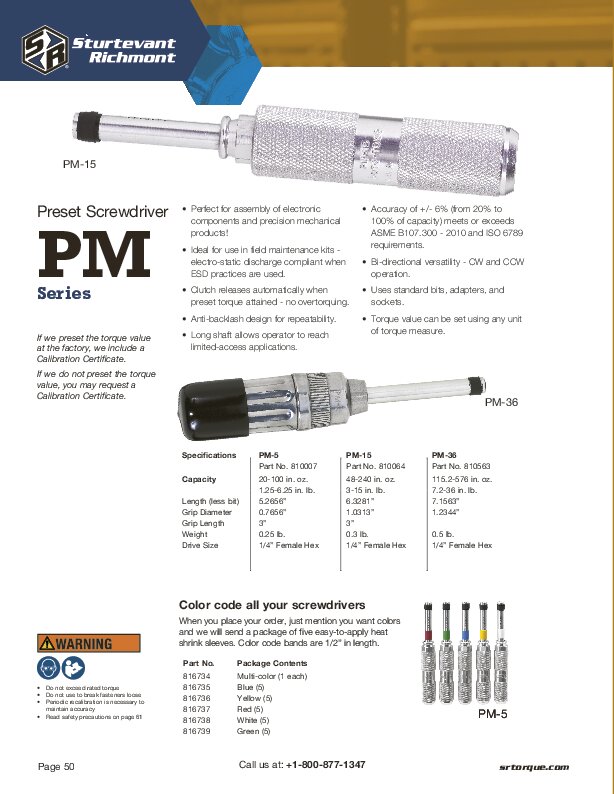

Sturtevant Richmont Roto-Torq PM Preset Torque Screwdriver

Capacity 6 / 15 / 36 lbf·in

Cam-Over Preset Torque Screwdriver

Customers around the world hail the SR Torque Screwdriver as the absolute best in the world. Why? Let's start at the beginning.

Richmont company founder Frank Livermont (former Lockheed Martin engineer) invented the torque screwdriver. Early on, Cleco wanted to buy the patent. Livermont refused to sell the patent. So Cleco made Livermont an offer he couldn't refuse. They bought the company. Cleco made the limited slip clutch famous; they owe that notoriety to the inventive Frank Livermont.

The design hasn't changed much since 1944 when Livermont patented the torque screwdriver. Why hasn't it changed? Because Livermont got it right the first time!

Now, it’s a classic.

The Roto-Torq PM series preset torque screwdrivers for assembly operations and product specific kit and maintenance use are ideal for any application where:

High repeatability for low torque is needed.
Excellent durability and versatility is needed.

These needs are common in high-precision assembly operations and for maintenance tool kits for electronic and electro-mechanical products.

The operator cannot overtorque. A clutch releases automatically when desired torque has been achieved. The anti-backlash design enhances the repeatability. PM torque screwdrivers are incredibly durable. Many owners have experienced a service life of 10+ years.

Key Features

Meets or exceeds ASME B107.300:2010 and EN ISO 6789.
Bi-directional accuracy of ± 6% indicated value (20-100% of capacity).
Anti-backlash design enhances repeatability.
Short dwell designed to prevent repetitive motion injuries (RSI).
Can be set in any unit of torque measurement.
Polished Aluminium exterior (except Model PM-36-S with steel shaft).
Long shaft for use in limited-access applications.
1/4“ female hex drive for standard bits and adaptors (DIN 3126 C 6.3).

Options / Accs / Spares

Insert bits 6.35 mm (1/4 inch) hex drive.
Can be ordered preset from factory with certificate of calibration from SR's ISO/IEC 17025 Accredited Calibration Laboratory.
If you use several PM screwdrivers with different torque settings – simply colour-code them on the shaft to prevent risk of confusion.

NATO approval (NSN)

PM-5 = 5120-01-394-4303
PM-15 = 5120-01-394-4307
PM-36 = 5120-01-394-4306

RotoTorq PM

Model	Item No.	Torque Range [ozf·in]	Torque Range [lbf·in]	Torque Range [cN·m]	Torque Range [kgf·cm]	Handle Ø [mm]	Weight [kg]	Length [mm]
PM-5	R 810007	20 - 100	–	14 - 71	1.4 - 7.2	19	0.08	134
PM-15	R 810064	48 - 240	3.0 - 15	34 - 169	3.5 - 17	26	0.16	161
PM-36	R 810563	–	7.2 - 36	81 - 407	8 - 40	31	0.22	182

Table showing specifications by the manufacturer. It is recommended to primarily use in medium performance range (approx. 1/3 to 4/5 of rated capacity). If you regularly worked close to the limit of load (maximum capacity), a larger model or tool might be more advisable.

All technical data without guarantee, errors and omissions excepted.
