Sturtevant Richmont SD-MG Torque Wrench

micrometer scale

lock/unlock knob

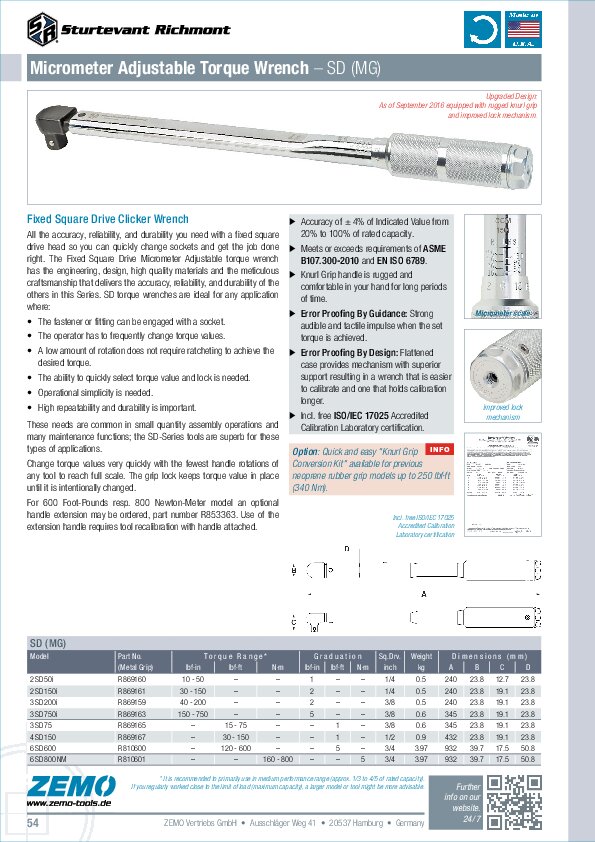

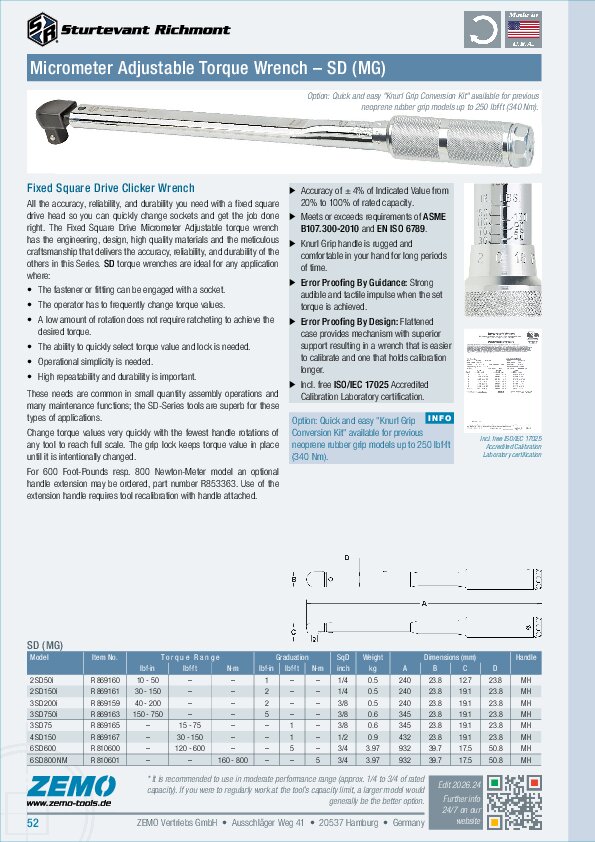

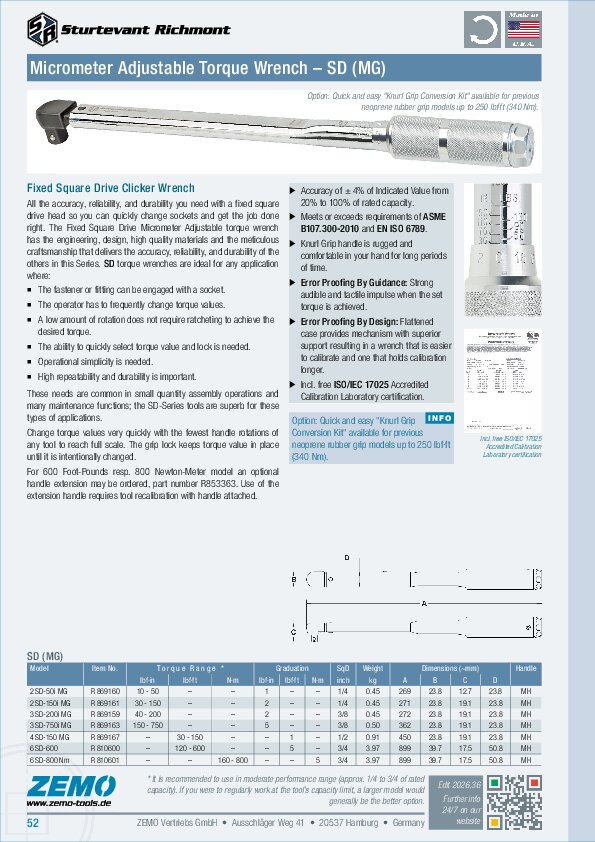

Downloads

INFO: The current metal handle design was introduced in autumn 2016. Before that (more precisely, since 1986), models with a capacity of up to 250 ft/3000 i/340 Nm were equipped with a rubber handle – recognisable by the item number beginning with R8101nn. Even older Richmont torque wrenches in this series were known as ‘Model F’ and also had a metal handle at that time.

Sturtevant Richmont SD Adjustable Torque Wrench

Capacity up to 800 Nm (see chart)

Micrometer Adjustable Clicker Wrench with Fixed Square Drive

When rapid adjustment and minimal fastener rotation are the need, these are the answer. Micrometer Adjustable Fixed Square Drive torque wrenches are ideal for any application where:

The fastener or fitting to be tightened can be engaged with a socket,
The user changes from one torque to another often,
A low amount of rotation does not require ratcheting to achieve the desired torque,
The ability to select the torque and lock it in rapidly is needed,
Simplicity of operation is needed,
Very high durability is needed.

These needs are common in small quantity assembly operations and many maintenance functions; the SD-Series tools are superb for these types of applications.

A simple thumbscrew mechanism locks handle to avoid unintended changing of torque setting. The strong dimensioned torque spring is the very heart of this clicker wrench. With reaching the pre-set torque, the torque spring is squeezed slightly, and the hardwearing pawl is releasing the tool tang. An excellent tactile and audible impulse signals that the pre-set torque is achieved. The well-proven neoprene rubber grip offers oil and chemical resistance, as well as cushioning and firm grip for good ergonomics.

Key Features

Accuracy ± 4% of indicated value (within 20-100% of capacity).
Meets or exceeds ASME B107.300-2010 and EN ISO 6789.
Exeptional wear-resistant fixed square drive.
Thick-walled housing profile provides high long-term stability.
Fast adjustment – takes the fewest grip rotations of any tool to reach full scale.
Strong audible and tactile impulse when the set torque is achieved.

Scope of Supply

Torque wrench SD
Certification from SR's ISO/IEC 17025 Accredited Calibration Laboratory
Operating manual

Option / Accs / Spares

Old version with neoprene handle optionally convertible to metal handle. Ask for your "Knurl Grip Conversion Kit".

NATO Stock Number (NSN)

5120-01-394-4274 = 2SD50I
5120-01-394-4275 = 3SD150I
5120-01-394-4276 = 2SD200I
5120-01-394-4277 = 2SD150I
5120-01-394-4278 = 3SD200I
5120-01-394-4279 = 3SD750I
5120-01-394-4280 = 4SD1800I
5120-01-394-4281 = 4SD150
5120-01-394-4282 = 3SD1200I

SD – S.I. Model (Nm)

Model	SKU	Torque Range [N·m]	Graduation	Sq.Drv [inch]	Weight [kg]	Length [mm]	Grip	GTIN / EAN
3SD-60Nm *	R 810180	12 - 60	0.5	3/8	0.59	270	Neopren	–
6SD-800Nm	R 810601	160 - 800	5	3/4	3.99	899	MH	4260667412318

* Discontinued model, available whilst stocks last.

SD – Pound-inch

Model	SKU	Torque Range [lbf·in]	Graduation	Sq.Drv [inch]	Weight [kg]	Length [mm]	Grip	GTIN / EAN
2SD-50i MG	R 869160	10 - 50	1	1/4	0.45	269	MH	4260667412325
2SD-150i MG	R 869161	30 - 150	2	1/4	0.45	271	MH	4260667412332
3SD-200i MG	R 869159	40 - 200	2	3/8	0.45	272	MH	4260667412349
3SD-750i MG	R 869163	150 - 750	5	3/8	0.50	362	MH	4260667412356

SD – Pound-foot

Model	SKU	Torque Range [lbf·ft]	Graduation	Sq.Drv [inch]	Weight [kg]	Length [mm]	Grip	GTIN / EAN
4SD-150 MG	R 869167	30 - 150	1	1/2	0.91	450	MH	4260667412363
6SD-600	R 810600	120 - 600	5	3/4	3.99	899	MH	4260667412370

Specification as stated by manufacturer. It is recommended to use in moderate performance range (approx. 1/3 to 4/5 of rated capacity). If you were to regularly work at the tool’s capacity limit, a larger model would generally be the better option.

SKU = Stock Keeping Unit. MH = Knurled Metal Handle. All specifications without guarantee, errors and omissions excepted.
