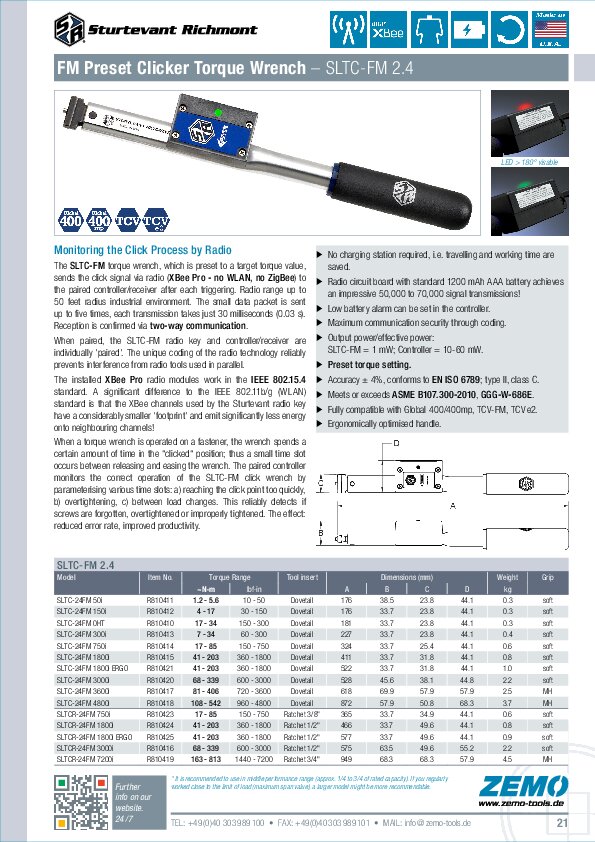

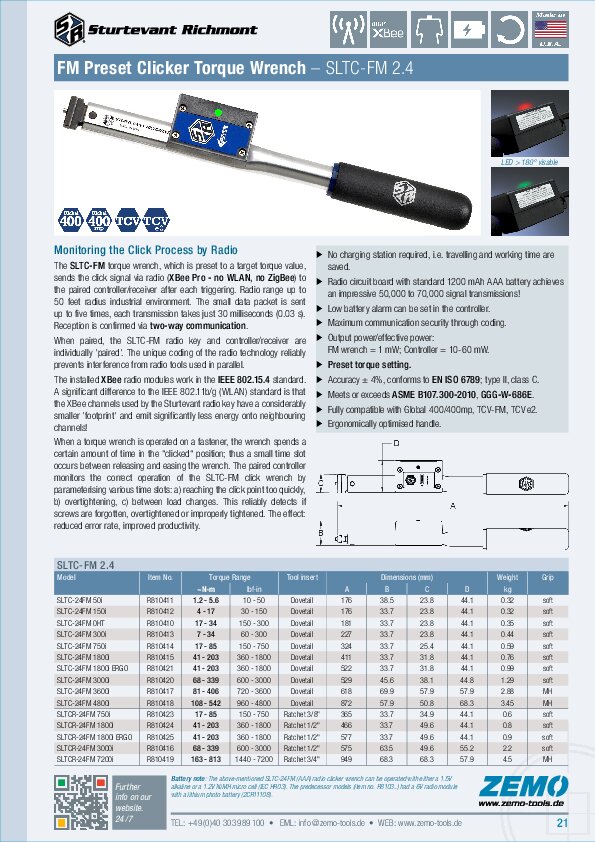

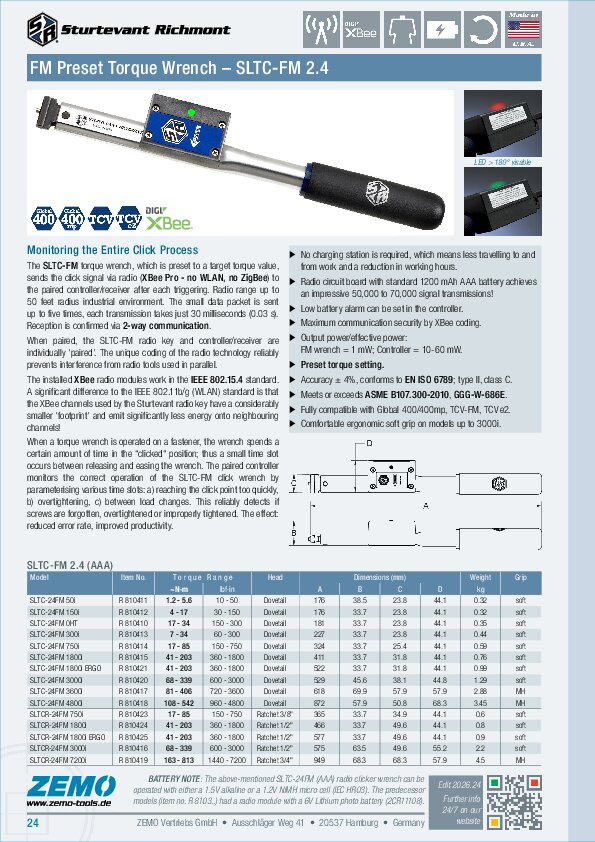

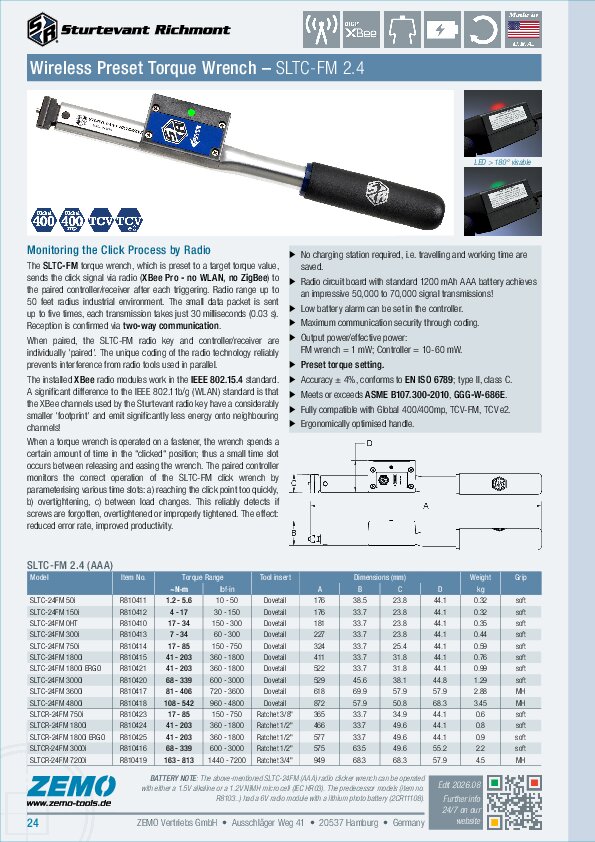

Sturtevant Richmont SLTC-FM Torque Wrench

Capacity 50 / 150 / 300 / 750 / 1800 / 3000 / 3600 / 4800 / 7200 lbf·in

FM 2.4 GHz Preset Clicker-Type Torque Wrench

Sturtevant Richmont 2.4 GHz Preset Clicker-Type Torque Wrenches incorporate the accuracy, repeatability and durability of our preset torque wrench lines that have made them a staple of assembly lines in many industries. The addition of the radio adds rapid operator and controller communication capability so they can be readily incorporated into your error-proofing approach.

When a torque wrench is operated on a fastener, the wrench spends a certain amount of time in the “clicked“ position; thus a small time slot occurs between releasing and easing the wrench. The FM Switch Wrench has a timer that measures the duration of a click (cycle) of the wrench. The tied controller (PTV/TCV/Global 8) compares the duration of the click to the programmed T-min and T-max specification limits and immediately communicates to the operator the acceptability of that use of the wrench.

Key Features

Accuracy of ± 4% of preset value from 20% to 100% of capacity meets or exceeds requirements of ASME B107.14 and ISO 6789.
Bi-directional communication on 2.4 GHz band.
FM communications at distances up to 50 feet (16 m).
Excellent audible/tactile impulse when preset torque is achieved.
Provides immediate radio communication of quality of each use to the controller, which also displays the result.
Provides immediate on-tool feedback on quality of each use through red/green LED. Green is good!
Tamper-resistant design discourages unauthorized torque setting changes
Light weight and new Cushion Grip provide superior ergonomics.

Uses the legendary SR LTC-Series Preset Interchangeable Head Torque Wrench as it's mechanical base, so you get the same incredible repeatability and durability we provide all our assembly customers. The tool's light weight and smooth vinyl grip provide excellent ergonomics and reduce the onset and level of operator fatigue. The SR Dovetail provides exceptional strength and rigidity, and accepts any of our over 140 Interchangeable Heads. Those tools featuring ratchets use the SR Slide Pin Ratchet, with it's legendary strength and maintenance simplicity.

Compatible Controllers

PTV-FM 2.4 GHz
TCV-FM 2.4 GHz
TCV Ethernet
TCV-e2
Global 8
Global 8 Ethernet
Global 100
Global 400
Global 400mp

SLTC-FM – Dovetail

Model	Item No.	Torque Range [N·m]	Torque Range [lbf·in]	Tool tang	Length [mm]	Weight [kg]	Grip
SLTC24FM 50i	R810411	1.2 - 5.6	10 - 50	Dovetail	176	0.4	Soft
SLTC24FM 150i	R810412	3.4 - 17	30 - 150	Dovetail	176	0.4	Soft
SLTC24FM 300i 0HT	R810410	17 - 34	150 - 300	Dovetail	181	0.4	Soft
SLTC24FM 300i	R810413	6.8 - 34	60 - 300	Dovetail	227	0.5	Soft
SLTC24FM 750i	R810414	17 - 85	150 - 750	Dovetail	324	0.6	Soft
SLTC24FM 1800i	R810415	40 - 200	360 - 1800	Dovetail	411	0.8	Soft
SLTC24FM 1800i ERGO	R810421	40 - 200	360 - 1800	Dovetail	522	1.0	Soft
SLTC24FM 3000i	R810420	68 - 340	600 - 3000	Dovetail	528	2.2	Soft
SLTC24FM 3600i	R810417	80 - 400	720 - 3600	Dovetail	618	2.5	MG
SLTC24FM 4800i	R810418	108 - 540	960 - 4800	Dovetail	872	3.7	MG

SLTCR-FM – Ratchet Head

Model	Item No.	Torque Range [lbf·in]	Torque Range [N·m]	SqD [inch]	Length [mm]	Weight [kg]	Grip
SLTCR24FM 750i	R810423	17 - 85	150 - 750	3/8	365	0.6	Soft
SLTCR24FM 1800i	R810424	40 - 200	360 - 1800	1/2	465	0.8	Soft
SLTCR24FM 1800i ERGO	R810425	40 - 200	360 - 1800	1/2	577	0.9	Soft
SLTCR24FM 3000i	R810416	68 - 340	600 - 3000	1/2	581	1.4	Soft
SLTCR24FM 7200i	R810419	160 - 800	1440 - 7200	3/4	949	4.5	MG

The requirements and verification procederes of the DIN EN ISO 6789 are valid for a measuring range from 20% to 100% of the rated capacity (maximum value). Usage in the medium range (approx. 1/3 to 4/5 of rated capacity) is recommended. If you would regularly work close to the load capacity limit, a larger tool may be ergonomically more advantageous.

MG = Knurled Metal Grip.

All specifications without guarantee, errors and omissions excepted.
