Sturtevant Richmont TD Digital Torque & Angle Screwdriver

Capacity 90 lbf·in // 100 ozf·in

Makes low torque value-related assemblies much more accurate

The TD Digital Torque and Angle Torque Drivers bring a new level of torque control and accuracy to your low torque applications. Torque and angle are significantly more accurate than torque alone. All torque and angle settings are set using the buttons on the torque screwdriver. P-Sets are established, edited, and saved using the keypad on the tool.

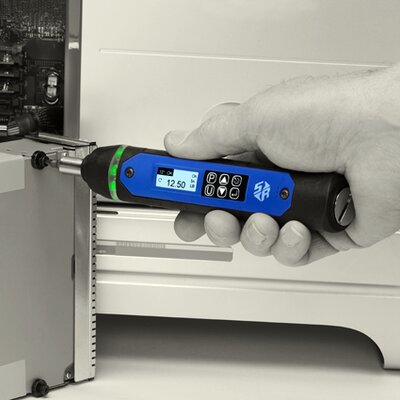

The display backlight is visible when torque is applied. Displays the torque and angle value on the digital display on the screwdriver. Visible from any angle, the light band on the driver turns yellow, then green, the driver beeps, and the handle vibrates when target torque is achieved.

Torque and angle functionality immediately notifies the operator if they are trying to tighten a fastener that has previously been tightened or is cross-threaded.

Accessing the results log in the TD is done by simply scrolling through the history log. Torque results are stored there.

Here is a quick list of features that help make your low torque applications error-free.

Key Features

Meets/exceeds ASME B107.300-2010 and ISO 6789
Bi-directional +/- 2% Indicated Value from 20% to 100% of tool capacity
ESD compliant when the grounding strap is properly worn
Powered by 1 AA NiMH rechargeable battery (1 included with tool purchase).
Battery chargers with 4 slot and 8 slot charging options are sold separately
Password protected
Units of measure: in-oz, in-lb, ft-lb, cNm, Nm, cmkg
Modes of operation: Peak, TAM, T2A, Residual, Prevailing Torque
The TD comes in two torque capacities: 80 inch-pounds and 100 inch-ounces. 1/4" Female hexagon and a 1/4" male square drive versions are available in the 80 in.lb. capacity. The 100 in.oz. version comes with the 1/4" Female hex drive.

Scope of Supply

Torque screwdriver TD
1 x NiMH rechargeable battery AA 1.2 V
Operating manual
Traceable calibration certificate ISO/IEC 17025

Options / Accs / Spares

R21258 = 4 ea NiMH rechargeable batteries
R10740 = 4 slot battery charger
R10741 = 8 slot battery charger
R10769 = L-Grip for 80 in.lb Model

Model	Item No.	Capacity [cN·m]	Capacity [lbf·in]	Capacity [ozf·in]	Hex (f) [inch]	SqD (m) [inch]	Length [mm]	Weight [kg]
TD 80	R10775	900	80	–	1/4	–	191	0.23
TDM 80	R10776	900	80	–	–	1/4	191	0.23
TD 100	R10777	70	–	100	1/4	–	191	0.23

The requirements and verification procederes of the DIN EN ISO 6789 are valid for a measuring range from 20% to 100% of the rated capacity (maximum value). The effective span of a torque tool may differently begin lower.

All specifications without guarantee, errors and omissions excepted.
