Tohnichi CDB-S Dial Indicating Torque Wrench
Capacity 7 / 14 / 25 / 50 / 100 / 200 / 300 / 420 Nm
Interchangeable Head and Dial Indicating Type Torque Wrench
Low cost torque wrench where the head can be exchanged as per the application. Wide range, high accuracy, lightweight, easy-to-read large scale, suitable for inspection. CDB-S series, and SCDB-S series have a convenient memory pointer giving peak readings.
Since the dial can be rotated, the pointer can be set to the desired torque first, and complete tightening is achieved when the pointer indicates "0". The dial indicator has a full-surround protective cover to prevent damage to external objects (except 300N, 420N).
Features CDB-S
- Oversized dial face is extremely easy to read.
- Accuracy and calibration procedures compliant to ISO 6789 type I class B.
- Bi-directional.
- Interchangeable heads connector (round style).
- Memory pointer for peak torque.
Features SCDB-S
- Similar to CDB-S series, but with rectangle head connector instead of round style.
- S.I. models only.
Scope of Supply
- Dial torque wrench
- Calibration certificate ISO6789-2017
- Operating manual
Options / Accs / Spares
- CDB-S series alternatively available in english units (lbf), models with metric scale (kgf) on request.
- Adjusting Tool #316 (torque tester required).

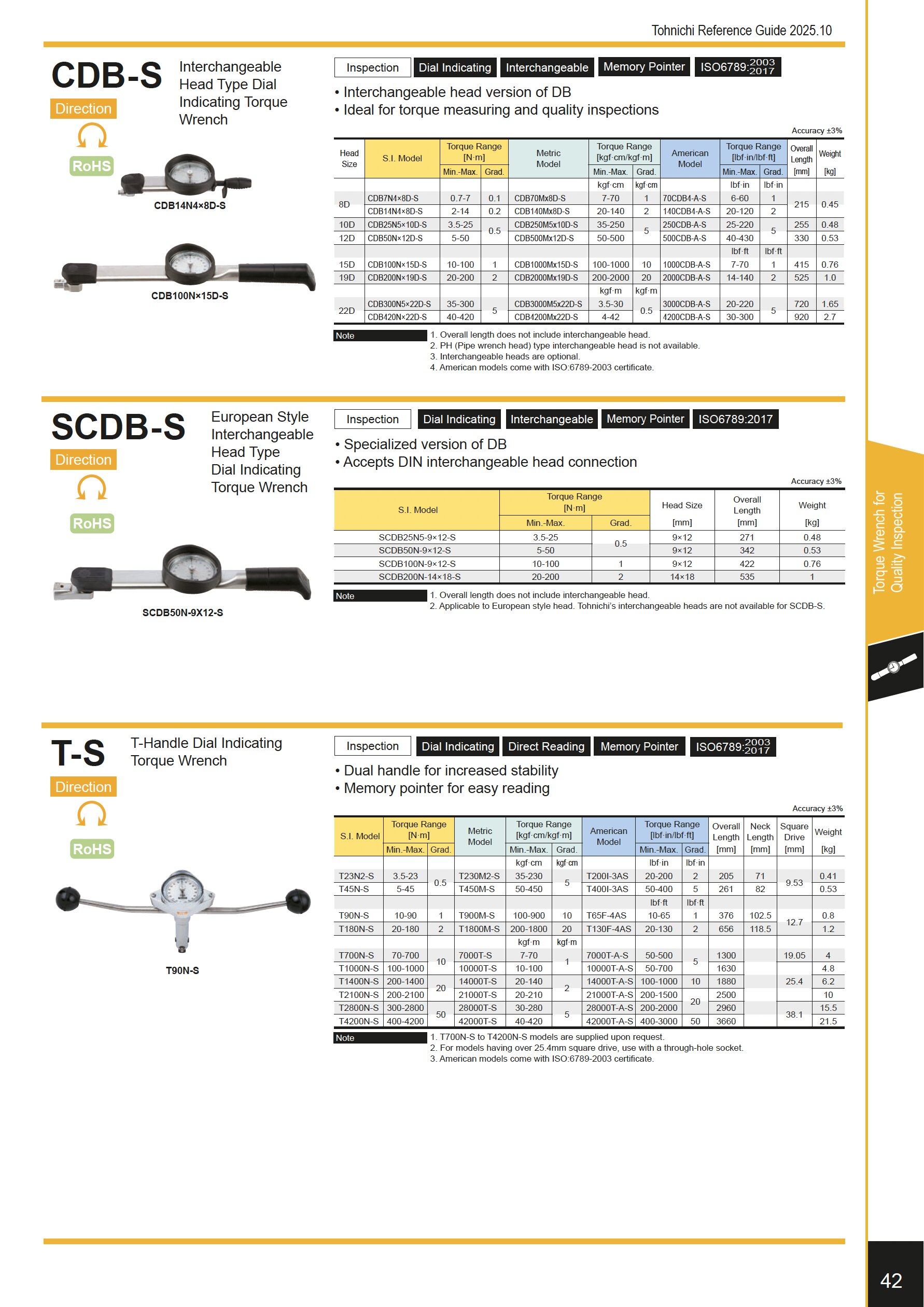

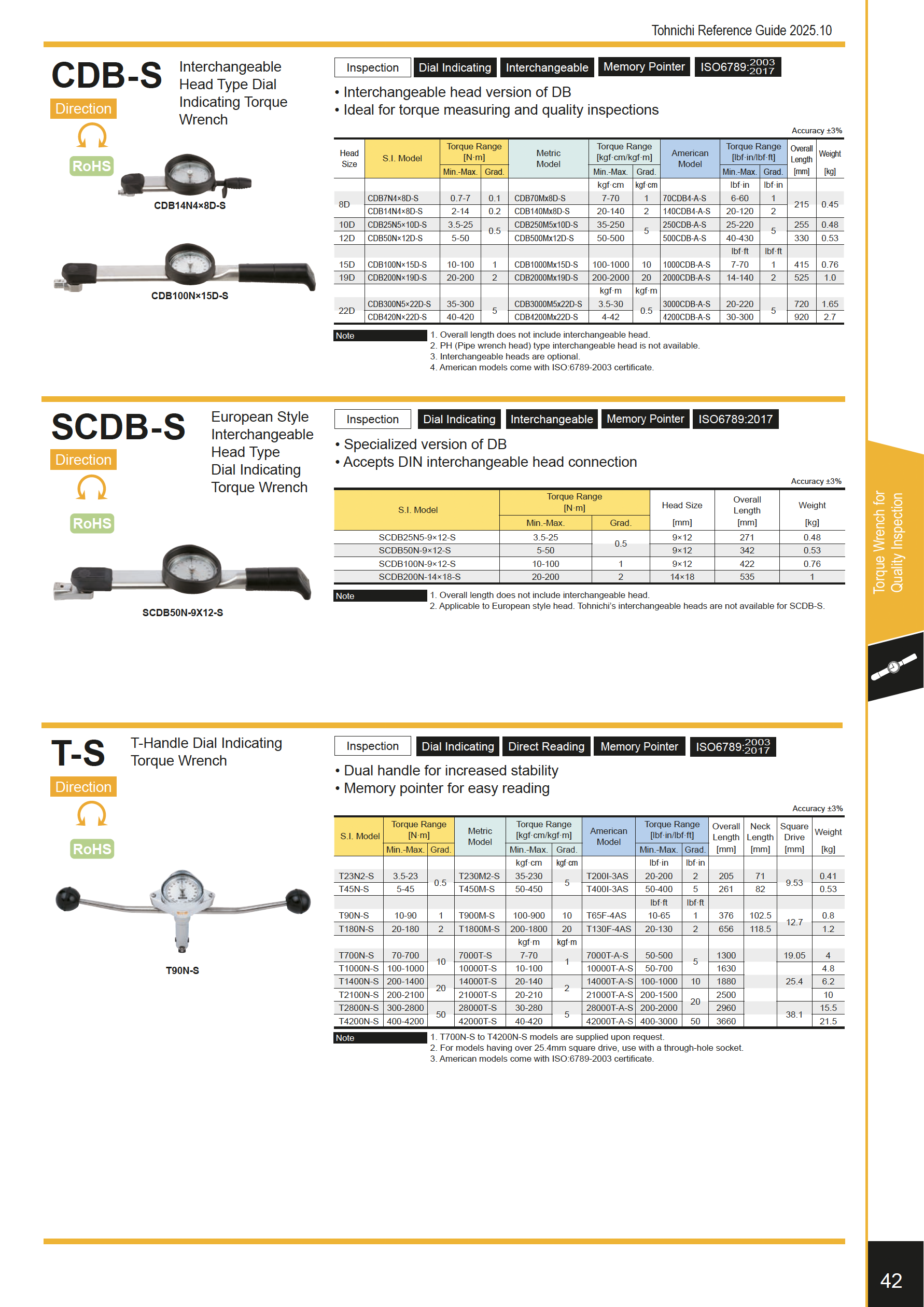

CDB-S – S.I. Model (Nm)
| Model | Item No. | Torque Range [Nm] | Graduation | Head [ø] | Length [mm] | Weight [kg] | Handle |
|---|---|---|---|---|---|---|---|
| CDB7N4X8D-S | T211175 | 0.7 - 7 | 0.1 | 8D | 215 | 0.45 | BK |
| CDB14N4X8D-S | T211178 | 2 - 14 | 0.2 | 8D | 215 | 0.45 | BK |
| CDB25NX10D-S | T211181 | 3 - 25 | 0.5 | 10D | 255 | 0.48 | BK |
| CDB50NX12D-S | T211184 | 5 - 50 | 0.5 | 12D | 330 | 0.53 | BK |
| CDB100NX15D-S | T211187 | 10 - 100 | 1 | 15D | 415 | 0.76 | BK |
| CDB200NX19D-S | T211190 | 20 - 200 | 2 | 19D | 525 | 1.0 | BK |
| CDB300NX22D-S | T211193 | 30 - 300 | 5 | 22D | 720 | 1.65 | MH |
| CDB420NX22D-S | T211196 | 40 - 420 | 5 | 22D | 920 | 2.7 | MH |
SCDB-S – S.I. Model (Nm)
| Model | Item No. | Torque Range [N·m] | Graduation | Head [mm] | Length [mm] | Weight [kg] | Handle |
|---|---|---|---|---|---|---|---|
| SCDB25N5-9x12-S | T211201 | 3.5 - 25 | 0.5 | 9x12 | 271 | 0.48 | BK |
| SCDB50N-9x12-S | T211202 | 5 - 50 | 0.5 | 9x12 | 342 | 0.53 | BK |
| SCDB100N-9x12-S | T211203 | 10 - 100 | 1 | 9x12 | 422 | 0.76 | BK |
| SCDB200N-14x18-S | T211204 | 20 - 200 | 2 | 14x18 | 535 | 1.0 | BK |
Data according to specifications by the manufacturer. It is recommended to primarily use in moderate performance range (approx. 1/3 to 4/5 of rated capacity). If you regularly worked close to the limit of load (max capacity), a larger model or tool might be more advisable.
SI unit products and metric unit products are compliant with ISO 6789:2017 starting January 2022. Model names for some products and Calibration Certificates will be different from older products. American unit products are not compliant with ISO 6789:2017.
Handle: 'BK' = black resin grip, 'MH' = knurled metal handle. Length/weight without head attached.
All stated data without guarantee. Errors and omissions excepted.
