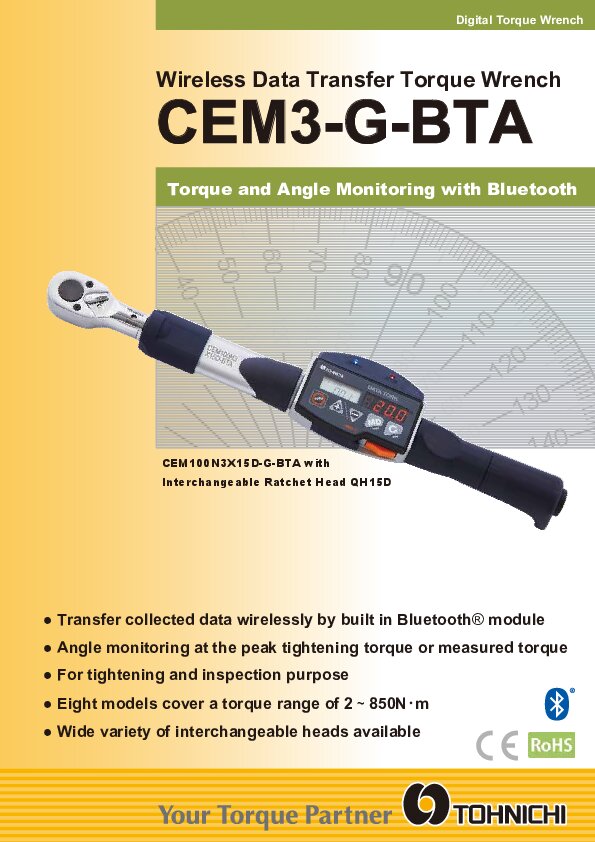

Tohnichi CEM3-G-BTA Digital Torque & Angle Wrench

Capacity 10 / 20 / 50 / 100 / 200 / 360 / 500 / 850 Nm

Wireless Data Transfer Torque & Angle Wrench

Industrial grade digital torque wrench with angle measurement function. Also able to detect double tightening and “bite”. Provides Pass/Fail judgements of tightening torque and final angle, once you set threshold values. Built-in Bluetooth® module makes data collection easy.

Applications

Tightening tasks requiring torque and angle control.
Detects two rounds of tightening to prevent this human error (Pokayoke).
Detects increased torque due to insufficient rotations from “biting (seizure)” during tightening.
Tightening Torque Data Management.
Detects tightening abnormalities such as “forgetting assembly of spring washer”.

Features

Records in memory and outputs torque and angle at final tightening.
Capable of performing Pass/Fail judgements of tightening torque and angle.
You can set torque and angle required for Pass/Fail judgements.
Uses torque and angle values to detect double tightening (Pokayoke error-proofing system).
Built-in Bluetooth® module to transmit data wirelessly.
Capable of managing both wired and wireless (Bluetooth®) tightening data.

Specifications

Torque Accurcy: ± 1% i.v.
Angle Accuracy: ± 2° + 1 digit (angular speed 30°/s ... 180°/s when turning the screw by 90°)
Bluetooth: 3.0
Radio range: approx. 10 m
Hardwire comms: RS232C / USB
Power: NiMH rechargeable battery
Use duration: approx. 8 hrs
Recharge time: approx. 3.5 hrs
Operating temp: 0-40℃ below 85％ RH (no condensation)

Options / Accs / Spares

T289002 = Battery pack #BP-5
T289103 = Quick battery charger #BC-3-G
Ratchet head protection cover (misc)
T286900 = Tightening Data Management System TDMS/TDMSHT (engl.), upgraded to Version 3.00 in April 2020, for compatibility with CEM3-G-BTA with standard specifications.
Use Excel® on your computer to manage data received via DtRcv (Data Receiver) software tool. Free download from Tohnichi website.

Notes

As of June 2021, the CEM3-G-BTA series conforms to wireless technical standards in Japan, the U.S., Canada, the EU, China, Thailand, Mexico, Vietnam, Taiwan, Singapore, South Africa, Indonesia, Malaysia, Russia, and India.
This product is custom manufactured after order is placed. For further details, please contact our sales department.

CEM3-G-BTA

Model	Item No.	Torque Range [N·m]	Torque Range [lbf·in]	Torque Range [lbf·ft]	Length [mm] *	Weight [kg] *	Handle *
CEM10N3X8D-G-BTA	T211020-BTA	2 - 10	20 - 90	–	212	0.54	Resin
CEM20N3X10D-G-BTA	T211021-BTA	4 - 20	36 - 180	3 - 14.5	214	0.55	Resin
CEM50N3X12D-G-BTA	T211022-BTA	10 - 50	100 - 440	7.5 - 36	282	0.66	Resin
CEM100N3X15D-G-BTA	T211023-BTA	20 - 100	200 - 880	15 - 73	384	0.71	Resin
CEM200N3X19D-G-BTA	T211024-BTA	40 - 200	360 - 1700	30 - 150	475	0.86	Resin
CEM360N3X22D-G-BTA	T211025-BTA	72 - 360	650 - 3100	52 - 260	713	1.21	Resin
CEM500N3X22D-G-BTA	T211026-BTA	100 - 500	890 - 4400	73 - 360	949	4.08	MH
CEM850N3X32D-G-BTA	T211027-BTA	170 - 850	–	124 - 620	1387	5.22	MH

* Length/weight does not include interchangeable head. MH = Metal handle.

Data according to specifications by the manufacturer. It is recommended to primarily use in moderate performance range (approx. 1/3 to 4/5 of rated capacity). If you regularly worked close to the limit of load (max capacity), a larger model or tool might be more advisable.

All technical data without guarantee, errors and omissions excepted.

Bluetooth® is a registered trademark of Bluetooth SIG, Inc. Excel® is a registered trademark of Microsoft Corp.
