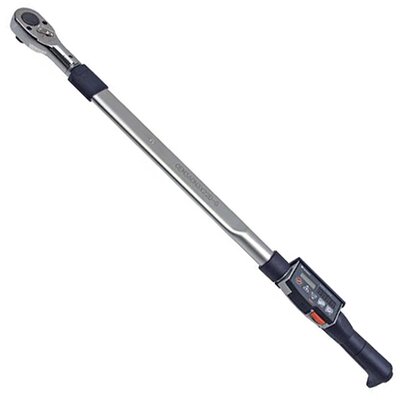

Tohnichi CEM360N3-G

Tohnichi CEM20N3-G

Tohnichi CEM100N3-G-BTS (Bluetooth version)

Tohnichi CEM100N3-G-WF (WiFi version)

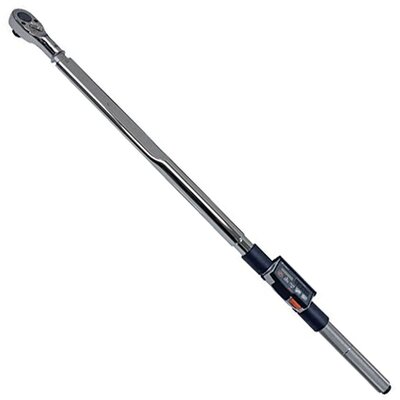

Tohnichi CEM500N3

Video

Downloads

Tohnichi CEM3-G Digital Torque Wrench

Capacity 10 / 20 / 50 / 100 / 200 / 360 / 500 / 850 Nm

Standard Digital Torque Wrench for Inspection or Tightening

Industrial grade digital torque wrench for inspecting tightened bolts and for tightening: Measuring Mode for quality inspections of already tightened fasteners or Tightening Mode for applying torque. Improved visibility with the dual displays of LCD and LED. The LCD screen is viewable under the direct light, while the LED screen is vivid in dark places. Saved data can be output through the USB port.

Features

Dual display – LED and LCD.
Easily select unit of measure by keypad.
Setup menu selection: Measuring/Tightening Mode, Unit of Measure, Clock, Date, Data Output, Baud Rate, Hi/Lo Judgements, Buzzer, Auto-reset the timer.
Supplied with interchangeable ratcheting square drive head.
Data memory capacity with torque value, time/date stamp, and count.
Export data with cable (sold separately #584).
With CE mark. For international use including the EU region.
Compliant with calibration procedures of ISO 6789 Type I Class C.

Specifications

Torque Accurcy: ± 1% i.v.
Data memory: 999 readings (M-2 mode: 99 data), except version "-BTD" (no memory)
Serial comms: RS232C / USB
Power: NiMH rechargeable battery
Use duration: approx. 20 hrs fully charged (wireless approx. 8 hrs)
Recharge time: approx. 3.5 hrs
Operating temp: 0-40℃ below 85％ RH (no condensation)

Scope of Supply

Torque Wrench CEM3
Ratchet head QH
Battery pack BP-5 (NiMH)
Quick charger BC-3-G
Operating manual
Traceable certificate of calibration (S.I. units)

Options / Accs / Spares

Ratchet head protection cover (misc)
USB cable #584. Included with cable purchase is DtRcv software that allows data to be transferred into an Excel® spreadsheet. (Note: Excel® is a registered trademark of the Microsoft Corporation).

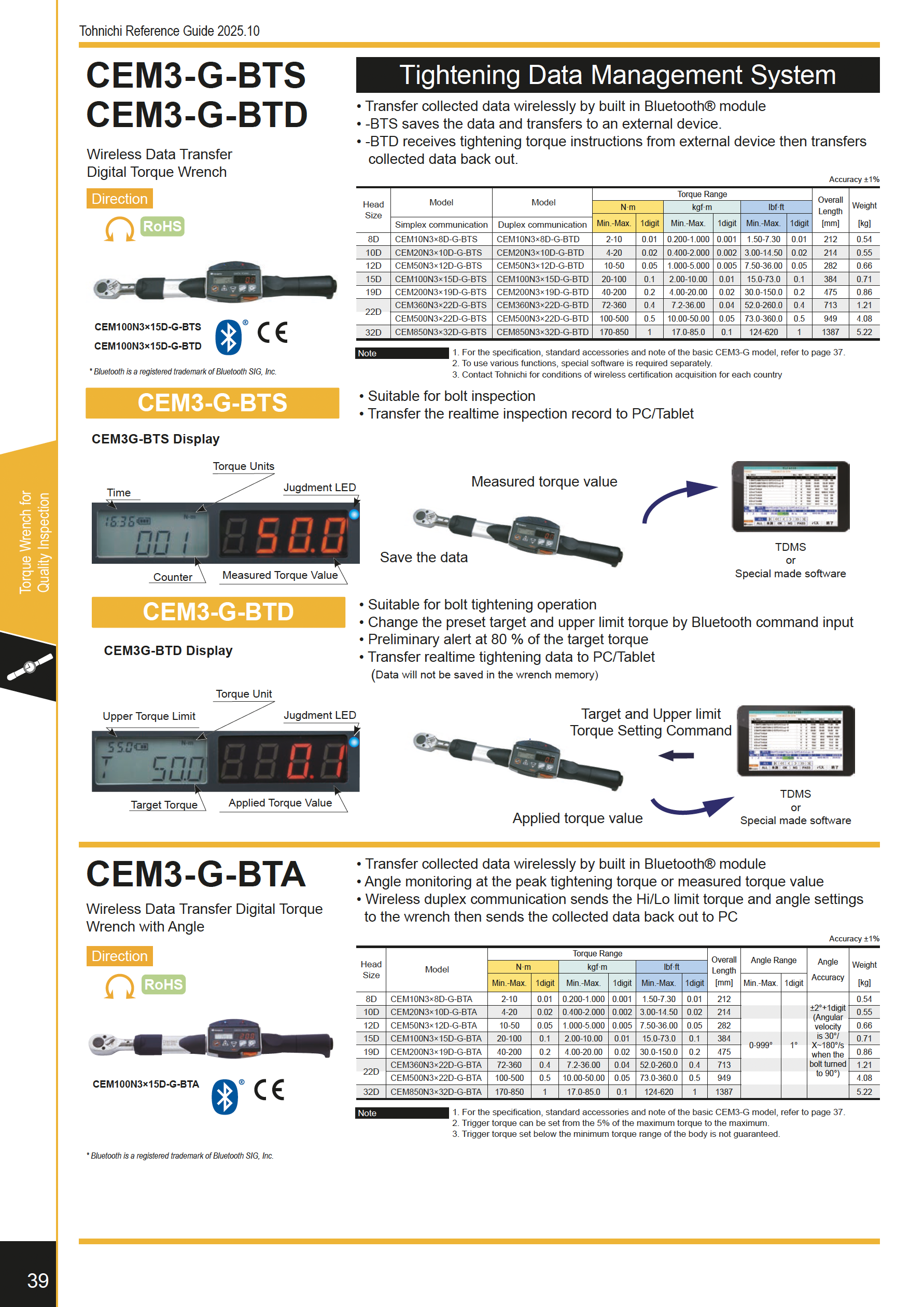

Bluetooth Series CEM3-G-BT

Digital torque wrench with wireless data transfer via Bluetooth® (Ver. 3.0).
Communication distance approx. 10 m.
Divides into simplex communication models "-BTS" and duplex communication models "-BTD":
- BTS model: Actually a wireless data transmission version of CEM3-G. Provides function to save the inspected data into the tool and send it to an external device by wireless.
- BTD model: The torque to be judged can be configured wirelessly, allowing you to consolidate several preset torque wrenches into a single unit. The measurement data from the "-BTD" model can be sent wirelessly to an external device as necessary.
As of June 2021, conform to wireless technical standards in Canada, China, EU, India, Indonesia, Japan, Malaysia, Mexico, Russia, Singapore, South Africa, South Korea, Taiwan, Thailand, the U.S., and Vietnam.

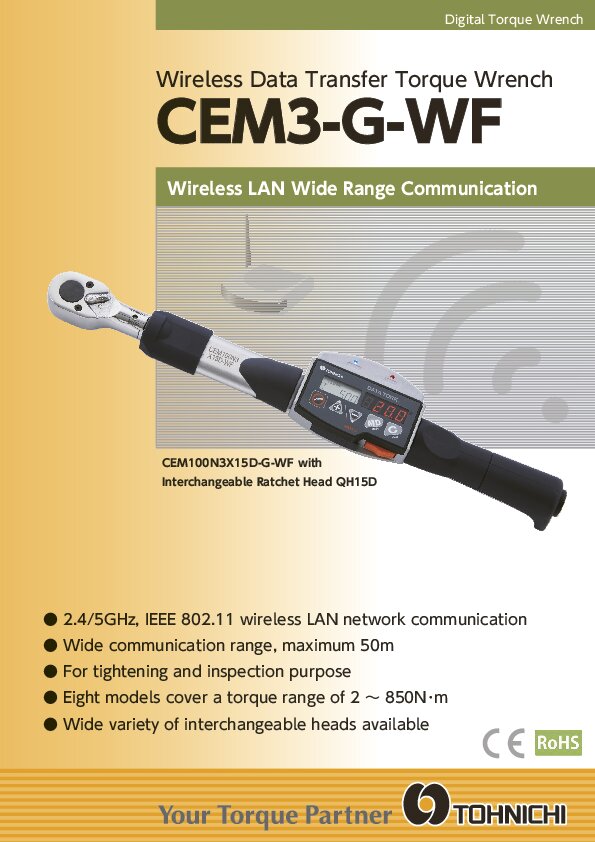

WiFi Series CEM3-G-WF

Digital torque wrench with Wireless-LAN communication functionality.
Connect to a network or directly to your device using IEEE 802.11a/b/g/n 2.4 or 5 GHz 'WiFi'.
Wide-range communication, approx. 50 m.
As of January 2020, certified compliant for wireless use in Canada (IC), China (SRRC), Japan (TELEC), Thailand (NTC), and the U.S. (FCC).
Note: CEM3-G-WF is custom manufactured after order is placed. For further details, please contact our sales department.

CEM3-G

Model	Item No.	Tq Range [N·m]	Tq Range [lbf·in]	Tq Range [lbf·ft]	Length [mm] *	Weight [kg] *	Handle *
CEM10N3X8D-G	T211020	2.0 - 10	20 - 90	1.5 - 7.3	212	0.46	Resin
CEM20N3X10D-G	T211021	4.0 - 20	36 - 180	3.0 - 14.5	214	0.47	Resin
CEM50N3X12D-G	T211022	10 - 50	100 - 440	7.5 - 36	282	0.58	Resin
CEM100N3X15D-G	T211023	20 - 100	200 - 880	15 - 73	384	0.63	Resin
CEM200N3X19D-G	T211024	40 - 200	360 - 1700	30 - 150	475	0.78	Resin
CEM360N3X22D-G	T211025	72 - 360	650 - 3100	52 - 260	713	1.13	Resin
CEM500N3X22D-G	T211026	100 - 500	890 - 4400	73 - 360	949	4.00	MH
CEM850N3X32D-G	T211027	170 - 850	–	124 - 620	1387	5.14	MH

CEM3-G-BT

Model (either/or)	Item No. (either/or)	Tq Range [N·m]	Tq Range [lbf·in]	Tq Range [lbf·ft]	Length [mm] *	Weight [kg] *	Handle *
CEM10N3X8D-G-BTS / -BTD	T211020-BTS / -BTD	2 - 10	20 - 90	1.5 - 7.3	212	0.54	Resin
CEM20N3X10D-G-BTS / -BTD	T211021-BTS / -BTD	4 - 20	36 - 180	3.0 - 14.5	214	0.55	Resin
CEM50N3X12D-G-BTS / -BTD	T211022-BTS / -BTD	10 - 50	100 - 440	7.5 - 36	282	0.66	Resin
CEM100N3X15D-G-BTS / -BTD	T211023-BTS / -BTD	20 - 100	200 - 880	15 - 73	384	0.71	Resin
CEM200N3X19D-G-BTS / -BTD	T211024-BTS / -BTD	40 - 200	360 - 1700	30 - 150	475	0.86	Resin
CEM360N3X22D-G-BTS / -BTD	T211025-BTS / -BTD	72 - 360	650 - 3100	52 - 260	713	1.21	Resin
CEM500N3X22D-G-BTS / -BTD	T211026-BTS / -BTD	100 - 500	890 - 4400	73 - 360	949	4.08	MH
CEM850N3X32D-G-BTS / -BTD	T211027-BTS / -BTD	170 - 850	–	124 - 620	1387	5.22	MH

Model name ending by BTS = simplex communication / by BTD = duplex communication.

CEM3-G-WF

Model	Item No.	Tq Range [N·m]	Tq Range [lbf·in]	Tq Range [lbf·ft]	Length [mm] *	Weight [kg] *	Handle *
CEM10N3X8D-G-WF	T211020-WF	2 - 10	20 - 90	1.5 - 7.3	212	0.54	Resin
CEM20N3X10D-G-WF	T211021-WF	4 - 20	36 - 180	3.0 - 14.5	214	0.55	Resin
CEM50N3X12D-G-WF	T211022-WF	10 - 50	100 - 440	7.5 - 36	282	0.66	Resin
CEM100N3X15D-G-WF	T211023-WF	20 - 100	200 - 880	15 - 73	384	0.71	Resin
CEM200N3X19D-G-WF	T211024-WF	40 - 200	360 - 1700	30 - 150	475	0.86	Resin
CEM360N3X22D-G-WF	T211025-WF	72 - 360	650 - 3100	52 - 260	713	1.21	Resin
CEM500N3X22D-G-WF	T211026-WF	100 - 500	890 - 4400	73 - 360	949	4.08	MH
CEM850N3X32D-G-WF	T211027-WF	170 - 850	–	124 - 620	1387	5.22	MH

* Length/weight does not include interchangeable head. MH = Metal handle.

Data according to specifications by the manufacturer. It is recommended to primarily use in moderate performance range (approx. 1/3 to 4/5 of rated capacity). If you regularly worked close to the limit of load (max capacity), a larger model or tool might be more advisable.

All technical data without guarantee, errors and omissions excepted.

Bluetooth® is registered trademark of Bluetooth SIG, Inc. Excel® is a registered trademark of Microsoft Corp.
