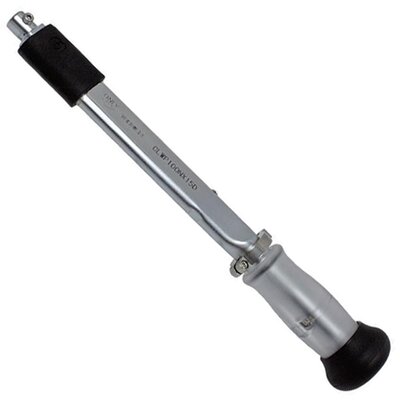

Tohnichi CLWP Pre-Lock WaterProof Torque Wrench

Capacity 15 / 25 / 50 / 100 / 140 / 200 Nm

Pre-Lock Adjustable WaterProof Torque Wrench



Waterproof torque wrench with anti-corrosion coating that can be washed with water even when dirty. Prevents dust and water from entering the inside of the torque wrench which reduces accuracy deterioration.

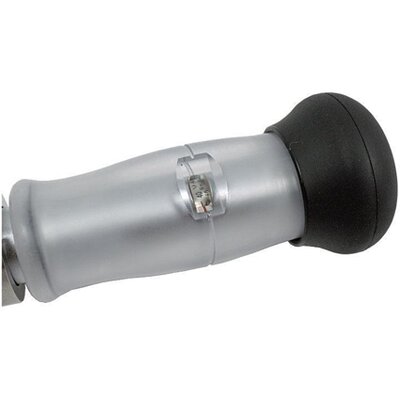

The CLWP is a pre-lock type wrench with torque scale. The torque setting can be changed using a commercially available flathead screwdriver. Adjustment screw located behind a removable rubber cover.



Features



  • Waterproof and dust protection rated to class IP55 / IP57.
  • High corrosion resistance surface treatment allows the wrench to be cleaned with water after use.
  • Includes a connection ring, where a wire can be attached to prevent the tool from being dropped.
  • Interchangeable head type. A variety of heads are available and sold separately.

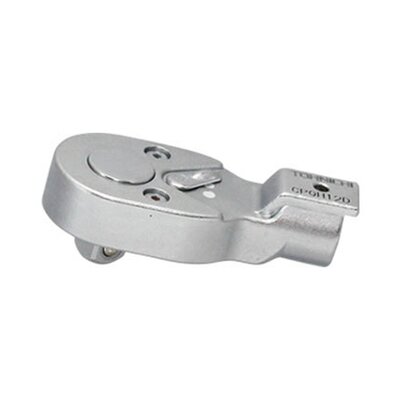

  • CPQH Corrosion-Proof ratchet head is designed especially for use with CLWP.
  • Accuracy ± 4%.



Important Note



  • Cannot be used underwater.






Options / Accs / Spares



  • CPQH10D – corrosion-proof ratchet head 3/8 inch sqd (centerline 44 mm, weight 0.10 kg)
  • CPQH12D – corrosion-proof ratchet head 3/8 inch sqd (centerline 53 mm, weight 0.19 kg)
  • CPQH15D – corrosion-proof ratchet head 1/2 inch sqd (centerline 63 mm, weight 0.30 kg)
  • CPQH19D – corrosion-proof ratchet head 1/2 inch sqd (centerline 80 mm, weight 0.45 kg)






More info to come soon. Stay tuned...

CLWP – S.I. Model (Nm)
Model Item No. Torque Range [Nm) Graduation Head [ø] Length [mm] Weight [kg]
CLWP15NX10D ◻︎ 5 - 15 0.25 10D 221 0.3
CLWP25NX10D ◻︎ 10 - 25 0.25 10D 221 0.3
CLWP50NX12D ◻︎ 20 - 50 0.5 12D 243 0.5
CLWP100NX15D ◻︎ 40 - 100 1.0 15D 334 0.7
CLWP140NX15D ◻︎ 60 - 140 1.0 15D 379 0.8
CLWP200NX19D ◻︎ 80 - 200 2.0 19D 458 1.4

Length/weight without head installed.



Data according to specifications by the manufacturer. It is recommended to primarily use in moderate performance range (approx. 1/3 to 4/5 of rated capacity). If you regularly worked close to the limit of load (max capacity), a larger model or tool might be more advisable.



SI unit products and metric unit products are compliant with ISO 6789:2017 starting January 2022. Calibration Certificates will be different from older products. Imperial unit products are not compliant with ISO 6789:2017.



All technical data without guarantee, errors and omissions excepted.
