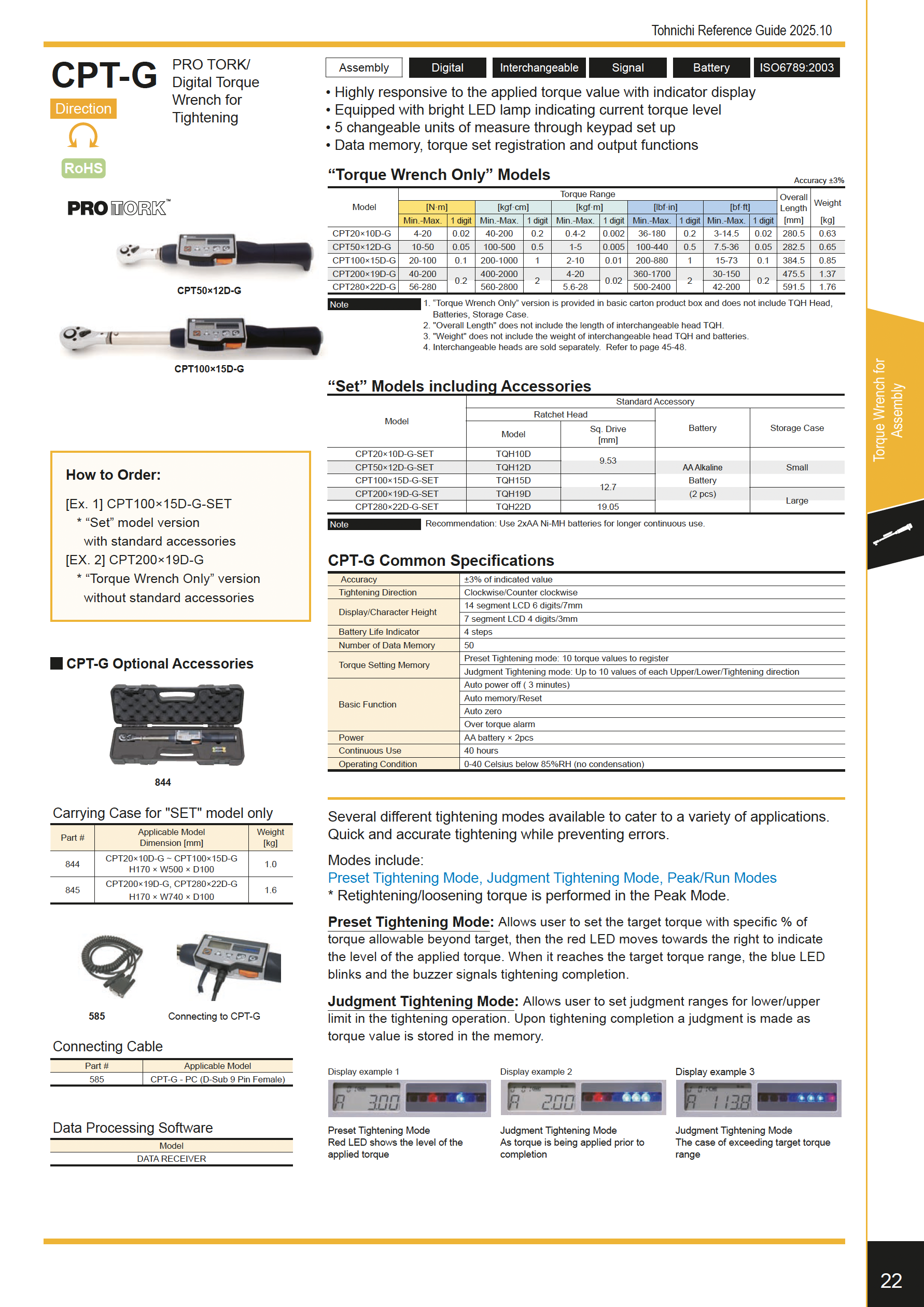

Basic Digital Torque Wrench for Tightening
The CPT-G series entry models are designed for tightening applications for both CW and CCW direction. LED lights provide easy tracking of the tightening condition as it approaches your target tightening torque. Saved data can be output through USB cable (sold separately).
Powered by 2x AA battery for approx. 40 hours of continuous use. Auto Power Off. Data memory, torque set registration, and output functions. Intuitive machine interface, bright LED lamp indicates the current torque level against the target torque. Equipped with robust and durable aluminum body.
Features
- Modes: Preset Tightening Mode (set % of target torque), Judgement Tightening Mode (Set lower/upper limits).
- Display: Peak / Run value.
- 5 units of measure selection: Nm, kgf·cm, kgf·m, lbf·in, lbf·ft.
- Compliant with calibration procedures of ISO 6789 Type I Class C.
- With CE mark. Applicable for international use including the EU region.
- RoHS Compliant.
Specifications
- Accuracy ±3% of indicated value
- LC Display: 14 segment 6 digits, 7 segment 4 digits, battery indicator 4 steps
- Memory: 50 readings
- Preset Mode: 10 target values
- Judge Mode: upper/lower limit, tightening direction (10 values each)
- Communications: RS232C compliant
- Power: 2x AA alkaline battery
- Usage: appr. 40 hrs
- Operating temp: 0 - 40°C (no condensation)
Scope of Supply
- CPT-G-SET with special ratchet head TQH
- Rugged plastic case
- 2x AA batteries
- Operating manual
- Traceable calibration certificate (JCSS)
Options / Accs / Spares
- USB cable #585 for data export.
- DtRcv (data receiver) software is a data input tool for Excel® data management. It can be downloaded for free. Note: Excel® is a registered trademark of the Microsoft Corporation.
Notes
- The CPT alone (models without -SET) does not include the ratchet head TQH, batteries, or plastic case.
- The ratchet head TQH is not sold separately.
