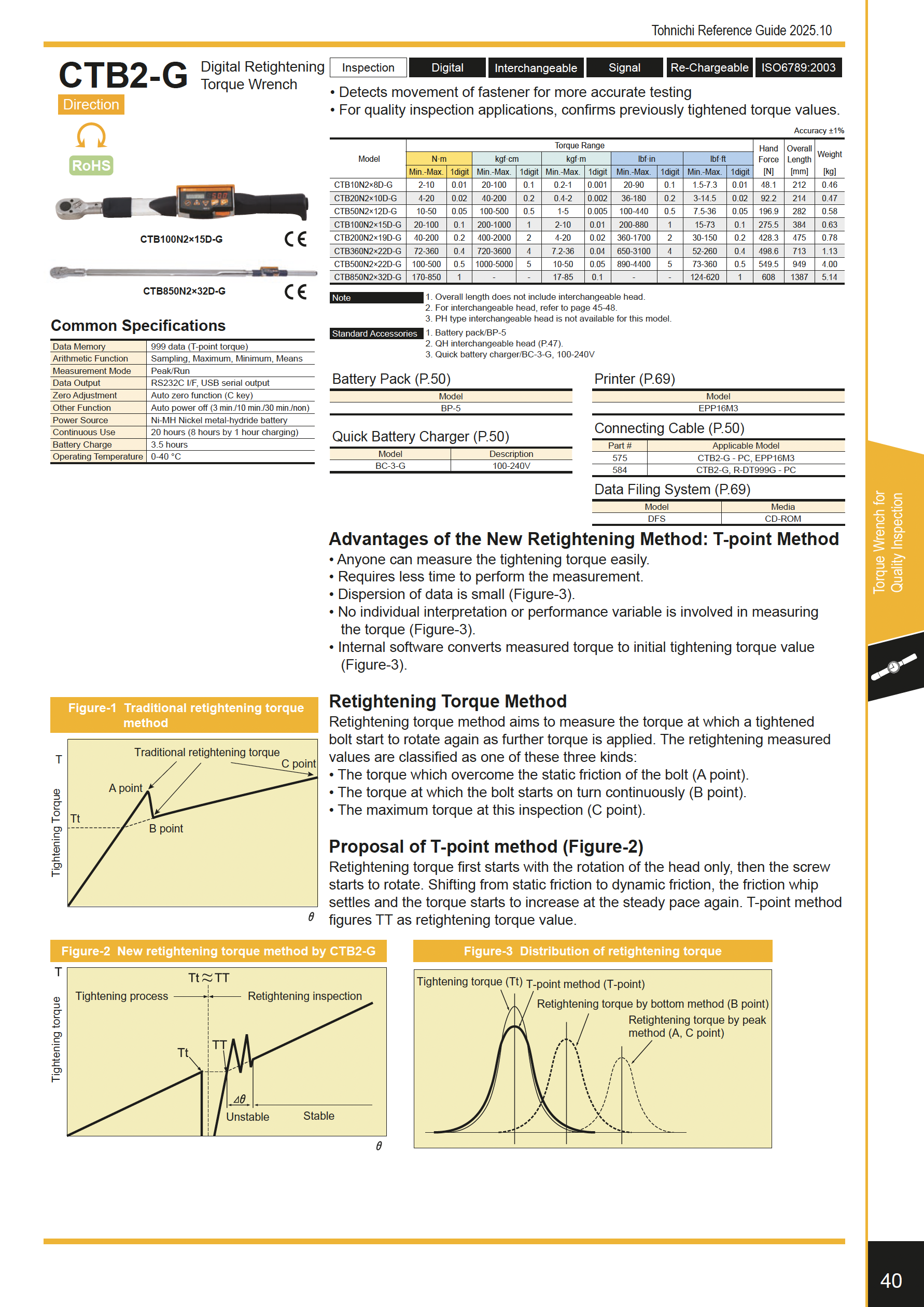

Tohnichi CTB2-G Digital Retightening Torque Wrench

Capacity 10 / 20 / 50 / 100 / 200 / 360 / 500 / 850 Nm

For Re-Tightening Inspection of Tightened Bolts



The CTB2-G is suitable for quality inspection using the retightening torque test method. It detects the original tightened torque applied on the bolt by re-tightening inspection.



Uses Tohnichi’s own new re-tightening torque measurement algorithm (T-point method). Detection sensors and software provide a final torque value that is very close to the original applied torque.



Internal memory saves up to 999 readings, which can be downloaded via RS232C. Interchangeable head allows for use in a variety of applications. Applicable for international use including the EU region.



Basic Functions



  • Meas. Mode: Peak Hold (Re-Tighten)
  • Data Memory with date and time
  • Auto Memory & Resetting
  • Tightening Completion Buzzer
  • Judgement of Measured Data
  • Auto Zero setting
  • Auto power off( 3 min )



Specifications



  • Accuracy: ±1%
  • Display: 7 segments LED 4 digits 10 mm / 14 segments LCD 6 digits 7 mm
  • Battery life indicator (4 steps)
  • Judgement LED red/blue
  • Serial output RS232C
  • Ni-MH rechargeable battery
    - approx. 20 h cont. use with fully charged
    - recharge time approx. 3.5 hrs
  • Operation temp: 0-40°C, no condensation



Scope of Supply



  • Digital torque wrench CTB2
  • User manual
  • Traceable calibration certificate (JCSS)
  • Ratchet head QH (size depends on model)
  • Battery pack #BP-5
  • Quick battery charger #BC-3-G






Options



  • Protocol printer #EPP16M3
  • Printer cable 9-pin D-Sub #575
  • Those Models optionally equipped with Bluetooth (R) can be custom-modified when ordered. Note: Bluetooth (R) is registered trademark of Bluetooth SIG, Inc.
  • Using the "TDMS / TDMSHT" (Ver. 2.00) that go on sale in March 2017, the CTB2-BT / CTB2-G-BT can build a system for managing tightening data.
  • DtRcv (Data Receiver) is a wired data input tool facilitating Excel® data management, and can be downloaded without charge. Note: Excel® is a registered trademark of Microsoft Corp.
CTB2-G
Model Item No. Torque Range [N·m] Torque Range [lbf·in] Torque Range [lbf·ft] Length [mm] * Weight [kg] * Handle *
CTB10N2X8D-G T211070 2 - 10 20 - 90 212 0.46 Resin
CTB20N2X10D-G T211071 4 - 20 36 - 180 3 - 14.5 214 0.47 Resin
CTB50N2X12D-G T211072 10 - 50 100 - 440 7.5 - 36 282 0.58 Resin
CTB100N2X15D-G T211073 20 - 100 200 - 880 15 - 73 384 0.63 Resin
CTB200N2X19D-G T211074 40 - 200 360 - 1700 30 - 150 475 0.78 Resin
CTB360N2X22D-G T211075 72 - 360 650 - 3100 52 - 260 713 1.13 Resin
CTB500N2X22D-G T211076 100 - 500 890 - 4400 73 - 360 949 4.00 MH
CTB850N2X32D-G T211077 170 - 850 124 - 620 1387 5.14 MH

* Length/weight does not include interchangeable head. MH = Metal handle.



Table is showing the torque ranges specified by manufacturer. Usage in the medium range (approx. 1/3 to 4/5 of rated capacity) is recommended. If you would mainly work close to the load capacity limit, in general a larger tool may be more recommendable.



All technical data without guarantee, errors and omissions excepted.
