Tohnichi NTD Preset Torque Screwdriver

Capacity 15 / 30 / 60 / 120 / 260 / 500 / 1000 cNm

Click-Type Screwdriver for Assembly

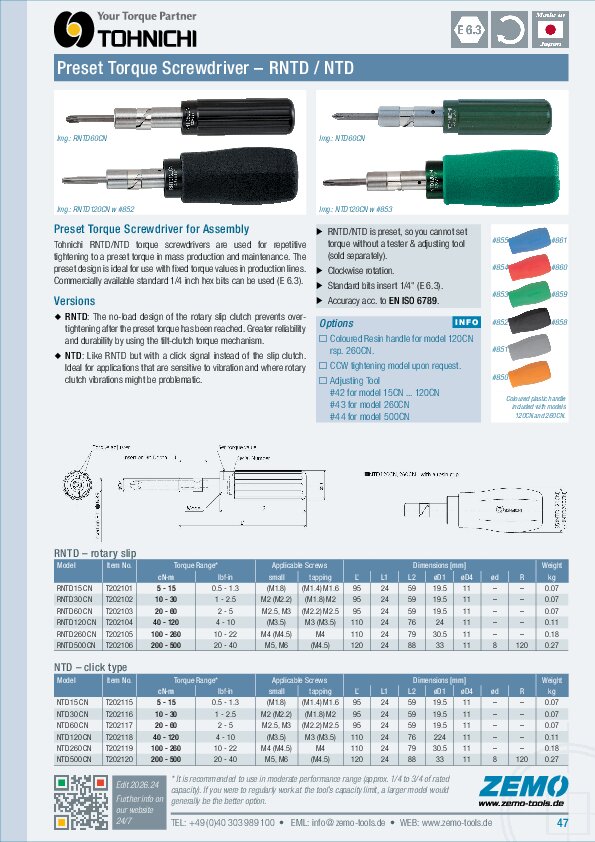

Tohnichi NTD torque screwdrivers are used for repetitive tightening to a preset torque in mass production and maintenance. The preset design is ideal for use with fixed torque values in production lines. Commercially available standard 1/4 inch hex bits can be used (E 6.3).

Like RNTD but with a click signal instead of the slip clutch. Ideal for applications that are sensitive to vibration and where rotary clutch vibrations might be problematic.

Key Features

Accuracy acc. EN ISO 6789 type II class C
Clockwise rotation
Click signal
Standard bit insert E 6.3 (1/4 inch)

Scope of Supply

Torque Screwdriver NTD
Resin grip for model 120CN and 260CN
NTD500CN and NTD1000CN come with an auxiliary T-handle
Original operating instructions (jap./eng.)

Options / Accs / Spares

Insert bits 6.35 mm (1/4 inch) hex drive
NTD is preset, so you cannot adjust the torque without a tester. If you prefer a torque setting before delivery, please specify the torque value when ordering (e.g. NTD60CNX45CNM). Ex-works torque adjustment before delivery is free of charge.

Coloured resin grip for model 120CN
#850 = orange
#851 = grey
#852 = black
#853 = green
#854 = red
#855 = blue

Coloured resin grip for model 260CN
#858 = black
#859 = green
#860 = red
#861 = blue

Adjusting Tool
#42 = for model 15CN...120CN
#43 = for model 260CN
#44 = for model 500CN

NTD

Model	Item No.	Torque Range [cN·m]	Torque Range [kgf·cm]	Torque Range [lbf·in]	Handle Ø [mm]	Length [mm]	Weight [kg]
NTD15CN	T202115	5 - 15	0.5 - 1.5	0.5 - 1.3	19.5	95	0.07
NTD30CN	T202116	10 - 30	1 - 3	0.9 - 2.6	19.5	95	0.07
NTD60CN	T202117	20 - 60	2 - 6	1.8 - 5.3	19.5	95	0.07
NTD120CN	T202118	40 - 120	4 - 12	3.5 - 10	24	110	0.11
NTD260CN	T202119	100 - 260	10 - 26	9 - 23	30.5	110	0.18
NTD500CN	T202120	200 - 500	20 - 51	18 - 44	33	120	0.27
NTD1000CN	T202121	400 - 1000	40 - 102	35 - 88	43	155	0.55

Data according to specifications by the manufacturer. It is recommended to primarily use in moderate performance range (approx. 1/3 to 4/5 of rated capacity). If you regularly worked close to the limit of load (max capacity), a larger model or tool might be more advisable.

Note: Model 120CN and 260CN come with resin handle, models 500CN and 1000CN come with an aux handle.

Conversion help:

1 cN·m = 1.4161193 ozf·in
1 cN·m = 0.088507458 lbf·in
1 cN·m = 0.10197162 kgf·cm

Further conversion factors can be found on the FAQ page (see main navigation at the top).

All technical data without guarantee, errors and omissions excepted.
