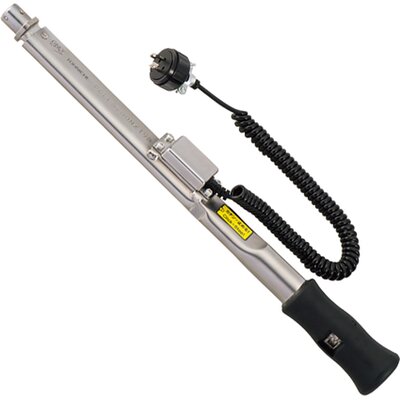

Alternative: PCLLS Hardwired Torque Wrench

Downloads

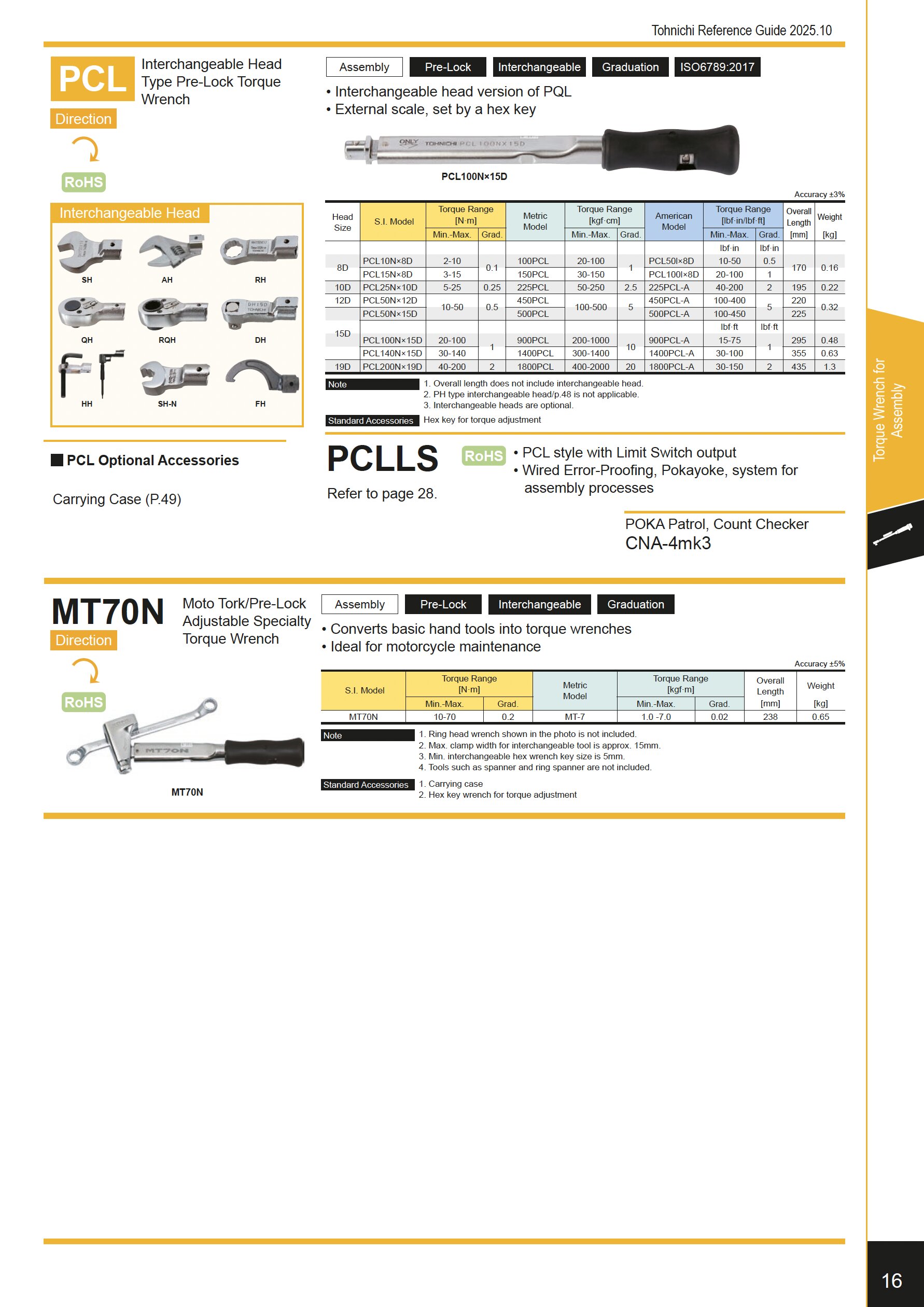

Tohnichi PCL Pre-Lock Torque Wrench

Capacity 5 / 10 / 15 / 25 / 50 / 100 / 140 / 200 Nm

Pre-Lock Adjustable Click Type Torque Wrench

This wrench type is a combination of preset and adjustable type torque wrench. They are equipped with a torque scale but to change the set torque an auxiliary tool is required, making inadvertent changes to set torque difficult during a tightening operation. This effectively prevents human errors. The aux key for torque adjustment is a standard accessory.

Same features as PQL type but with interchangeable heads. For tightening various kinds of bolts on production lines. A clear “Click” sound signals tightening completion upon reaching the set torque.

Key Features

Compliant to ISO 6789:2017 (S.I. and metric models)
Interchangeable head connector
Equipped with scale, lockable
Click signal on reaching preset torque
Comfortable resin grip

Scope of Supply

Torque wrench PCL
Adjusting tool
Traceable calibration certificate (ISO/JCSS)
Operating manual (jap./eng.)

Options / Accs / Spares

Interchangeable heads (misc)
Carrying case
Imperial scale
Metric scale

PCL – S.I. Model (Nm)

Model	Item No.	Torque Range [N·m]	Graduation	Head [ø]	Length [mm]	Weight [kg]
PCL5NX8D	T212301	1 - 5	0.05	8D	132	0.12
PCL10NX8D	T212303	2 - 10	0.1	8D	168	0.16
PCL15NX8D	T212306	3 - 15	0.1	8D	168	0.16
PCL25NX10D	T212309	5 - 25	0.25	10D	199	0.22
PCL50NX12D	T212312	10 - 50	0.5	12D	221	0.32
PCL50NX15D	T212315	10 - 50	0.5	15D	225	0.32
PCL100NX15D	T212318	20 - 100	1	15D	296	0.48
PCL140NX15D	T212321	30 - 140	1	15D	355	0.63
PCL200NX19D	T212324	40 - 200	2	19D	433	1.30

PCL – Metric (kgf)

Model	Item No.	Torque Range [kgf·cm]	Graduation	Head [ø]	Length [mm]	Weight [kg]
50PCL	T212302	10 - 50	0.5	8D	132	0.12
100PCL	T212304	20 - 100	1	8D	168	0.16
150PCL	T212307	30 - 150	1	8D	168	0.16
225PCL	T212310	50 - 250	2.5	10D	199	0.22
450PCL	T212313	100 - 500	5	12D	221	0.32
500PCL	T212316	100 - 500	5	15D	225	0.32
900PCL	T212319	200 - 1000	10	15D	296	0.48
1400PCL	T212322	300 - 1400	10	15D	355	0.63
1800PCL	T212325	400 - 2000	20	19D	433	1.30

PCL – Imperial (lbf)

Model	Item No.	Torque Range [lbf·in]	Torque Range [lbf·ft]	Graduation	Head [ø]	Length [mm]	Weight [kg]
PCL50I X8D	T212305	10 - 50	–	0.5	8D	168	0.16
PCL100I X8D	T212308	20 - 100	–	1	8D	168	0.16
225PCL-A	T212311	40 - 200	–	2	10D	199	0.22
450PCL-A	T212314	100 - 400	–	5	12D	221	0.32
500PCL-A	T212317	100 - 450	–	5	15D	225	0.32
900PCL4-A	T212320	–	15 - 75	1	15D	296	0.48
1400PCL-A	T212323	–	30 - 100	1	15D	355	0.63
1800PCL-A	T212326	–	30 - 150	5	19D	433	1.3

Length/weight without head installed.

Data according to specifications by the manufacturer. It is recommended to primarily use in moderate performance range (approx. 1/3 to 4/5 of rated capacity). If you regularly worked close to the limit of load (max capacity), a larger model or tool might be more advisable.

SI unit products and metric unit products are compliant with ISO 6789:2017 starting January 2022. Calibration Certificates will be different from older products. American unit products are not compliant with ISO 6789:2017.

All technical data without guarantee, errors and omissions excepted.
