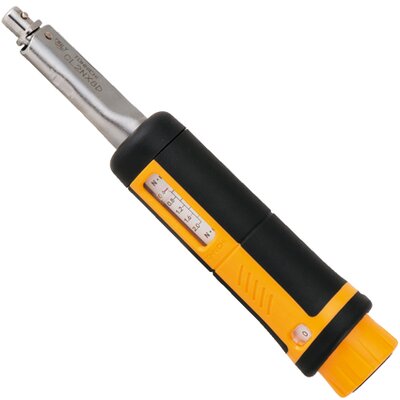

Tohnichi QL-2N Torque Wrench

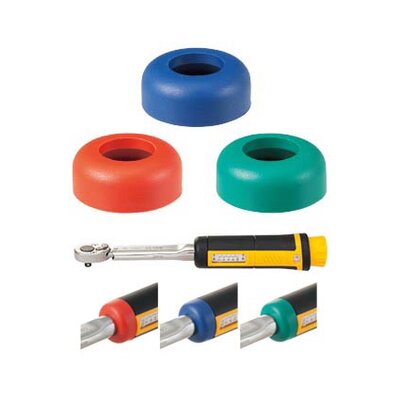

Option: Color Ring Caps (models up to 25 Nm)

Option: Carrying Case

grippy adjust knob

Scale window in handle

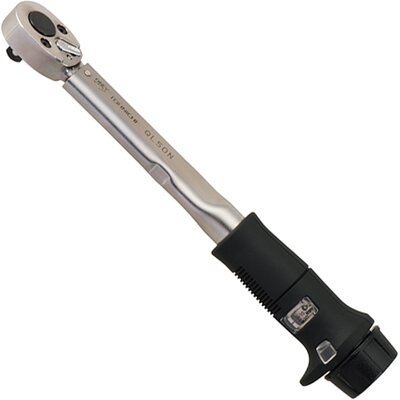

Tohnichi QL50N Torque Wrench

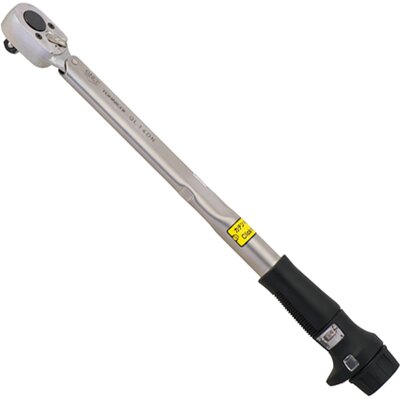

Tohnichi QL140N Torque Wrench

Alternative: CL-N series for interchangeable heads

Alternative: CL series for interchangeable heads

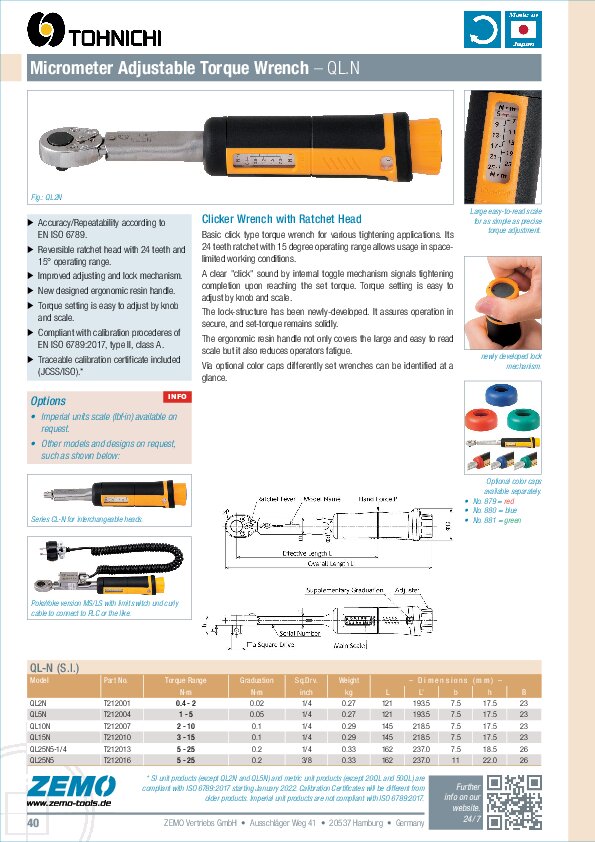

Downloads

Whether in workshop service (bicycles, e-bikes, motorcycles, etc.) or in industrial manufacturing, the handy Tohnichi QL ratchet wrench allows you to control the torque quickly and precisely. If you often work in oily/greasy conditions, we recommend the version with a metal handle -> QL-MH.

Tohnichi QL Adjustable Torque Wrench

Capacity 2 / 5 / 10 / 15 / 25 / 50 / 100 / 140 / 200 / 280 Nm

Adjustable Clicker Wrench with Reversible Ratchet

Basic click type torque wrench for various tightening applications. Its 24 teeth ratchet with 15 degree operating range allows usage in space-limited working conditions.

A clear "click" sound by internal toggle mechanism signals tightening completion upon reaching the set torque. Torque setting is easy to adjust by knob and scale.

The lock-structure has been newly-developed. It assures operation in secure, and set-torque remains solidly. The ergonomic resin handle not only covers the large and easy to read scale but it also reduces operators fatigue.

Via optional colour caps, differently set wrenches can be identified at a glance.

Features of QL series

Compliant to ISO 6789 type II class A
Reversible Ratchet with 24 teeth and 15° operating range
Integrated adjusting and lock mechanism
Ergonomic resin handle
Large, clear built-in scale

Alternative Models CL

Like QL, but with a round tool tang for interchangeable heads from Tohnichi instead of a ratchet.

Scope of Supply

Torque wrench
Traceable calibration certificate (ISO/JCSS)
Operating manual

Options / Accs / Spares

Coloured caps available for models 2N...25N
#879 = red
#880 = blue
#881 = green
#882 = black (standard)

Protection cover for ratchet head (QL only)
#870 = for QL2N...15N
#871 = for QL25N5
#872 = for QL50N
#873 = for QL100N4
#874 = for QL140N
#875 = for QL200N4
#877 = for QL280N

Ratchet repair kit (QL only)
#1101 = for QL2N...15N
#1102 = for QL25N5
#1103 = for QL50N
#1104 = for QL100N4
#1105 = for QL140N
#1106 = for QL200N4
#1107 = for QL280N

Carrying case
#842 = for models 50N, 100N
#843 = for models 140N, 200N
#846 = for models 140N, 200N
#847 = for models 280N
Remark: #842 and #843 are yellow type, #844 to #847 are black type.

Alternative Products

Series QL-LS / CL-LS with limit switch und curly cable to connect to PLC or the like.
Series QL-MH with knurled metal handle; suitable for use in greasy conditions (oil, chemicals, etc.).

QL – S.I. Model (Nm)

Model	Item No.	Torque Range [N·m]	Graduation	SqD [inch]	Length [mm]	Weight [kg]	Handle
QL2N	T212001	0.4 - 2	0.02	1/4	194	0.27	2C
QL5N	T212004	1 - 5	0.05	1/4	194	0.27	2C
QL10N	T212007	2 - 10	0.1	1/4	219	0.29	2C
QL15N	T212010	3 - 15	0.1	1/4	219	0.29	2C
QL25N5-1/4	T212013	5 - 25	0.2	1/4	237	0.33	2C
QL25N5	T212016	5 - 25	0.2	3/8	237	0.33	2C
QL50N	T212020	10 - 50	0.5	3/8	258	0.45	BK
QL100N4-3/8	T212023	20 - 100	1	3/8	333	0.69	BK
QL100N4	T212026	20 - 100	1	1/2	333	0.69	BK
QL140N	T212029	30 - 140	1	1/2	399	0.88	BK
QL200N4	T212032	40 - 200	2	1/2	489	1.4	BK
QL280N-1/2	T212035	40 - 280	2	1/2	692	2.0	BK
QL280N	T212038	40 - 280	2	3/4	692	2.0	BK
QL420N	T212040	60 - 420	2	3/4	993	3.4	MH

QL – Metric (kgf)

Model	Item No.	Torque Range [kgf·cm]	Torque Range [kgf·m]	Graduation	SqD [inch]	Length [mm]	Weight [kg]	Handle
20QL	T212002	4 - 20	–	0.2	1/4	194	0.27	2C
50QL	T212005	10 - 50	–	0.5	1/4	194	0.27	2C
100QL	T212008	20 - 100	–	1	1/4	219	0.29	2C
150QL	T212011	30 - 150	–	1	1/4	219	0.29	2C
225QL5-1/4	T212014	50 - 250	–	2.5	1/4	237	0.33	2C
225QL5	T212017	50 - 250	–	2.5	3/8	237	0.33	2C
450QL3	T212021	100 - 500	–	5	3/8	258	0.45	BK
900QL4-3/8	T212024	200 - 1000	–	10	3/8	333	0.69	BK
900QL4	T212027	200 - 1000	–	10	1/2	333	0.69	BK
1400QL3	T212030	300 - 1400	–	10	1/2	399	0.88	BK
1800QL4	T212033	400 - 2000	–	20	1/2	489	1.4	BK
2800QL3-1/2	T212036	–	4 - 28	0.2	1/2	692	2.0	BK
2800QL3	T212039	–	4 - 28	0.2	3/4	692	2.0	BK
4200QL2	T212041	–	6 - 42	0.2	3/4	993	3.4	MH

QL – Imperial (lbf)

Model	Item No.	Torque Range [lbf·in]	Torque Range [lbf·ft]	Graduation	SqD [inch]	Length [mm]	Weight [kg]	Handle
QL15I-2A	T212003	3 - 15	–	0.1	1/4	194	0.27	2C
QL30I-2A	T212006	6 - 30	–	0.2	1/4	194	0.27	2C
QL50I-2A	T212009	10 - 50	–	0.5	1/4	219	0.29	2C
QL100I-2A	T212012	20 - 100	–	1	1/4	219	0.29	2C
QL200I-2A	T212015	40 - 200	–	2	1/4	237	0.33	2C
QL200I-3A	T212018	40 - 200	–	2	3/8	237	0.33	2C
QL400I-3A	T212022	100 - 400	–	5	3/8	258	0.45	BK
QL750I-3A	T212025	150 - 750	–	10	3/8	333	0.69	BK
QL75F-3A	T212028	–	15 - 75	1	1/2	333	0.69	BK
QL100F-4A	T212031	–	30 - 100	1	1/2	399	0.88	BK
QL150F-4A	T212034	–	30 - 150	2	1/2	489	1.4	BK
QL200F-4A	T212037	–	30 - 200	2	1/2	692	2.0	BK
QL300F-6A	T212042	–	60 - 300	2	3/4	993	3.4	MH

Handle Design: '2C' = 2-coloured resin grip; 'BK' = black resin grip; 'MH' = knurled metal handle.

Data according to specifications by the manufacturer. It is recommended to primarily use in moderate performance range (approx. 1/3 to 4/5 of rated capacity). If you regularly worked close to the limit of load (max capacity), a larger model or tool might be more advisable.

SI unit products (except QL2N and QL5N) and metric unit products (except 20QL and 50QL) are compliant with ISO 6789:2017 starting January 2022. Calibration Certificates will be different from older products. American unit products are not compliant with ISO 6789:2017.

All technical data without guarantee, errors and omissions excepted.
