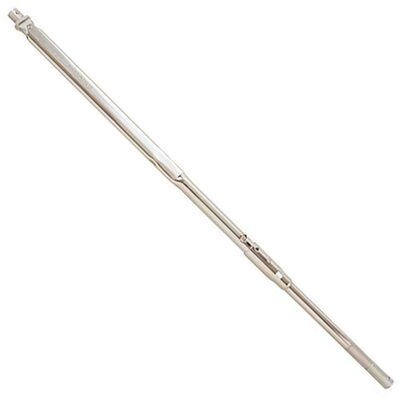

Adjustable Ratchet Wrench for High Torques
Adjustable type wrench, ideal for variety of tightening torque applications up to 2800 Nm. The ratchet head has 24 teeth with a 15 degree operating range, allowing for use in space-limited working conditions.

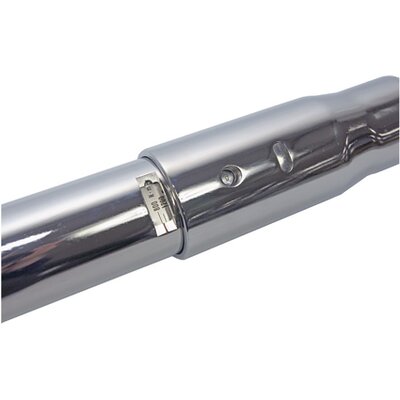

Torque setting is easy to adjust. The "never-lost" built-in torque adjustment handle makes torque changes easy even without a special-purpose tool. All QLE2 models have an extension handle that separates from the body for compact storage.
A clear “click” sound signals tightening completion upon reaching the set torque.
Key Features
Scope of Supply
Options / Accs / Spares
| Model | Item No. | Torque Range [N·m] | Graduation | SqD [inch] | Weight [kg] | OvL [mm] |
|---|---|---|---|---|---|---|
| QLE550N2 | T212050 | 100 - 550 | 5 | 3/4 | 4.3 | 1189 |
| QLE750N2 | T212053 | 150 - 750 | 5 | 3/4 | 5.6 | 1342 |
| QLE1000N2 | T212056 | 200 - 1000 | 5 | 1 | 7.7 | 1515 |
| QLE1400N2 | T212059 | 300 - 1400 | 10 | 1 | 11.1 | 1787 |
| QLE2100N2 | T212062 | 500 - 2100 | 10 | 1 | 14.6 | 1899 |
| QLE2800N2 | T212065 | 800 - 2800 | 20 | 1.5 | 23.7 | 2405 |
| Model | Item No. | Torque Range [kgf·m] | Graduation | SqD [inch] | Weight [kg] | Length [mm] |
|---|---|---|---|---|---|---|
| 5500QLE2 | T212051 | 10 - 55 | 0.5 | 3/4 | 4.3 | 1189 |
| 7500QLE2 | T212054 | 15 - 75 | 0.5 | 3/4 | 5.6 | 1342 |
| 10000QLE2 | T212057 | 20 - 100 | 0.5 | 1 | 7.7 | 1515 |
| 14000QLE2 | T212060 | 30 - 140 | 1 | 1 | 11.1 | 1787 |
| 21000QLE2 | T212063 | 50 - 210 | 1 | 1 | 14.6 | 1899 |
| 28000QLE2 | T212066 | 80 - 280 | 2 | 1.5 | 23.7 | 2405 |
| Model | Item No. | Torque Range [lbf·ft] | Graduation | SqD [inch] | Weight [kg] | OvL [mm] |
|---|---|---|---|---|---|---|
| QLE400F-6A | T212052 | 100 - 400 | 5 | 3/4 | 4.3 | 1189 |
| QLE600F-6A | T212055 | 150 - 600 | 5 | 3/4 | 5.6 | 1342 |
| QLE700F-8A | T212058 | 200 - 700 | 5 | 1 | 7.7 | 1515 |
| QLE1000F-8A | T212061 | 300 - 1000 | 10 | 1 | 11.1 | 1787 |
| QLE1500F-8A | T212064 | 500 - 1500 | 10 | 1 | 14.6 | 1899 |
| QLE2000F-12A | T212067 | 600 - 2000 | 20 | 1.5 | 23.7 | 2405 |
Data according to specifications by the manufacturer. It is recommended to primarily use in moderate performance range (approx. 1/3 to 4/5 of rated capacity). If you regularly worked close to the limit of load (max capacity), a larger model or tool might be more advisable.
SI unit products (except QL2N and QL5N) and metric unit products (except 20QL and 50QL) are compliant with ISO 6789:2017 starting January 2022. Calibration Certificates will be different from older products. American unit products are not compliant with ISO 6789:2017.
All technical data without guarantee, errors and omissions excepted.
