Tohnichi QSP / QSP-MH Preset Torque Wrench

Capacity 1.5 / 3 / 6 / 12 / 25 / 50 / 100 / 140 / 200 / 280 / 420 Nm

Ratchet Head Preset Clicker Torque Wrench

Robust clicker wrench for tightening various types of bolts on production lines or similar applications. The ratchet head has 24 teeth with a 15 degree operating range, allowing for use in space-limited working conditions.

Torque adjustment is adjusted by special adjusting tool (sold separately) and a proper torque wrench tester. A distinct 'click' sound signals the completion of tightening upon reaching the set torque.

Features of QSP series

Accuracy according to EN ISO 6789:2017
Reversible ratchet head
Preset type
Ergonomic resin handle

Features of QSP-MH series

like QSP, but equipped with a knurled metal handle.

Scope of Supply

Torque wrench
Operating manual

Options / Accs / Spares

Adjusting Tool:
#931 = for model 25N
#930 = for model 50N ... 140N

Protective ratchet head cover
#870 = QSP1.5N4 ... 12N4
#871 = QSP25N3(-MH)
#872 = QSP50N3(-MH)
#873 = QSP100N4(-MH)
#874 = QSP140N3(-MH)
#875 = QSP200N4
#877 = QSP280N3
#878 = QSP420N3

Ratchet Repair Kits
#1101 = für QSP1.5N4...12N4
#1102 = für QSP25N3(-MH)
#1103 = für QSP50N3(-MH)
#1104 = für QSP100N4(-MH)
#1105 = für QSP140N3(-MH)
#1106 = für QSP200N4
#1107 = für QSP280N3
#1108 = für QSP420N3

Alternative Products

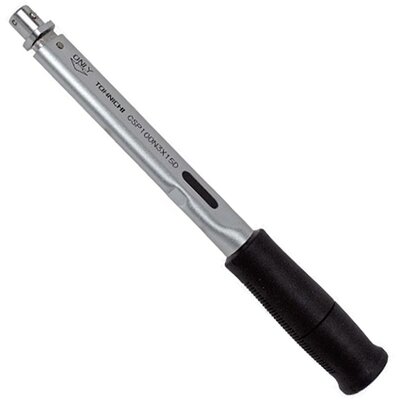

Series CSP / CSP-MH equipped with round shaft for interchangeable heads from Tohnichi.

Series QSPLS = w limit switch und signal cable to connect to PLC or the like (see Downloads).

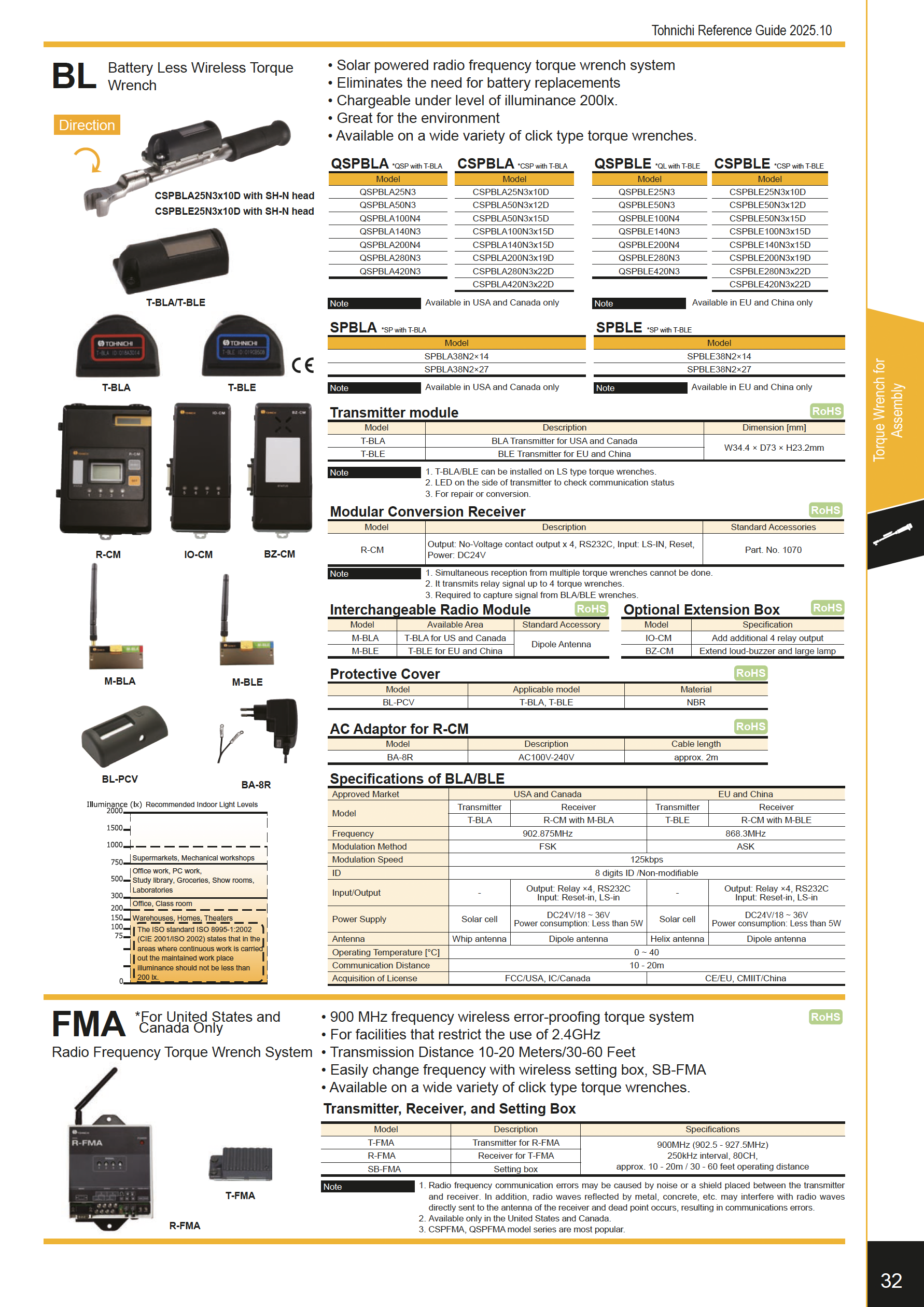

Series QSPBL = w solar powered remote signal module to connect to wireless receiver R-CM (see Downlads).
Series QSPFH = w battery powered remote signal module to connect to wireless receiver R-CM (see Downloads).

QSP (Resin Grip)

Model	Item No.	Torque Range [N·m]	Torque Range [kgf·cm]	Torque Range [lbf·in]	SqD [inch]	Length [mm]	Weight [kg]	Handle
QSP1.5N4	T212330	0.3 - 1.5	3 - 15	2.6 - 13	1/4	165	0.16	BK
QSP3N4	T212331	0.6 - 3	6 - 30	5.3 - 26	1/4	165	0.16	BK
QSP6N4	T212332	1 - 6	12 - 60	9 - 53	1/4	165	0.19	BK
QSP12N4	T212333	2 - 12	24 - 120	18 - 106	1/4	175	0.19	BK
QSP25N3-1/4	T212334	5 - 25	50 - 250	44 - 220	1/4	215	0.25	BK
QSP25N3	T212335	5 - 25	50 - 250	44 - 220	3/8	215	0.25	BK
QSP50N3	T212336	10 - 50	100 - 500	90 - 440	3/8	240	0.40	BK
QSP100N4-3/8	T212337	20 - 100	200 - 1000	180 - 885	3/8	315	0.65	BK
QSP100N4	T212338	20 - 100	200 - 1000	180 - 885	1/2	315	0.65	BK
QSP140N3	T212339	30 - 140	280 - 1400	265 - 1240	1/2	380	0.70	BK

QSP-MH

Model	Item No.	Torque Range [N·m]	Torque Range [kgf·cm]	Torque Range [lbf·in]	SqD [inch]	Length [mm]	Weight [kg]	Handle
QSP25N3-MH	T212345	5 - 25	50 - 255	44 - 220	3/8	214	0.25	MH
QSP50N3-MH	T212346	10 - 50	100 - 510	90 - 440	3/8	240	0.40	MH
QSP100N4-MH	T212347	20 - 100	200 - 1020	180 - 885	1/2	314	0.65	MH
QSP140N3-MH	T212348	30 - 140	300 - 1425	265 - 1240	1/2	379	0.70	MH
QSP200N4	T212340	40 - 200	410 - 2040	355 - 1770	1/2	464	1.2	MH
QSP280N3-1/2	T212341	55 - 280	560 - 2855	500 - 2475	1/2	667	1.8	MH
QSP280N3	T212342	55 - 280	560 - 2855	500 - 2475	3/4	667	1.8	MH
QSP420N3	T212344	80 - 420	850 - 4280	740 - 3715	3/4	965	3.1	MH

Specification as stated by manufacturer. It is recommended to use in moderate performance range (approx. 1/3 to 4/5 of rated capacity). If you were to regularly work at the tool’s capacity limit, a larger model would generally be the better option.

Except for QSP1.5N4 and QSP3N4, products are compliant with ISO 6789:2017 starting January 2022.

All information is provided subject to errors and changes..
