Tohnichi SF Indicating Torque Wrench

Capacity 40 / 70 cNm // 1.5 / 3 / 6 / 12 Nm

Classic Torque Wrench with Pointer Scale



Tohnichi's SF series is a direct-reading standard torque wrench that can be used for various purposes, such as tightening and measuring with direct reading, including retightening and loosening. The unique shape of the arm ensures that the internal force remains at a stable level without friction, contributing to an increased service life.



The wrench is compact, robust and durable, lightweight and has an easy-to-read pointer scale that is graduated for both clockwise and anti-clockwise rotation.



Features



  • Beam-type wrench with pointer

  • Graduation for both directions of rotation (R/L)

  • Compliant with ISO 6789 Type I Class A

  • Accuracy ± 3%

  • Fixed square drive



Scope of Supply



  • SF torque wrench
  • Certificate of Calibration
  • Operating instructions






Other models / versions available on request.

SF – S.I. Model (cNm / Nm)
Model Item No. Torque Range [cN·m] Torque Range [N·m] Graduation SqD [inch] Length [mm] Weight [kg]
SF40CN T211300 8 - 40 2 1/4 115 0.04

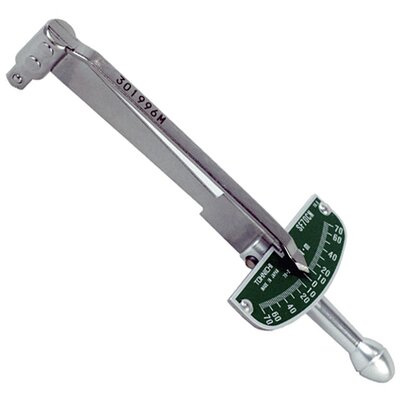

SF70CN T211303 10 - 70 2 1/4 135 0.05

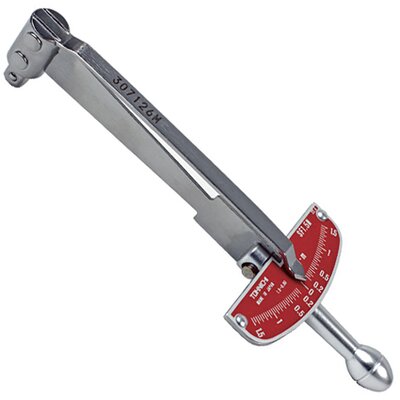

SF1.5N T211306 0.2 - 1.5 0.05 1/4 145 0.07
SF3N T211309 0.5 - 3 0.1 1/4 175 0.09

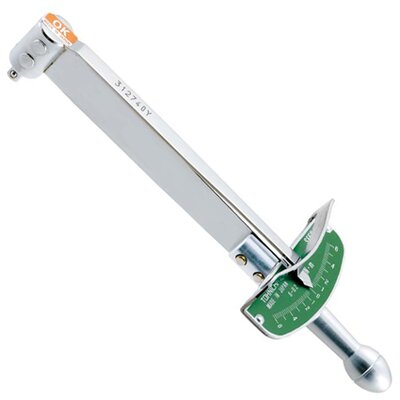

SF6N T211312 0.6 - 6 0.2 1/4 205 0.20
SF12N T211315 2 - 12 0.5 1/4 235 0.25
SF – Metric (kgf)
Model Item No. Torque Range [kgf·cm] Graduation SqD [inch] Length [mm] Weight [kg]
4SF T211301 0.8 - 4 0.02 1/4 115 0.04
7SF T211304 1 - 7 0.02 1/4 135 0.05
15SF T211307 2 - 15 0.5 1/4 145 0.07
30SF T211310 5 - 30 1 1/4 175 0.09
60SF T211313 6 - 60 2 1/4 205 0.20
120SF T211316 20 - 120 5 1/4 235 0.25
SF – Imperial (lbf)
Model Item No. Torque Range [lbf·in] Graduation SqD [inch] Length [mm] Weight [kg]
4SF-A T211302 0.4 - 3.4 0.2 1/4 115 0.04
7SF-A T211305 0.8 - 6 0.2 1/4 135 0.05
15SF-A T211308 2 - 13 0.5 1/4 145 0.07
30SF-A T211311 4 - 26 1 1/4 175 0.09
60SF-A T211314 6 - 50 2 1/4 205 0.20
120SF-A T211317 10 - 100 5 1/4 235 0.25

Data according to specifications by the manufacturer. It is recommended to primarily use in moderate performance range (approx. 1/3 to 4/5 of rated capacity). If you regularly worked close to the limit of load (max capacity), a larger model or tool might be more advisable.



All technical data without guarantee, errors and omissions excepted.
