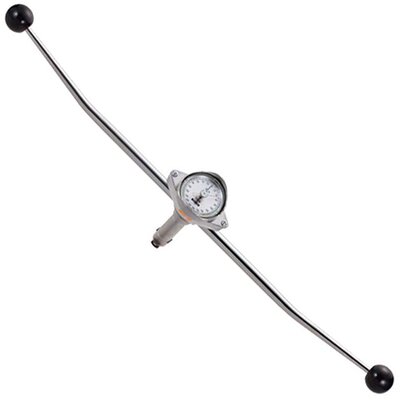

Dial Indicating Torque Wrench w T-Handle
T-handle direct reading torque wrench with wide range, high accuracy, lightweight, easy-to-read large dial, suitable for inspection. Graduated scale with a precise pointer provides accurate torque value readings.
Since load is applied with both hands or two person, the applied force is off set, allowing for easy and precise measuring or tightening. The amount of deformation is small, thus operator’s fatigue is reduced compared to the flat beam type torque wrench.
T-S models are equipped with a convenient memory pointer (standard) to capture peak torque reading. Since the dial is movable, the pointer can be set to the desired torque first and complete tightening as the pointer indicates '0'.
Key Features
Scope of Supply
Options / Accs / Spares
Model | Item No. | Torque Range [N·m] | Graduation | SqD [inch] | Length [mm] | Weight [kg] | Handle |
---|---|---|---|---|---|---|---|
T23N-S | T211205 | 3.5 - 23 | 0.5 | 3/8 | 205 | 0.41 | B |
T45N-S | T211208 | 5 - 45 | 0.5 | 3/8 | 261 | 0.53 | B |
T90N-S | T211211 | 10 - 90 | 1 | 1/2 | 376 | 0.8 | B |
T180N-S | T211214 | 20 - 180 | 2 | 1/2 | 656 | 1.2 | B |
T700N-S * | T211217 | 70 - 700 | 10 | 3/4 | 1300 | 4.0 | MH |
T1000N-S * | T211220 | 100 - 1000 | 10 | 1 | 1630 | 4.8 | MH |
T1400N-S * | T211223 | 200 - 1400 | 20 | 1 | 1880 | 6.2 | MH |
T2100N-S * | T211226 | 200 - 2100 | 20 | 1 | 2500 | 10 | MH |
T2800N-S * | T211229 | 300 - 2800 | 50 | 1.5 | 2960 | 15.5 | MH |
T4200N-S * | T211332 | 500 - 4200 | 50 | 1.5 | 3660 | 21.5 | MH |
Model | Item No. | Torque Range [kgf·cm] | Torque Range [kgf·m] | Graduation | SqD [inch] | Length [mm] | Weight [kg] | Handle |
---|---|---|---|---|---|---|---|---|
T230M2-S | T211206 | 35 - 230 | – | 5 | 3/8 | 205 | 0.41 | B |
T450M-S | T211209 | 50 - 45 | – | 5 | 3/8 | 261 | 0.53 | B |
T900M-S | T211212 | 100 - 900 | – | 10 | 1/2 | 376 | 0.80 | B |
T1800M-S | T211215 | 200 - 1800 | – | 20 | 1/2 | 656 | 1.2 | B |
7000T-S * | T211218 | – | 7 - 70 | 1 | 3/4 | 1300 | 4.0 | MH |
10000T-S * | T211221 | – | 10 - 100 | 1 | 1 | 1630 | 4.8 | MH |
14000T-S * | T211224 | – | 20 - 140 | 2 | 1 | 1880 | 6.2 | MH |
21000T-S * | T211227 | – | 20 - 210 | 2 | 1 | 2500 | 10.0 | MH |
28000T-S * | T211230 | – | 30 - 280 | 5 | 1.5 | 2960 | 15.5 | MH |
42000T-S * | T211233 | – | 40 - 420 | 5 | 1.5 | 3660 | 21.5 | MH |
Model | Item No. | Torque Range [lbf·in] | Torque Range [lbf·ft] | Graduation | SqD [inch] | Lengt [mm] | Weight [kg] | Handle |
---|---|---|---|---|---|---|---|---|
T200I-3AS | T211207 | 20 - 200 | – | 2 | 3/8 | 205 | 0.41 | B |
T400I-3AS | T211210 | 50 - 400 | – | 5 | 3/8 | 261 | 0.53 | B |
T65F-4AS | T211213 | – | 10 - 65 | 1 | 1/2 | 376 | 0.8 | B |
T130F-4AS | T211216 | – | 20 - 130 | 2 | 1/2 | 656 | 1.2 | B |
7000T-A-S * | T211219 | – | 50 - 500 | 5 | 3/4 | 1300 | 4.0 | MH |
10000T-A-S * | T211222 | – | 50 - 700 | 5 | 1 | 1630 | 4.8 | MH |
14000T-A-S * | T211225 | – | 100 - 1000 | 10 | 1 | 1880 | 6.2 | MH |
21000T-A-S * | T211228 | – | 200 - 1500 | 20 | 1 | 2500 | 10 | MH |
28000T-A-S * | T211231 | – | 200 - 2000 | 20 | 1.5 | 2960 | 15.5 | MH |
42000T-A-S * | T211234 | – | 400 - 3000 | 50 | 1.5 | 3660 | 21.5 | MH |
* These models are manufactured after order is received. Handle 'B' = Resin Ball Grip, Handle 'MH' = Knurled Metal Handle.
Data according to specifications by the manufacturer. It is recommended to primarily use in moderate performance range (approx. 1/3 to 4/5 of rated capacity). If you regularly worked close to the limit of load (max capacity), a larger model or tool might be more advisable.
SI unit products and metric unit products are compliant with ISO 6789:2017 starting January 2022. Model names for some products and Calibration Certificates will be different from older products. American unit products are not compliant with ISO 6789:2017.
All technical data without guarantee, errors and omissions excepted.
