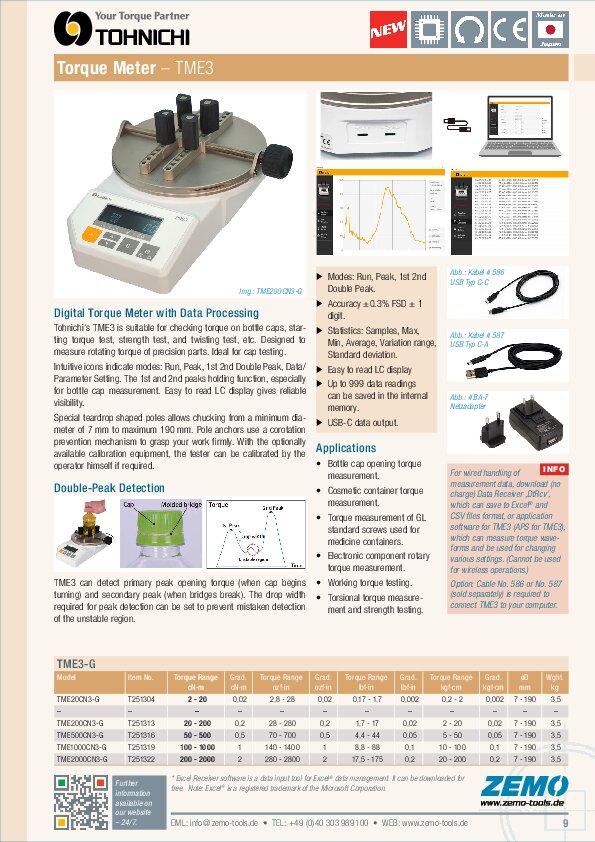

Tohnichi TME3 Digital Torque Meter

Capacity 20 / 200 / 500 / 1000 / 2000 cNm

Precision Torque Measurement for Rotating Parts & Cap Testing

Tohnichi's new TME3-G digital torque meter is designed for accurate rotating torque measurement of precision components and is ideal for cap testing applications. With advanced peak holding functions and a versatile chucking system, it ensures precise and reliable results for a wide range of industries.

The TME3-G digital torque meter is an essential tool for cap torque testing and precision torque measurement, offering advanced functionality, high accuracy, and a user-friendly interface for demanding applications.

Special teardrop shaped poles allows chucking from a minimum diameter of 7 mm to maximum 190 mm. Pole anchors use a corotation prevention mechanism to grasp your work firmly. With the optionally available calibration equipment, the tester can be calibrated by the operator himself if required.

Features & Benefits

Icons for operation module and situation display make operation intuitive.
Can detect primary peak opening torque (when cap begins turning) and secondary peak (when bridges break).
The clamp moves the four poles, sliding them to hold your work firmly.
Pole shape has been refined to permit a minimum chuck diameter of 7 mm. Pole anchors use a corotation prevention mechanism to grasp your work firmly.
The drop width required for peak detection can be set to prevent mistaken detection of the unstable region.
Easy to read LC display gives reliable visibility.

Applications

Bottle cap opening torque measurement.
Cosmetic container torque measurement.
Torque measurement of GL standard screws used for medicine containers.
Electronic component rotary torque measurement.
Working torque testing.
Torsional torque measurement and strength testing.

Specifications

Measuring Modes: Run, Peak, Double Peak (1st & 2nd)
Accuracy: ±0.3% FSD ± 1 digit
Multiple Torque Units: cN·m, N·m, gf·cm (smallest model only), kgf·cm, ozf·in, and lbf·in.
Statistics: Samples, Max, Min, Average, Variation range, Standard deviation
Display: Black mask LCD (white-red-blue)
Data Memory: 1000 readings
Data Output: USB-C port

Scope of Supply

Torque Meter TME3
Object clamping device & 4 drop shaped poles
Support plate (only TME-1000CN3 and 2000CN3)
AC adapter #BA-7
USB-C power cable #587
Operating Manual
Traceable Certificate of Calibration

Options / Accs / Spares

USB C-C cable 2m #586
USB C-A cable 2m #587
AC adapter #BA-7
Calibration Kit #TMTCL2

Series TME3

Model	Item No.	Torque Range [cN·m]	Torque Range [N·m]	Torque Range [ozf·in]	Torque Range [lbf·in]	Span Ø [mm]	Weight [kg]
TME20CN3-G	T251330	2 - 20	–	2.8 - 28	0.17 - 1.7	7 - 190	3.5
–	–	–	–	–	–	–	–
TME200CN3-G	T251333	20 - 200	0.2 - 2	28 - 280	1.7 - 17	7 - 190	3.5
TME500CN3-G	T251336	50 - 500	0.5 - 5	70 - 700	4.4 - 44	7 - 190	3.5
TME1000CN3-G	T251339	100 - 1000	1 - 10	140 - 1400	8.8 - 88	7 - 190	3.5
TME2000CN3-G	T251342	200 - 2000	2 - 20	280 - 2800	17.5 - 175	7 - 190	3.5

Due to continuous improvement all specifications are subject to change without prior notice.
