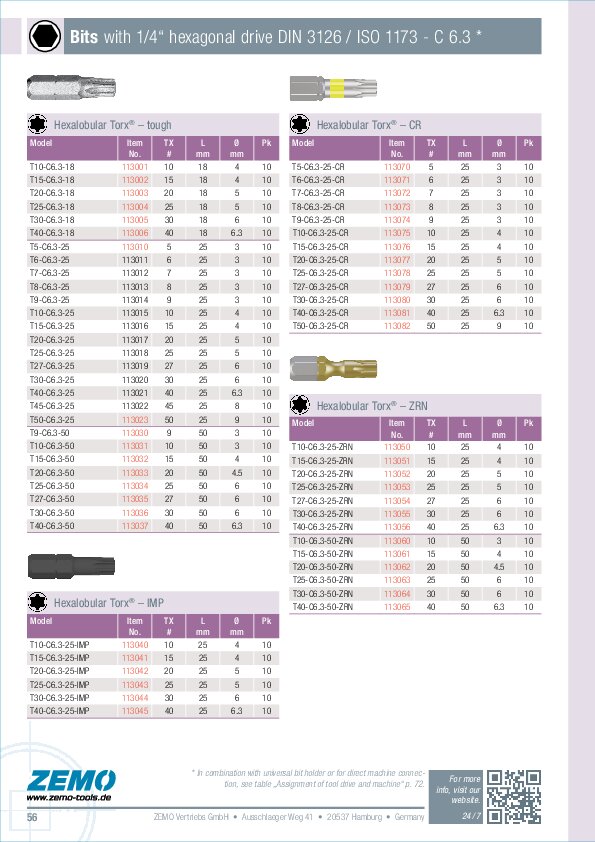

Torx® Bits w 1/4 hex drive C 6.3

Tip profile Torx® TX

1/4" hexagon drive DIN 3126 / ISO 1173 – C 6.3

Tough bits are ideal for hard applications where sudden increases in torque can lead to increased stresses in a bit. A hard screw case is when screwing into metal.

C 6.3 – Hexalobular TX – L18

Model	Item No.	TX #	L [mm]	Ø [mm]	Pk
T10-C6.3-18	113001	10	18	4	10
T15-C6.3-18	113002	15	18	4	10
T20-C6.3-18	113003	20	18	5	10
T25-C6.3-18	113004	25	18	5	10
T30-C6.3-18	113005	30	18	6	10
T40-C6.3-18	113006	40	18	6.3	10

C 6.3 – Hexalobular TX – L25

Model	Item No.	TX #	L [mm]	Ø [mm]	Pk
T5-C6.3-25	113010	5	25	3	10
T6-C6.3-25	113011	6	25	3	10
T7-C6.3-25	113012	7	25	3	10
T8-C6.3-25	113013	8	25	3	10
T9-C6.3-25	113014	9	25	3	10
T10-C6.3-25	113015	10	25	4	10
T15-C6.3-25	113016	15	25	4	10
T20-C6.3-25	113017	20	25	5	10
T25-C6.3-25	113018	25	25	5	10
T27-C6.3-25	113019	27	25	6	10
T30-C6.3-25	113020	30	25	6	10
T40-C6.3-25	113021	40	25	6.3	10
T45-C6.3-25	113022	45	25	8	10
T50-C6.3-25	113023	50	25	9	10

C 6.3 – Hexalobular TX – L25 – CR

Model	Item No.	TX #	L [mm]	Ø [mm]	Pk
T5-C6.3-25-CR	113070	5	25	3	10
T6-C6.3-25-CR	113071	6	25	3	10
T7-C6.3-25-CR	113072	7	25	3	10
T8-C6.3-25-CR	113073	8	25	3	10
T9-C6.3-25-CR	113074	9	25	3	10
T10-C6.3-25-CR	113075	10	25	4	10
T15-C6.3-25-CR	113076	15	25	4	10
T20-C6.3-25-CR	113077	20	25	5	10
T25-C6.3-25-CR	113078	25	25	5	10
T27-C6.3-25-CR	113079	27	25	6	10
T30-C6.3-25-CR	113080	30	25	6	10
T40-C6.3-25-CR	113081	40	25	6.3	10
T50-C6.3-25-CR	113082	50	25	9	10

C 6.3 – Hexalobular TX – L25 – IMP

Model	Item No.	TX #	L [mm]	Ø [mm]	Pk
T10-C6.3-25-IMP	113040	10	25	4	10
T15-C6.3-25-IMP	113041	15	25	4	10
T20-C6.3-25-IMP	113042	20	25	5	10
T25-C6.3-25-IMP	113043	25	25	5	10
T30-C6.3-25-IMP	113044	30	25	6	10
T40-C6.3-25-IMP	113045	40	25	6.3	10

C 6.3 – Hexalobular TX – L25 – Ball

Model	Item No.	TX #	L [mm]	Ø [mm]	Pk
TK10-C6.3-25	113410	10	25	–	10
TK15-C6.3-25	113411	15	25	–	10
TK20-C6.3-25	113412	20	25	–	10
TK25-C6.3-25	113413	25	25	–	10
TK27-C6.3-25	113414	27	25	–	10
TK30-C6.3-25	113415	30	25	–	10
TK40-C6.3-25	113416	40	25	–	10

C 6.3 – Hexalobular TX – L25 – ZRN

Model	Item No.	TX #	L [mm]	Ø [mm]	Pk
T10-C6.3-25-ZRN	113050	10	25	4	10
T15-C6.3-25-ZRN	113051	15	25	4	10
T20-C6.3-25-ZRN	113052	20	25	5	10
T25-C6.3-25-ZRN	113053	25	25	5	10
T27-C6.3-25-ZRN	113054	27	25	6	10
T30-C6.3-25-ZRN	113055	30	25	6	10
T40-C6.3-25-ZRN	113056	40	25	6.3	10

C 6.3 – Hexalobular TX – L50

Model	Item No.	TX #	L [mm]	Ø [mm]	Pk
T9-C6.3-50	113030	9	50	3	10
T10-C6.3-50	113031	10	50	3	10
T15-C6.3-50	113032	15	50	4	10
T20-C6.3-50	113033	20	50	4.5	10
T25-C6.3-50	113034	25	50	6	10
T27-C6.3-50	113035	27	50	6	10
T30-C6.3-50	113036	30	50	6	10
T40-C6.3-50	113037	40	50	6.3	10

C 6.3 – Hexalobular TX – L50 – ZRN

Model	Item No.	TX #	L [mm]	Ø [mm]	Pk
T10-C6.3-50-ZRN	113060	10	50	4	10
T15-C6.3-50-ZRN	113061	15	50	4	10
T20-C6.3-50-ZRN	113062	20	50	4.5	10
T25-C6.3-50-ZRN	113063	25	50	6	10
T30-C6.3-50-ZRN	113064	30	50	6	10
T40-C6.3-50-ZRN	113065	40	50	6.3	10

All specifications without guarantee, errors and omissions excepted.
