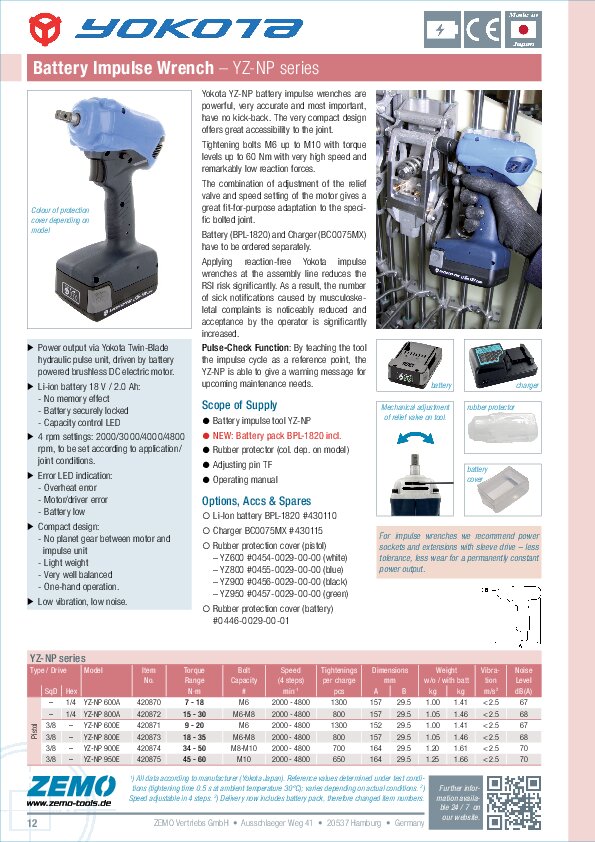

Hi-Tec Non-Shut-Off Battery Impulse Tool
YOKOTA battery impulse wrenches are powerful, very accurate and most important, have no kick-back. The very compact design offers great accessibility to the joint. Tightening bolts M6 up to M10 with torque levels up to 65 Nm with very high speed and remarkably low reaction forces. The combination of adjustment of the relief valve and speed setting of the motor gives a great fit-for-purpose adaptation to the specific bolted joint.
YZ-NP impulse wrench is light weight, well balanced, and has a brushless DC motor. It allows 4 rpm settings (2000/3000/4000/4800) to be set according to application/joint conditions. No planet gear between motor and impulse unit resulting in extremely low vibration and low noise.
Available Li-ion battery 18 V / 2.0 Ah provides LED capacity indicator and no memory-effect. LED indication appears on overheat error, motor/driver error, and low battery capacity.
Applying reaction-free Yokota impulse wrenches at the assembly line reduces the RSI risk significantly.
Pulse-Check Function: By teaching the tool the impulse cycle as a reference point, the YZ-NP is able to give a warning message for upcoming maintenance needs.
Key Features
Scope of Supply
Options / Accs / Spares
| Model | Item No. | Sq Drv [inch] | Torque Range [N·m] | Free Speed [1/min] | Weight [kg] |
|---|---|---|---|---|---|
| YZ-NP600E | 420871 | 3/8 | 9 - 20 | 2000/3000/4000/4800 | 1.40 |
| YZ-NP800E | 420873 | 3/8 | 18 - 35 | 2000/3000/4000/4800 | 1.45 |
| YZ-NP900E | 420874 | 3/8 | 34 - 50 | 2000/3000/4000/4800 | 1.60 |
| YZ-NP950E | 420875 | 3/8 | 45 - 60 | 2000/3000/4000/4800 | 1.65 |
| Model | Item No. | Hex Drv [inch] | Torque Range [N·m] | Free Speed [1/min] | Weight [kg] |
|---|---|---|---|---|---|
| YZ-NP600A | 420870 | 1/4 | 7 - 18 | 2000/3000/4000/4800 | 1.40 |
| YZ-NP800A | 420872 | 1/4 | 15 - 30 | 2000/3000/4000/4800 | 1.45 |
All specifications without guarantee, errors and omissions excepted.
