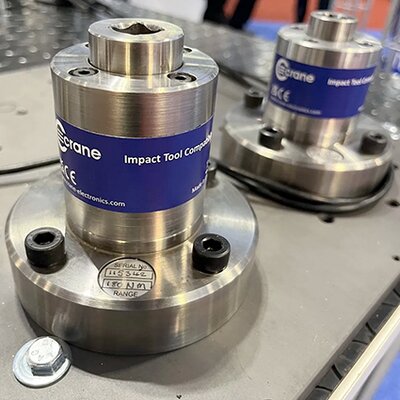

Crane Stationary ITC Static Torque Transducer

Impact Tool Compatible Stationary Transducer

The impact tool compatible stationary torque transducer is the quality choice for the testing and auditing of all continuous-drive tools, impulse power tools, impact tools and hand torque tools, in workshop, R&D and production line-side environments.

The impact tool compatible stationary transducer can be used alongside a Crane torque wrench when setting up an impact tool and for verification both off-line in workshops or line-side on mobile testing stations.

Combined with a Crane joint kit that represents the production joint condition, they form an effective off-line test for the verification of assembly tool performance.

The impact tool compatible stationary transducer is automatically recognised by Crane readouts and data collectors thanks to on board intelligence which eliminates the risk of set-up errors and enables the logging of serial numbers against measurements for complete traceability.

Key Features

• Suitable for the measurement of all continuous drive, impulse power tools, impact tools and all hand torque tools.
• Automatic transducer recognition with Crane readouts and data collectors.
• Combine with joint kits for workshop simulation of hard to soft joints.
• Can be incorporated into custom-built mobile testing stations like the MTTS.
• Available in a range of torque ratings from 75 Nm up to 600 Nm.

Technical Specs

• Transducer Type: Auto-ID: incorporates data chip enabling Plug & Play operation with compatible Crane readouts and data collectors.
• Static Accuracy: ±0.25% FSD
• Zero Stability: < ± 0.1% of FSD/°C
• Ingress Protection Rating: IP40
• Operating Environment: +5°C to 40°C; humidity 10-75% non-condensing.
• Connections: 1m integral cable with strain relief; 25-pin ‘D’ port (male) for connection to Crane readouts and data collectors.
