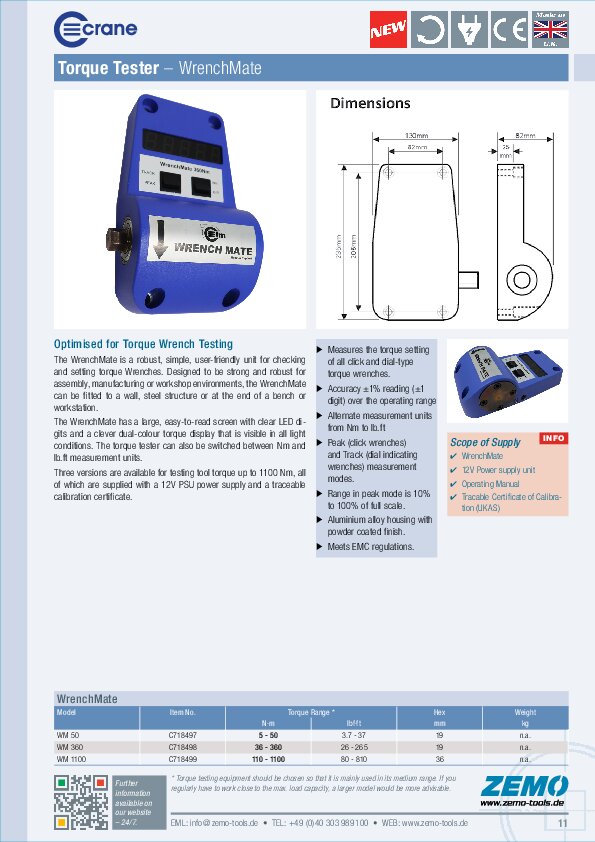

Crane WrenchMate Torque Tester

Capacity 50 / 360 / 1100 Nm

Basic Torque Wrench Tester for Assembly Lines / Workshops

The Wrenchmate is a robust, simple, user-friendly unit for checking and setting torque Wrenches. Designed to be strong and robust for assembly, manufacturing or workshop environments, the Wrenchmate can be fitted to a wall, steel structure or at the end of a bench or workstation.

The Wrenchmate has a large, easy-to-read screen with clear LED digits and a clever dual-colour torque display that is visible in all light conditions. The wrench torque tester can also be switched between N·m and lbf·ft measurement units.

Three models are available for testing wrench torque, including the 50, 360 and 1100 Nm ranges, all of which are supplied with a 12V PSU power supply and a traceable 12-month calibration certificate.

Key Features

Measures the torque setting of all click-type and dial-type wrenches
Aluminium alloy housing with powder coated finish
Accuracy ±1% reading (±1 digit) over the operating range
Alternate measurement units from Nm to lb.ft
Peak (click wrenches) and Track (dial indicating wrenches) measurement modes
Range in peak mode is 10% to 100% of full scale
Meets EMC regulations

Scope of Supply

Torque Tester
12V PSU
Operating Instructions
Traceable Calibration Cert (UKAS)

WrenchMate

Model	Item No.	Torque Range [N·m]	Torque Range [lbf·ft]	Hex Drv [mm]	Weight [kg]
WM 50	C718497	5 - 50	3.7 - 37	19	n.a.
WM 360	C718498	36 - 360	26 - 265	19	n.a.
WM 1100	C718499	110 - 1100	80 - 810	36	n.a.

All specifications without guarantee, errors and omissions excepted.
