Smart Transducerized Electric Screwdriver Controller
The ECTD controller operates with only the ECT-Series Transducerized Smart Electric Screwdrivers. It is a single tool controller that offers programmable speed, angle, auto-reverse and soft start options. I/O interface for communication with external devices such as PLC.
Error-Proofing
- Error-proof the fastening process and eliminate manufacturing risks and prevent product defects.
- The EZ-Glider position control torque arm is an error-proofing system that detects and eliminates costly screw-fastening errors and ensures that every screw is correctly tightened in the correct sequence. Paired with ECT smart screwdrivers, the torque arm adds an extra layer of error-proofing to the fastening process.
Process Optimization
- Fastening Quality Control: OK/NG monitoring of screw fastening by a preset pattern of angle and/or time.
- Fully programmable via the touch screen.
- PC-based program for parameter settings, monitoring, and real-time output.
- The built-in screw counting function ensures that all screws are accounted for during the assembly process.
- Digital I/O allows interfacing with a machine & PLC interface for line control monitoring techniques.
- Programmable fastening sequences and workflows. Create standardized fastening workflows.
- Program up to 15 presets and 15 models, consisting of up to 20 steps for each model.
Data Collection and Analysis
- Data collection - record and store torque and fastening data.
- Collect and store essential quality data in a repository for data analytics, regulatory compliance, and traceability.
- Provides fastening torque data analysis (Standard Deviation, Mean, Average, CP, CPK).
- Transducerized Tool – traceability, superior accuracy, and precision. The transducer continuously measures torque in real-time and feeds data into the system.
NEW – MountzCom III Software
Empower your team to maximize productivity, efficiency, and control of your tools like never before with an improved suite of quality-of-life improvements. Customization meets simplicity with MountzCom III's user role preferences. Tailor access and permissions to individual team members, granting them the right level of control and visibility. Our software ensures that every user experiences a role centered interface, reducing errors in selecting and editing parameters.
Order Codes
- M313003 = ECTD-5000U Controller (110V)
- M313004 = ECTD-5000E Controller (230V)
Power Tool Cables
Each ECT electric screwdriver is supplied with the standard 3-meter length cable. The driver cable connects the ECT-Series electric screwdriver to the ECTD controller.
- M310210 = 3m length cable
- M310211 = 5m length cable
- M310212 = 8m length cable
- M310213 = 10m length cable
Optional Accs

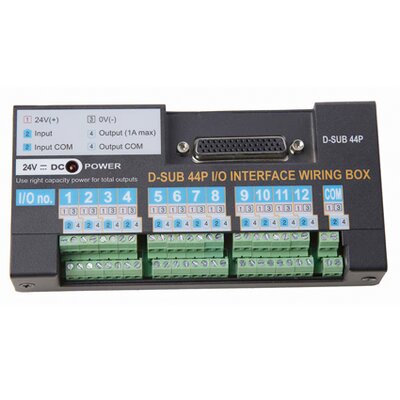

- M310055 = 44P I/O Wiring Box (provides easy and convenient wiring for 12 inputs and outputs of ECTD controller by sharing one single 24V power source). An AC power supply #310102 is required; an I/O cable #310057 is required for connection to controller.
- M310057 = I/O cable 3m for the ECTD controller in connecting the 44P I/O Wiring Box device (44P plug to 25P plug).
- M310102 = SMPS adapter (DC 24V 1A); includes a 110V power cord plug.
- M310110 = AC 230V EU-plug power cord for SMPS adapter.

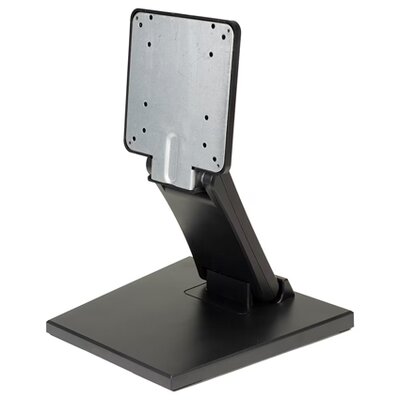

- M310203 = Vertical Stand (mount the controller for placement on an assembly workbench station.)
- M310215 = Wall Mount Bracket (can be firmly installed on the wall with 4 screws.)
Various supporting cables for DC controllers. Digital I/O signals for communication with external devices such as PLC.
- M310150 = Cable 25P I/O (Plug to Open Wire) 5m
- M310164 = Cable 25P I/O (Plug to Open Wire) 3m
- M773069 = Cable USB to RS232 adapter. Lets you connect 9-pin (DB9) RS232 serial devices to your laptop or desktop computer through a USB port.
- M773856 = RS232 cable DB9 plug x DB9 socket, 2m
