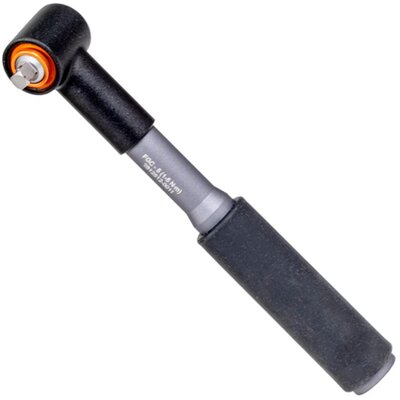

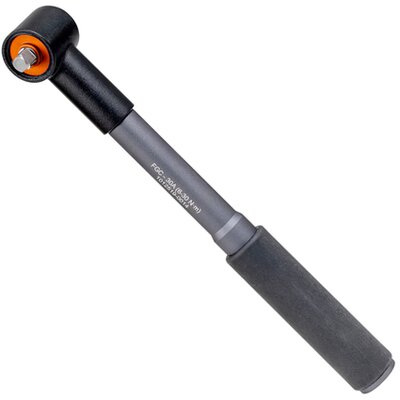

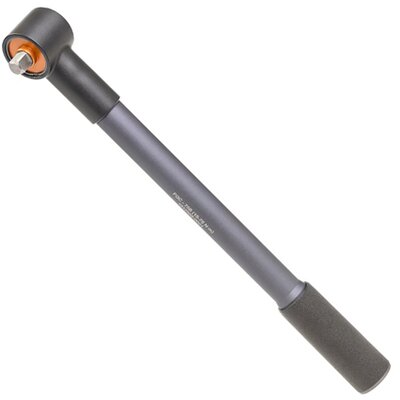

Mountz FGC Cam-Over Torque Wrench

Capacity 5 / 10 / 30 / 75 / 125 Nm

The Mountz FGC cam-over wrench is a reliable and durable error-proofing tool that allows engineers to reduce the risk of over-torque on their assembly lines in sensitive production environments. Engineered and assembled in Silicon Valley, Mountz FGC precision preset cam-over wrenches are the most advanced torque-limiting wrenches for high-level process and quality control.



The preset wrench ensures that the correct torque value is applied consistently to each fastener without the risk of operator adjustment. Click wrenches are not 100 % process safe and are often susceptible to over-torque results due to operator influence. A click wrench does not physically prevent an operator from applying additional force and which leads to inaccuracy.



Using a clutch mechanism, cam-over tools prevent the operator from applying too much torque to the fastener – preventing over-torque events, broken components, costly product returns, and safety risks.



Error-Proofing



  • Engineered with a cam-over mechanism, cam-over poka-yoke torque screwdrivers reduce the possibility of operator error in both fastening directions, ensuring correct torque is applied and preventing fastener breakage.
  • Providing the operator with a preset tool prevents tampering and ensures that operators always use the appropriate torque setting – unmatched security of the tamper-proof internal adjustment. No external adjustment scale – must be preset using a torque analyzer.



Ergonomics



  • Ergonomic cushion grip reduces discomfort, fatigue, and risk of injury.



Quality Standards



  • Mountz tools are durable & reliable. Mountz provides an industry-leading warranty: 2 years unconditional. Lifetime against defects.
  • Calibration life 2x ISO standards, unmatched by any torque wrench.
FGC
Model Item No. Torque Range [N·m] Torque Range [lbf·in] SqD [inch] Length [mm] Weight [kg]
FGC-5 M076565 1 - 5 8.9 - 44 1/4 198 0.27
FGC-10D M076566 2 - 10 18 - 88 1/4 198 0.32
FGC-10A M076567 2 - 10 18 - 88 3/8 198 0.32
FGC-30D M076568 6 - 30 53 - 265 1/4 325 0.77
FGC-30A M076569 6 - 30 53 - 265 3/8 325 0.77
FGC-75 M076570 15 - 75 133 - 663 3/8 445 1.4
FGC-125 M076571 25 - 125 221 - 1106 1/2 445 1.4

Table showing specifications by the manufacturer. It is recommended to primarily use in moderate performance range (approx. 1/3 to 4/5 of rated capacity). If you regularly worked close to the limit of load (max capacity), a larger model or tool might be more advisable.



All technical data without guarantee, errors and omissions excepted.
