Power Sockets – 6-Point Hexagon

2 1/2" Square Drive

The square drive of the Action® torque socket wrench is rounded outwards at the corners. This ensures, firstly, that the drive spindle of the screwdriver fits perfectly. Secondly, it ensures that the torque is transmitted not only at the corners of the impact socket but also along the flanks. This increases the service life of both the impact socket and the drive spindle of the impact wrench.

Hexagon

The rounded inner corners of the Action® hexagonal power sockets create a certain amount of play in the corners of the hexagon within the screw head. This results in increased force distribution across the flanks. It also reduces wear on the screw head or nut corners.

Usage Remarks

Replace worn power sockets at the first sign of wear.
In accordance with EU Directive 2006/42/EC (Machinery Directive) and EN/ISO 11148-6, only power sockets may be used on power tools.
Never hold rotating parts by hand!

6-point – metric

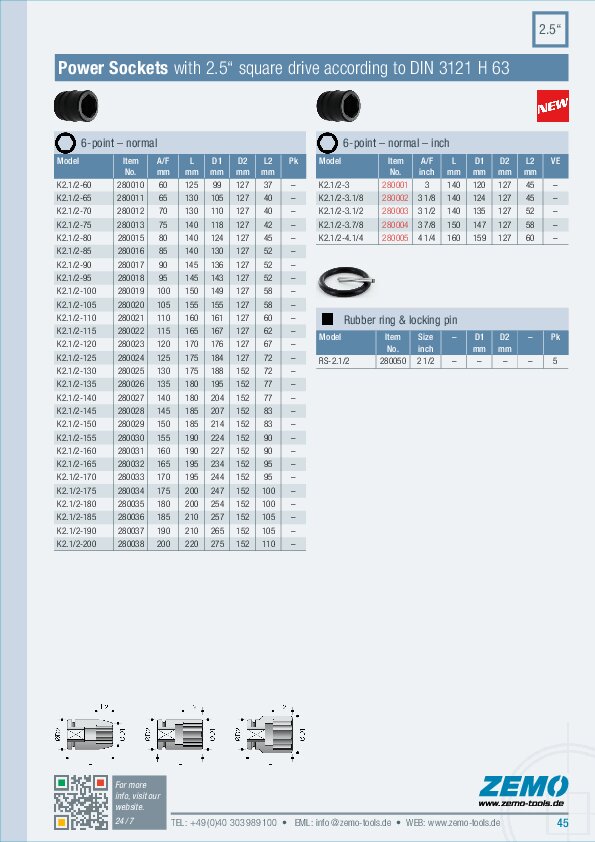

Model	Item No.	A/F [mm]	Length [mm]	D1 [mm]	D2 [mm]	L2 [mm]	Pk
K2.1/2-60	280010	60	125	99	127	37	–
K2.1/2-65	280011	65	130	105	127	40	–
K2.1/2-70	280012	70	130	110	127	40	–
K2.1/2-75	280013	75	140	118	127	42	–
K2.1/2-80	280015	80	140	124	127	45	–
K2.1/2-85	280016	85	140	130	127	52	–
K2.1/2-90	280017	90	145	136	127	52	–
K2.1/2-95	280018	95	145	146	127	52	–
K2.1/2-100	280019	100	150	149	127	58	–
K2.1/2-105	280020	105	155	155	127	58	–
K2.1/2-110	280021	110	160	161	127	60	–
K2.1/2-115	280022	115	165	167	127	62	–
K2.1/2-120	280023	120	170	176	127	67	–
K2.1/2-125	280024	125	175	184	127	72	–
K2.1/2-130	280025	130	175	188	152	72	–
K2.1/2-135	280026	135	180	195	152	77	–
K2.1/2-140	280027	140	180	204	152	77	–
K2.1/2-145	280028	145	185	207	152	83	–
K2.1/2-150	280029	150	185	214	152	83	–
K2.1/2-155	280030	155	190	224	152	90	–
K2.1/2-160	280031	160	190	227	152	90	–
K2.1/2-165	280032	165	195	234	152	95	–
K2.1/2-170	280033	170	195	244	152	95	–
K2.1/2-175	280034	175	200	247	152	100	–
K2.1/2-180	280035	180	200	254	152	100	–
K2.1/2-185	280036	185	210	257	152	105	–
K2.1/2-190	280037	190	210	265	152	105	–
K2.1/2-200	280038	200	220	275	152	110	–

6-point – inch

Model	Item No.	A/F [inch]	Length [mm]	D1 [mm]	D2 [mm]	L2 [mm]	Pk
K2.1/2-3	280001	3	140	120	127	45	–
K2.1/2-3.1/8	280002	3 1/8	140	124	127	45	–
K2.1/2-3.1/2	280003	3 1/2	140	135	127	52	–
K2.1/2-3.7/8	280004	3 7/8	150	147	127	58	–
K2.1/2-4.1/4	280005	4 1/4	160	159	127	60	–

All specifications without guarantee, errors and omissions excepted.
