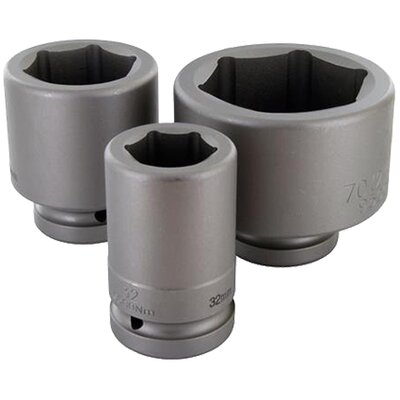

Power Sockets – 6-Point Hexagon – High Torque

1" Square Drive

These high torque sockets have an overall length of 85mm for all sizes across flats, so the support of the reaction arm is made easily.

The Square Drive

The square drive of the Action® torque socket wrench is rounded outwards at the corners. Firstly, this ensures an excellent fit with the drive spindle of the screwdriver. Secondly, it ensures that the torque is transmitted not only at the corners of the impact socket but also along the flanks. This increases the service life of both the impact socket and the drive spindle of the impact wrench.

The Hexagon

The rounded inner corners of the Action® hexagonal power sockets create a certain amount of play in the corners of the hexagon within the screw head. This results in increased force distribution across the flanks. It also reduces wear on the screw head or nut corners.

Instructions for Use

Replace worn power sockets at the first sign of wear.
In accordance with EU Directive 2006/42/EC (Machinery Directive) and EN/ISO 11148-6, only power sockets may be used on power tools.
Never hold rotating parts by hand!

More details to follow shortly. Stay tuned...

6-point – High Torque

Model	Item No.	A/F [mm]	L [mm]	D1 [mm]	D2 [mm]	L2 [mm]	Pk [ea]
KHT1-30	260200	30	85	51	54	21	–
KHT1-32	260202	32	85	53	54	22	–
KHT1-35	260203	35	85	57	54	22	–
KHT1-36	260204	36	85	58	54	25	–
KHT1-38	260206	38	85	61	54	25	–
KHT1-41	260207	41	85	64	54	27	–
KHT1-43	260209	43	85	68	54	27	–
KHT1-46	260210	46	85	72	54	30	–
KHT1-48	260212	48	85	74	54	32	–
KHT1-50	260214	50	85	77	58	35	–
KHT1-52	260216	52	85	79	58	35	–
KHT1-54	260218	54	85	82	58	35	–
KHT1-55	260219	55	85	83	58	35	–
KHT1-60	260220	60	85	89	58	42	–
KHT1-65	260221	65	85	95	58	42	–
KHT1-70	260222	70	85	102	58	42	–

All specifications without guarantee, errors and omissions excepted.
