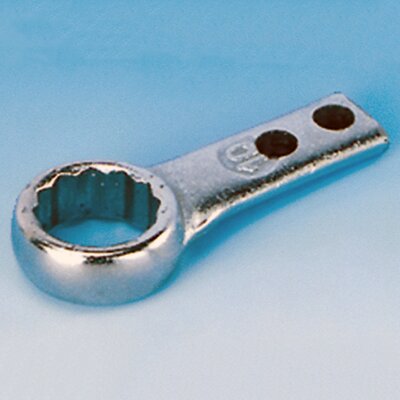

Special Box Head 'Mini'
Centre Line 17.5 mm
Interchangeable box head for use with the SR MiniTorq preset clicker torque wrench. Further A/F's and/or special manufacturings available on request.
Key Features
- Double hex point force transmission.
- Fixed by 2 x M3 screws.
- Forged alloy steel, chrome plated.
MBH (mm)
| Model | Item No. | A/F [mm] | Cent. dist. [mm] | Weight [kg] |
|---|---|---|---|---|
| MBH-5 | R809675 | 5 | 17.5 | n. a. |
| MBH-5.5 | R809676 | 5.5 | 17.5 | n. a. |
| MBH-6 | R809677 | 6 | 17.5 | n. a. |
| MBH-7 | R809678 | 7 | 17.5 | n. a. |
| MBH-8 | R809679 | 8 | 17.5 | n. a. |
| MBH-10 | R809680 | 10 | 17.5 | n. a. |
MBH (inch)
| Model | Item No. | A/F [inch] | Cent. dist. [mm] | Weight [kg] |
|---|---|---|---|---|
| MBH-3/16 | R809602 | 3/16 | 17.5 | n. a. |
| MBH-1/4 | R809603 | 1/4 | 17.5 | n. a. |
| MBH-5/16 | R809604 | 5/16 | 17.5 | n. a. |
| MBH-11/32 | R809605 | 11/32 | 17.5 | n. a. |
| MBH-3/8 | R809606 | 3/8 | 17.5 | n. a. |
All specifications without guarantee, errors and omissions excepted.
