Industrial Tools
Torque Systems

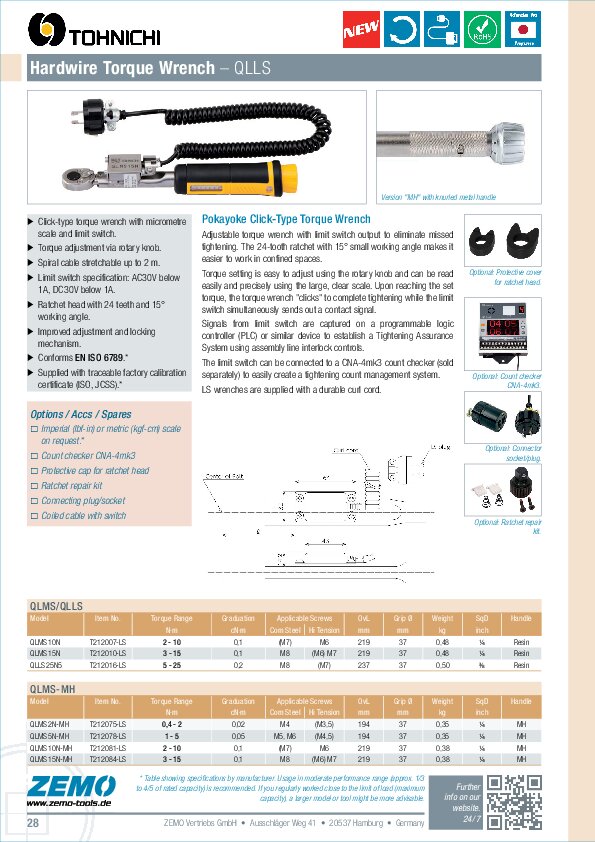

Tohnichi QLLS Clicker Torque Wrench

Capacity 2 / 5 / 10 / 15 / 25 Nm

Pokayoke torque wrench with limit switch output to eliminate missed tightening



Adjustable clicker type torque wrench with limit switch output and durable curly cord. Upon reaching the set torque, the torque wrench "clicks" to complete tightening while the limit switch simultaneously sends out a contact signal. Signals from a limit switch are captured on a programmable logic controller (PLC) or similar device to establish a Tightening Assurance System using assembly line interlock controls.



Torque setting is easy to adjust by knob and scale. The ratchet head has 24 teeth with a 15 degree operating range, allowing for use in space-limited working conditions. A clear “click” sound signals tightening completion upon reaching the set torque.



Metal handle version (-MH) especially suitable for use in greasy conditions (oil, chemicals, etc.) such as garage work. Large adjusting knob designed to enhance usability in torque setting by oily hands.



Key Features



  • Spiral cable transmits contact signal
  • Limit switch specification is 30 V AC/DC below 1 A
  • Ratchet with 24 teeth and 15° operating range
  • Clearly audible click signal
  • Improved adjusting and lock mechanism
  • Compliant to ISO 6789 type II class A



Scope of Supply



  • Torque wrench w limit switch, curly cable & connector
  • Traceable calibration certificate (ISO/JCSS)
  • Operating manual



Options / Accs / Spares



  • Imperial scale (lbf·in) on request*
  • Protection cover for ratchet head
    #870 (QL2N - QL15N)
    #871 (QL25N5)
  • Ratchet Repair Kit
    #1101 (QL2N - QL15N)
    #1102 (QL25N5)
  • LS male plug #WF6215
  • LS female connector #WA5219K
QLLS – Resin Handle
Model Item No. Torque Range [Nm] Graduation SqDrv [inch] Weight [kg] Grip
QLMS10N T212007-LS 2 - 10 0.1 1/4 0.48 Resin
QLMS15N T212010-LS 3 - 15 0.1 1/4 0.48 Resin
QLLS25N5 T212016-LS 5 - 25 0.2 3/8 0.50 Resin
QLMS-MH – Metal Handle
Model Item No. Torque Range [N·m] Graduation SqDrv [inch] Weight [kg] Grip
QLMS2N-MH T212075-LS 0.4 - 2 0.02 1/4 0.35 MH
QLMS5N-MH T212078-LS 1 - 5 0.05 1/4 0.35 MH
QLMS10N-MH T212081-LS 2 - 10 0.1 1/4 0.38 MH
QLMS15N-MH T212084-LS 3 - 15 0.1 1/4 0.38 MH

Table showing specifications by the manufacturer. It is recommended to primarily use in medium performance range (approx. 1/3 to 4/5 of rated capacity). If you regularly worked close to the limit of load (maximum capacity), a larger model or tool might be more advisable.



MG = Knurled Metal Grip.



* SI unit QLMS2N-MH, QLMS5N-MH, CLMS2NX8D-MH, and CLMS5NX8D-MH, and metric unit products 20QLMS-MH, 50QLMS-MH, 20CLMS-MH, and 50CLMS-MH are compliant with ISO 6789:2017 starting January 2022. Calibration Certificates will be different from older products. American unit products are not compliant with ISO 6789:2017.



All technical data without guarantee, errors and omissions excepted.
