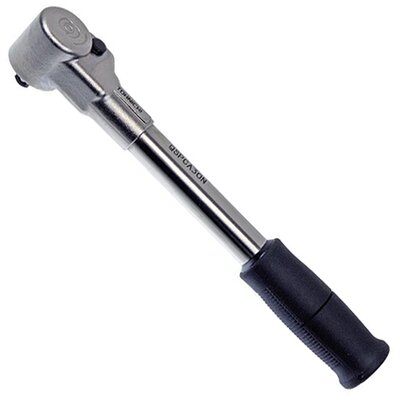

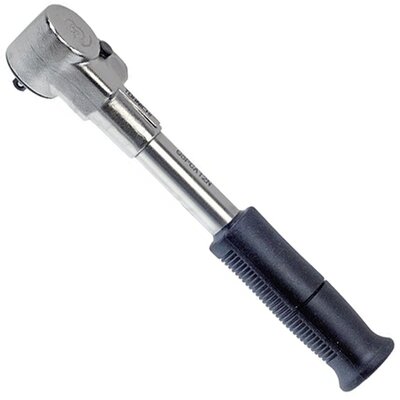

Tohnichi QSPCA Slip-Type Torque Wrench

Capacity 6 / 12 / 30 / 70 Nm

Preset Cam-Over Torque Wrench

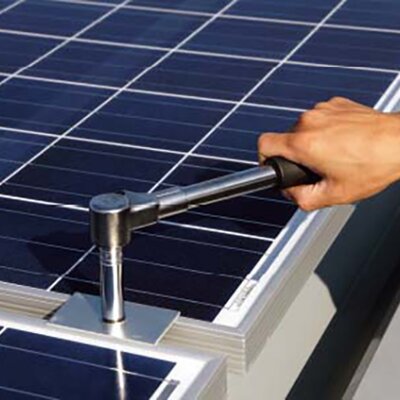

Once set torque is achieved, even if more force is applied QSPCA does not add additional torque and prevent over-torque. Applicable for assembly and mass production.

The set torque cannot be changed without using a special tool (sold separately), preventing the operator from changing torque by mistake. A clearly visible indentation in the handle marks the optimum point of application of force.

The QSPCA series conforms with the IEC 61340-5-1:2007 Standard (protection of electronic devices from electrostatic phenomena). Also, the QSPCA series is compliant with ISO 6789:2017 starting January 2022.

Features Type QSPCA

Repeat accuracy in accordance with DIN EN ISO 6789:2017
Right/left reversible ratchet
Fixed torque setting (preset)
ESD-safe (IEC 61340-5-1:2007)
Ergonomically shaped plastic handle (except model 70N)

Scope of delivery

Torque wrench QSPCA
Original operating instructions (Japanese/English)

Options / Accs / Spares

Adjustment tool
#931 for QSPCA6N...12N
#930 for QSPCA30N
#932 for QSPCA70N
Torque presetting ex works on request

Alternative Products

Type QSPCALS – equipped with limit switch and signal cable, for connection to PLC or similar.
Type QSPCAFH = equipped with radio module (2.4 GHz), see downloads

Service / Info

FAQ: Repeatability according to DIN EN ISO 6789
FAQ: Calibration of torque screwdrivers according to DIN EN ISO 6789

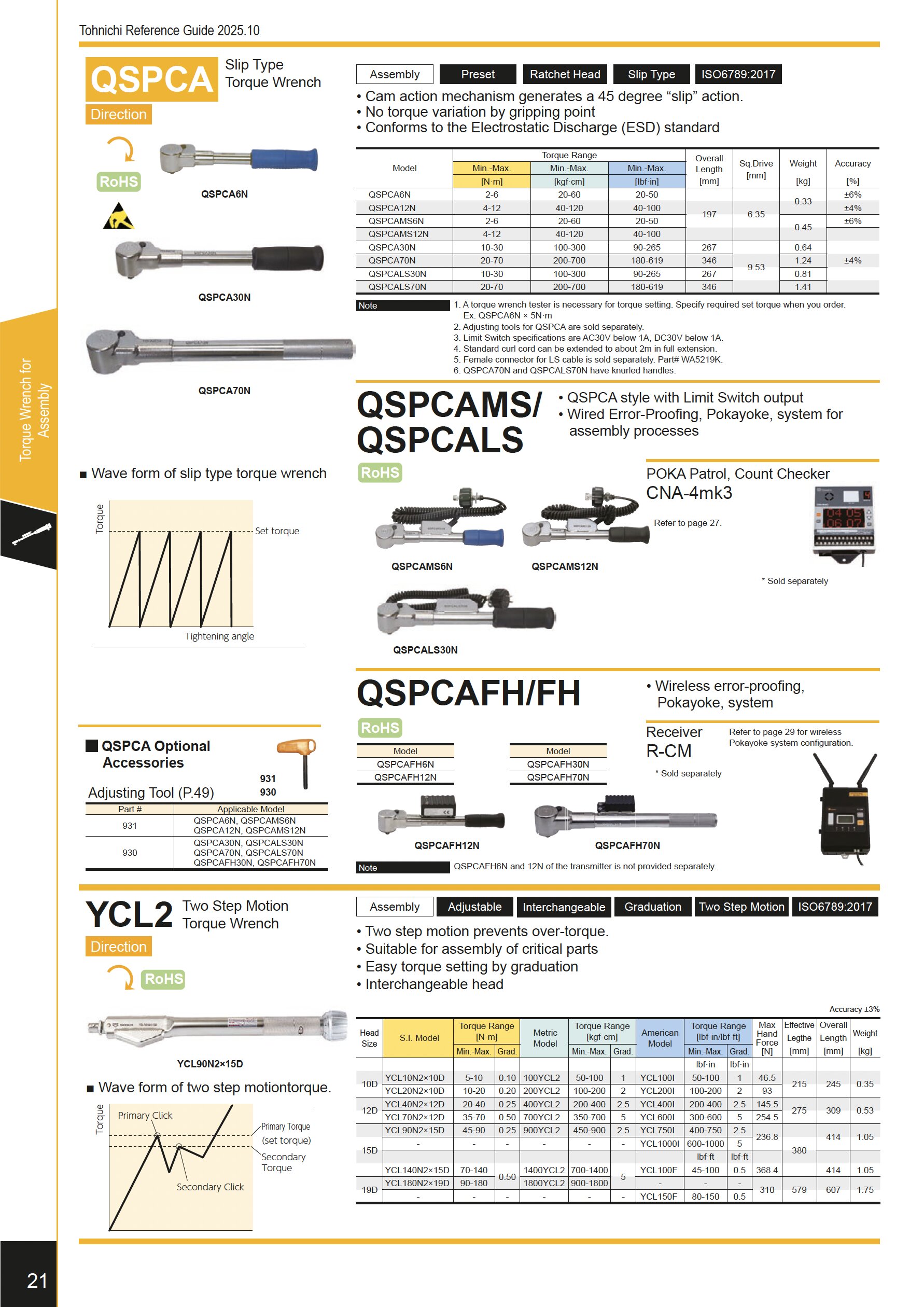

PDF: Catalogue with further information
PDF: Request operating instructions in German by e-mail

Questions about the product? Does your Tohnichi torque wrench need testing? Calibration? Repair?
Feel free to give us a call. Or send us an e-mail...

Tohnichi Mfg. Co. Ltd, calibration laboratory for torque standards, is an authorised calibration service provider of JCSS (Japan Calibration Service System), which is subject to Japanese measurement laws (reg. no. JCSS0281). The JCSS calibration certificate issued by Tohnichi is internationally recognised based on the Mutual Recognition Agreement (MRA) between ILAC (International Laboratory Accreditation Cooperation) and APLAC (Asia Pacific Laboratory Accreditation Cooperation) through IAJapan.

QSPCA

Model	Item No.	Torque Range [N·m]	Torque Range [lbf·in]	Torque Range [kgf·cm]	Length [mm]	Weight [kg]	Handle
QSPCA6N	T212600	2 - 6	20 - 50	20 - 60	197	0.33	Resin
QSPCA12N	T212601	4 - 12	40 - 100	40 - 120	197	0.33	Resin
QSPCA30N	T212602	10 - 30	90 - 270	100 - 300	267	0.64	Resin
QSPCA70N	T212603	20 - 70	180 - 620	200 - 700	346	1.24	Metal
