Yokota YETC-700A System Impulse Tool Controller

for Transducerized System Impulse Wrenches

Angle-Monitoring System Impulse Wrench Controller

The Yokota controlled tightening system consists of the YETC-700A controller, TKa impulse wrench, solenoid valve for compressed air control and other optional system components.

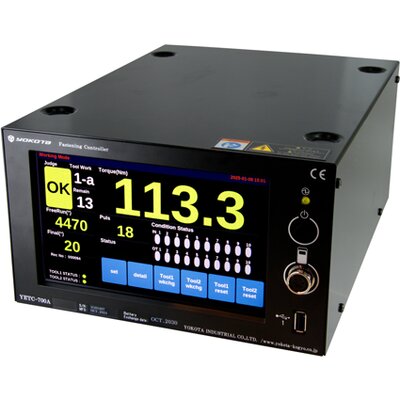

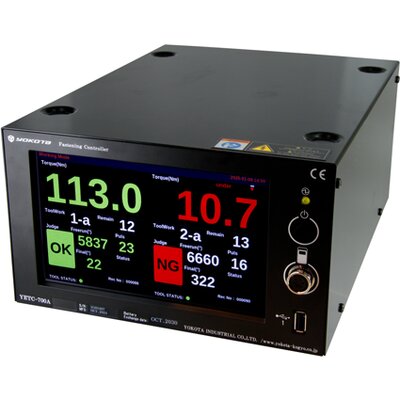

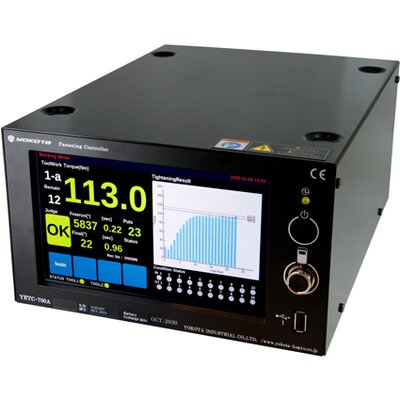

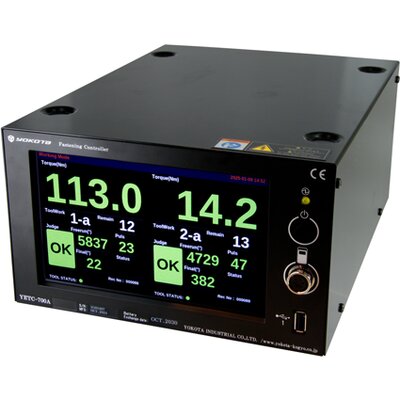

2 tools (TKa Series) can be connected and operated simultaneously. 20 work groups are available per 1 tool. MMI by Touch screen panel 7”. Memory contains up to 100.000 tightening results, can contain up to 50 waveform data and 50 Dynamic torque data. Also setting changes history and error information is stored in memory.

The programmable monitoring of bolt groups allows changing from group to group without operating the control unit. Control by external signals is also possible, e.g. by socket spanner change box. Thus, the Yokota control unit YETC-ER fully supports the integration into a Poka Yoke system: accept zero faults, produce zero faults, pass on zero faults.

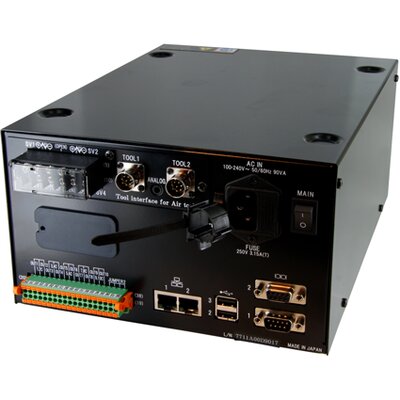

Connectivity

2x Serial connector RS-232
2x LAN terminal RJ-45
I/O terminal block (10 inputs, 10 outputs)
3x USB-A type connector
Connector for PC-2 Programming Console
2x Tool connector
2x solenoid valve terminal

Related Products

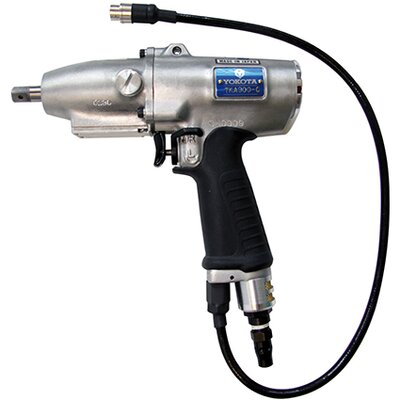

Transducerised impulse tools with angle sensor: TKa-600 / 700 / 800 / 900 / 1110 / 1200 / 1400 / 1500

Options / Accs / Spares

Programming console PC-2
24V solenoid valve set
Electronic valve for 2-step tightening
Extenshion Cable BU 10m
Tool Cable BU 10m

>>> More info to come soon. Stay tuned...

YETC-700A

Model	Item No.	Tools	Ethernet LAN	RS-232	E/A	Related	Weight [kg]	Dims [mm]
YETC-700A	410280	2	2x RJ-45	2x DE-9	10/10	TKa (ER)	3.9	210×130×277

Dims: W 210 x H 130 x D 277 mm. Power Supply: AC 100–240V, 50/60Hz

All specifications without guarantee, errors and omissions excepted.
