Sturtevant Richmont Dovetail : Rectangle Head Adapter
Common Centre Line: misc
Dovetail adaptor for interchangeable heads with rectangle insert
These adapters allow those who have interchangeable heads of the DIN style (male rectangular connector) to use them with SR preset interchangeable head torque wrenches.
CAUTION When Using Head Extensions and Head Adapters!
- Do NOT use these with CCM-Series but only with preset torque wrenches.
- Preset the torque wrench after the adapter and interchangeable head have been attached to the tool.
Features
- SR dovetail attachment
- European rectangle insert ('DIN')
- Cast Alloy Steel, black finished
Ordering Information
- R819136 = S9 adaptor 9x12 mm / max torque 200 ft. lb (280 Nm)
- R819137 = S14 adaptor 14x18 mm / max torque 400 ft.lb (540 Nm)
GTIN (EAN)
- 4260667413360 = S9
- 4260667413377 = S14

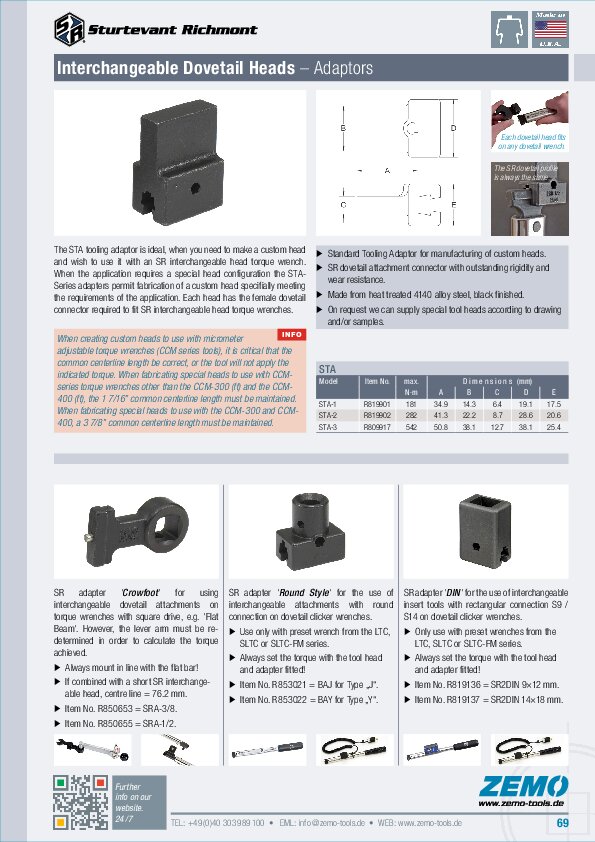

DIN Adapter
| Model | SKU | Size [mm] | max Torque [Nm] | A [mm] | B [mm] | C [mm] | GTIN (EAN) |
|---|---|---|---|---|---|---|---|
| DIN-S9 | R 819136 | 9x12 | 282 | 34.5 | 26.9 | 25.4 | 4260667413360 |
| DIN-S14 | R 819137 | 14x18 | 542 | 34.5 | 31.7 | 20.6 | 4260667413377 |
SKU = Stock Keeping Unit. GTIN = Global Trade Item Number. EAN = European Article Number.
All specifications without guarantee, errors and omissions excepted.
