Sturtevant Richmont LTC-750i Torque Wrench

C.A.R.T. application

The SR dovetail connects to all SR interchangeable heads

Video

Downloads

INFO: Frank W. Livermont (1898–1960), founder and owner of Richmont Inc., held numerous torque-related patents. The Livermont Analyser, the Roto-Torq screwdriver and the dovetail interchangeable head system gained worldwide reputation.

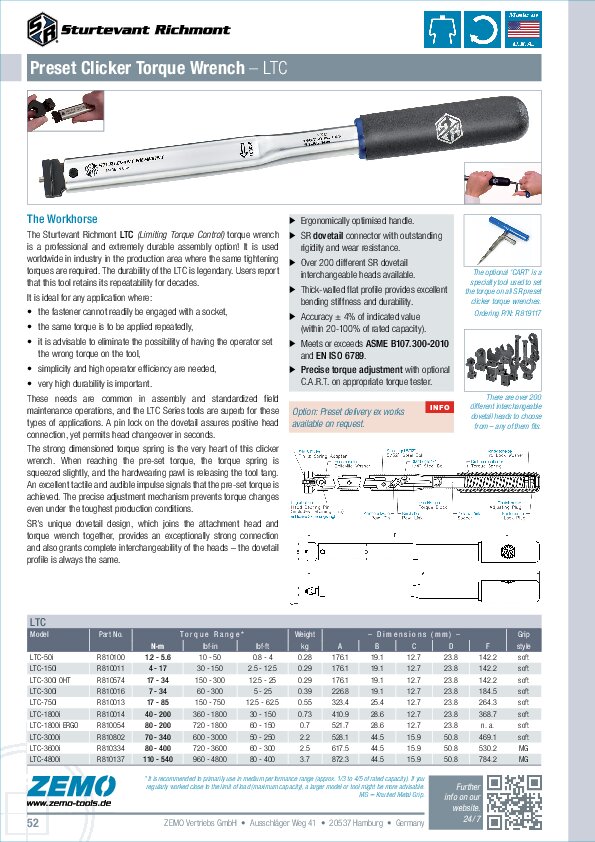

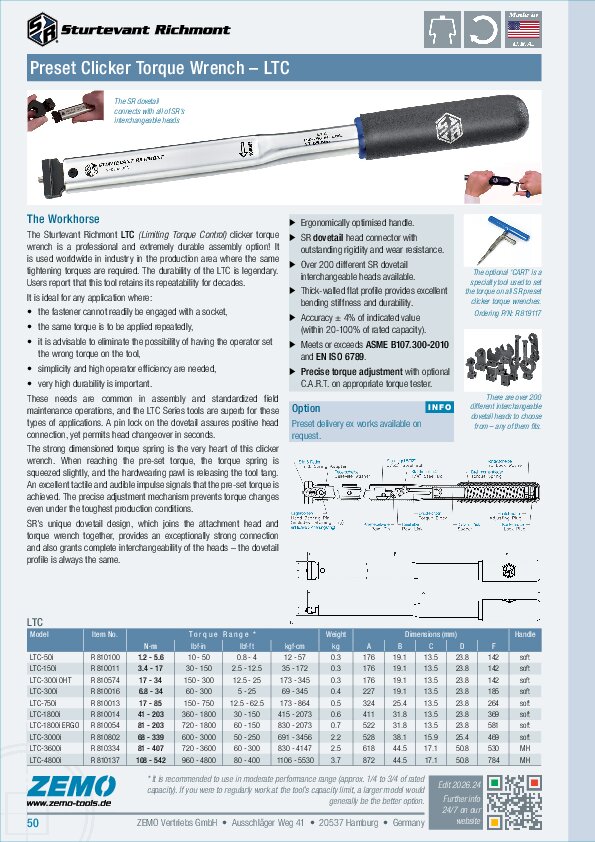

Sturtevant Richmont LTC Preset Torque Wrench

Capacity 6 / 17 / 34 / 85 / 200 / 340 / 400 / 540 Nm

Preset Clicker Torque Wrench with Dovetail Tang

The practical, cost-effective, and extremely versatile assembly option! These preset interchangeable head torque wrenches are ideal for any application where:

The fastener or fitting to be tightened cannot readily be engaged with a socket,
The same torque is to be applied repeatedly,
It is advisable to eliminate the possibility of having the operator set the wrong torque on the tool,
High operator efficiency is needed,
Simplicity of operation is needed,
Very high durability is needed.

These needs are common in assembly and standardized field maintenance operations, and the LTC Series tools are superb for these types of applications. A pin lock on the dovetail assures positive head connection, yet permits head changeover in seconds.

The torque is preset and locked in with a special tool, and tamper-resistant/tamper-evident seals can be installed. Torque can be set using any torque measurement/calibration device providing ± 1% accuracy or better. See our „Torque Measurement“ products.

The strong dimensioned torque spring is the very heart of this clicker wrench. With reaching the pre-set torque, the torque spring is squeezed slightly, and the hardwearing pawl is releasing the tool tang. An excellent tactile and audible impulse signals that the pre-set torque is achieved.

Key Features

Accuracy ± 4% of indicated value (within 20-100% of capacity).
Meets or exceeds ASME B107.300-2010 and EN ISO 6789.
SR dovetail connector with outstanding rigidity and wear resistance.
Thick-walled housing profile provides high long-term stability.
Torque adjustment via optional C.A.R.T. (p/n 819117).
Comfortable cushion grip plus light weight for excellent ergonomics.
Can be ordered preset from factory, or you can set the torque with your own torque tester.

Scope of Supply

Torque wrench LTC
Operating manual

Options / Accs / Spares

Interchangeable Dovetail Heads

NATO approval (NSN)

5120-01-394-4254 = 810100 = LTC50i
5120-01-394-4255 = 810016 = LTC300i
5120-01-394-4256 = 810013 = LTC750i
5120-01-394-4257 = 810011 = LTC150i
5120-01-394-4258 = 810014 = LTC1800i
5120-01-394-4259 = 810334 = LTC3600i
5120-01-394-4261 = 810102 = LTC1200i

LTC

Model	Item No.	Torque Range [lbf·in]	Torque Range [N·m]	Torque Range [kgf·cm]	Weight [kg]	Length [mm]	Grip
LTC 50i	R 810100	10 - 50	1.1 - 5.6	12 - 57	0.3	175	Soft
LTC 150i	R 810011	30 - 150	3.4 - 17	35 - 172	0.3	175	Soft
LTC 300i 0HT	R 810574	150 - 300	17 - 34	173 - 345	0.3	175	Soft
LTC 300i	R 810016	60 - 300	6.8 - 34	69 - 345	0.4	224	Soft
LTC 750i	R 810013	150 - 750	17 - 85	173 - 864	0.6	319	Soft
LTC 1800i	R 810014	360 - 1800	41 - 203	415 - 2073	0.7	405	Soft
LTC 1800i ERGO	R 810054	360 - 1800	41 - 203	415 - 2073	0.7	498	Soft
LTC 3000i	R 810802	600 - 3000	68 - 339	691 - 3456	2.2	520	Soft
LTC 3600i *	R 810334	720 - 3600	81 - 407	830 - 4147	2.5	618	MH
LTC 4800i *	R 810137	960 - 4800	108 - 542	1106 - 5530	3.7	872	MH

* Calibrated for 3 7/8 inch centreline (~98.4 mm).

The current models up to capacity 3000i (~340 Nm) are equipped with an ergonomically optimized “soft” handle; the previous models (up to 2007) had a hard vinyl handle. The SR logo now embossed on the handle marks the optimal point of force application. Due to size constraints, this 'ergo handle' is not used on models with a capacity of 3600i (~400 Nm) or higher; instead, these models have a knurled metal handle (MH).

Table data following specifications by the manufacturer. It is recommended to primarily use in medium performance range (approx. 1/3 to 4/5 of rated capacity). If you regularly worked close to the limit of load (maximum capacity), a larger model or tool might be more advisable.

MH = Knurled Metal Grip.

All technical data without guarantee, errors and omissions excepted.
