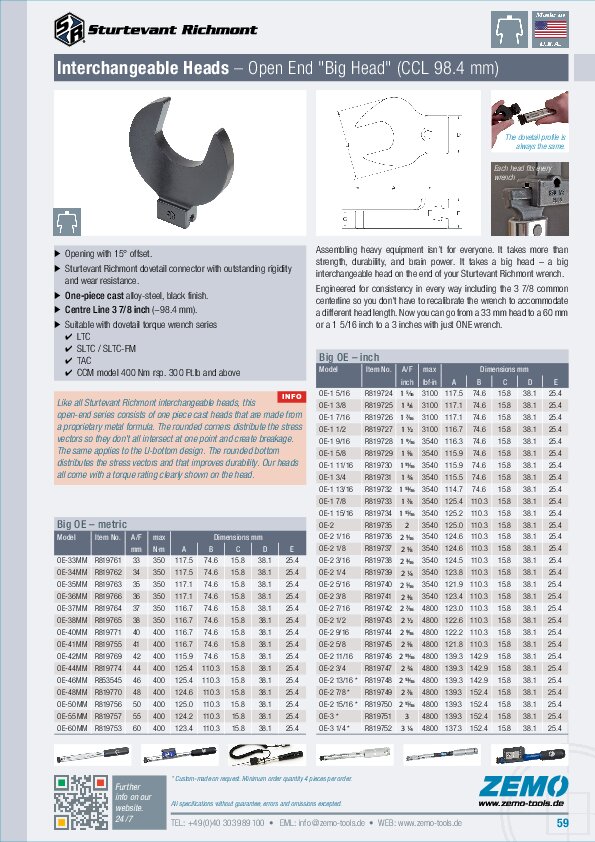

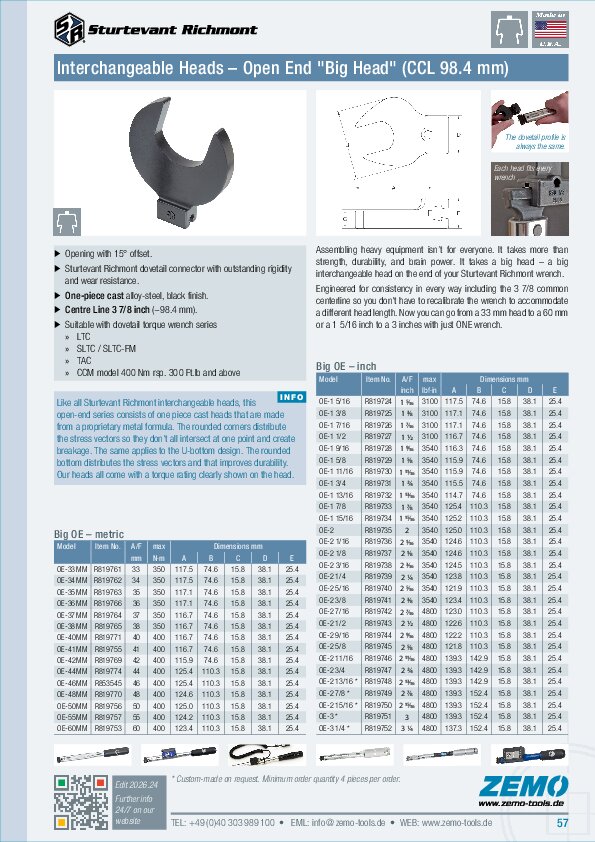

Sturtevant Richmont OE Big Open End Head

Common Centre Line 3 7/8 inch (~98.4 mm)

Interchangeable Open End Head for Dovetail Torque Wrenches

Assembling heavy equipment isn’t for everyone. It takes more than strength, durability, and brain power. It takes a big head – a big interchangeable head on the end of your Sturtevant Richmont wrench. Maintaining heavy equipment isn't for everyone. Maintaining heavy equipment requires the right tools for the job. The same tools used to build the equipment are the right tools to use to maintain that equipment.

Engineered for consistency in every way including the 3 7/8 common centerline so you don't have to recalibrate the wrench to accommodate a different head length. Now you can go from a 33 mm head to a 60 mm or a 1 5/16 inch to a 3 inches with just ONE wrench.

The unique Sturtevant Richmont dovetail design used to join head and wrench provides an exceptionally strong connection and allows complete interchangeability. The SR system contributes to both operational flexibility and enhancing your return on investment!

To achieve constant torque values when changing heads, exact lever length must be maintained. Virtually all SR heads share a precise distance form end of wrench to center of fastener. This is referred to as a "Common Center Line".

Features

15 degrees opening offset
SR dovetail connector with outstanding rigidity and wear resistance
Centre line 3 7/8 inch (~98.4 mm)
Cast Alloy Steel, black finished

Big OE (mm)

Model	SKU	A/F [mm]	Max Torque [N·m]	Max Torque [lbf·in]	CCL [mm]	GTIN / EAN
OE-33 MM	R 819761	33	350	3100	98.4	4260667410796
OE-34 MM	R 819762	34	350	3100	98.4	4260667410802
OE-35 MM	R 819763	35	350	3100	98.4	4260667410819
OE-36 MM	R 819766	36	350	3100	98.4	4260667410826
OE-37 MM	R 819764	37	350	3100	98.4	4260667410833
OE-38 MM	R 819765	38	350	3100	98.4	4260667410840
OE-40 MM	R 819771	40	400	3540	98.4	4260667410857
OE-41 MM	R 819755	41	400	3540	98.4	4260667410864
OE-42 MM	R 819769	42	400	3540	98.4	4260667410871
OE-44 MM	R 819774	44	400	3540	98.4	4260667410888
OE-46 MM	R 853545	46	400	3540	98.4	4260667410895
OE-48 MM	R 819770	48	400	3540	98.4	4260667410901
OE-50 MM	R 819756	50	400	3540	98.4	4260667410918
OE-55 MM	R 819757	55	400	3540	98.4	4260667410925
OE-60 MM	R 819753	60	400	3540	98.4	4260667410932

Big OE (inch)

Model	SKU	A/F [inch]	Max Torque [N·m]	Max Torque [lbf·in]	CCL [inch]	GTIN / EAN
OE 1 5/16	R 819724	1 5/16	350	3100	3 7/8	4260667411649
OE 1 3/8	R 819725	1 3/8	350	3100	3 7/8	4260667411656
OE 1 7/16	R 819726	1 7/16	350	3100	3 7/8	4260667411663
OE 1 1/2	R 819727	1 1/2	350	3100	3 7/8	4260667411670
OE 1 9/16	R 819728	1 9/16	400	3540	3 7/8	4260667411687
OE 1 5/8	R 819729	1 5/8	400	3540	3 7/8	4260667411694
OE 1 11/16	R 819730	1 11/16	400	3540	3 7/8	4260667411700
OE 1 3/4	R 819731	1 3/4	400	3540	3 7/8	4260667411717
OE 1 13/16	R 819732	1 13/16	400	3540	3 7/8	4260667411724
OE 1 7/8	R 819733	1 7/8	400	3540	3 7/8	4260667411731
OE 2	R 819735	2	400	3540	3 7/8	4260667411755
OE 2 1/16	R 819736	2 1/16	400	3540	3 7/8	4260667411762
OE 2 1/8	R 819737	2 1/8	400	3540	3 7/8	4260667411779
OE 2 3/16 *	R 819738	2 3/16	400	3540	3 7/8	4260667411786
OE 2 1/4	R 819739	2 1/4	400	3540	3 7/8	4260667411793
OE 2 5/16 *	R 819740	2 5/16	400	3540	3 7/8	4260667411809
OE 2 3/8	R 819741	2 3/8	400	3540	3 7/8	4260667411816
OE 2 7/16 *	R 819742	2 7/16	540	4800	3 7/8	4260667411823
OE 2 1/2	R 819743	2 1/2	540	4800	3 7/8	4260667411830
OE 2 9/16	R 819744	2 9/16	540	4800	3 7/8	4260667411847
OE 2 5/8	R 819745	2 5/8	540	4800	3 7/8	4260667411854
OE 2 11/16	R 819746	2 11/16	540	4800	3 7/8	4260667411861
OE 2 3/4	R 819747	2 3/4	540	4800	3 7/8	4260667411878
OE 2 13/16 *	R 819748	2 13/16	540	4800	3 7/8	*
OE 2 7/8 *	R 819749	2 7/8	540	4800	3 7/8	*
OE 2 15/16 *	R 819750	2 15/16	540	4800	3 7/8	*
OE 3 *	R 819751	3	540	4800	3 7/8	*
OE 3 1/4 *	R 819752	3 1/4	540	4800	3 7/8	*

* Indicates special order with minimum of two (2) per order. SKU = Stock Keeping Unit. CCL = Common Centre Line. All specifications without guarantee, errors and omissions excepted.
