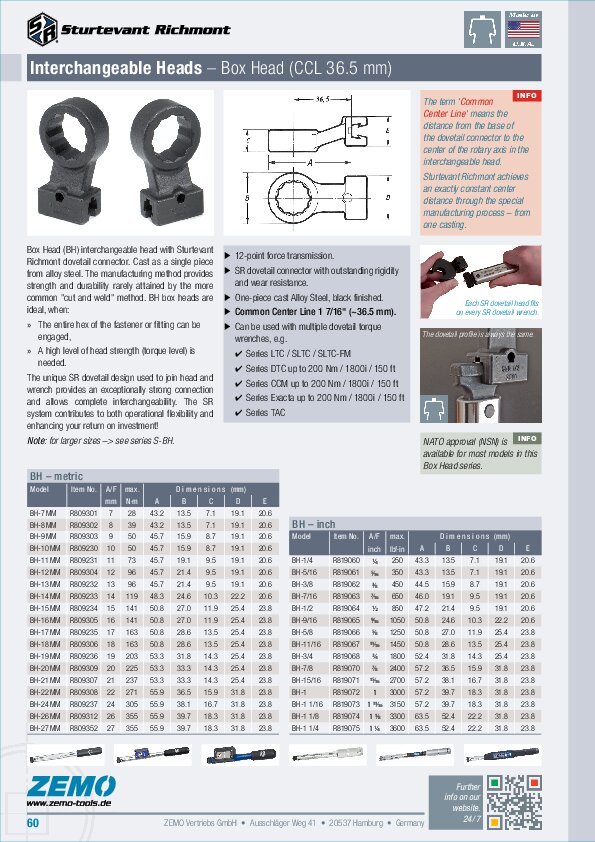

Sturtevant Richmont BH dovetail head

Common Centre Line 1 7/16 inch (~36.5 mm)

Interchangeable Box Head for Dovetail Torque Wrenches

Box head interchangeable head with Sturtevant Richmont dovetail connector. Cast as a single piece from alloy steel. The manufacturing method provides strength and durability rarely attained by the more common "cut and weld" method. BH box heads are ideal, when:

A socket cannot be used,
The entire hex of the fastener or fitting can be engaged,
A high level of head strength (torque level) is needed.

The unique SR dovetail design used to join head and wrench provides an exceptionally strong connection and allows complete interchangeability. The SR system contributes to both operational flexibility and enhancing your return on investment!

To achieve constant torque values when changing heads, exact lever length must be maintained. Virtually all SR heads share a precise distance form end of wrench to center of fastener. This is referred to as a "Common Center Line" and is very difficult to maintain using the cut and weld construction method.

Features

12-point force transmission
SR dovetail connector with outstanding rigidity and wear resistance
Common centre line 1 7/16 inch (~36.5 mm)
One-piece cast Alloy Steel, black finished

BH (mm)

Model	Item No.	A/F [mm]	Max. Torque [N·m]	Max. Torque [lbf·in]	Centre Line [mm]
BH-7 MM	R 809301	7	28	250	36.5
BH-8 MM	R 809302	8	39	350	36.5
BH-9 MM *)	R 809303 *)	9	50	450	36.5
BH-10 MM	R 809230	10	50	450	36.5
BH-11 MM	R 809231	11	73	650	36.5
BH-12 MM	R 809304	12	96	850	36.5
BH-13 MM	R 809232	13	96	850	36.5
BH-14 MM	R 809233	14	119	1050	36.5
BH-15 MM	R 809234	15	141	1250	36.5
BH-16 MM	R 809305	16	141	1250	36.5
BH-17 MM	R 809235	17	163	1450	36.5
BH-18 MM	R 809306	18	163	1450	36.5
BH-19 MM	R 809236	19	203	1800	36.5
BH-20 MM	R 809309	20	225	1990	36.5
BH-21 MM	R 809307	21	237	2100	36.5
BH-22 MM	R 809308	22	271	2400	36.5
BH-24 MM	R 809237	24	305	2700	36.5
BH-26 MM	R 809312	26	355	3150	36.5
BH-27 MM	R 809352	27	355	3150	36.5

BH (inch)

Model	Item No.	A/F [inch]	Max. Torque [lbf·in]	Max. Torque [N·m]	Centre Line [inch]
BH-1/4	R 819060	1/4	250	28	1 7/16
BH-5/16	R 819061	5/16	350	39	1 7/16
BH-3/8	R 819062	3/8	450	50	1 7/16
BH-7/16	R 819063	7/16	650	73	1 7/16
BH-1/2	R 819064	1/2	850	96	1 7/16
BH-9/16	R 819065	9/16	1050	119	1 7/16
BH-5/8	R 819066	5/8	1250	141	1 7/16
BH-11/16	R 816067	11/16	1450	163	1 7/16
BH-3/4	R 819068	3/4	1800	203	1 7/16
BH-7/8	R 819070	7/8	2400	271	1 7/16
BH-15/16	R 819071	15/16	2700	305	1 7/16
BH-1	R 819072	1	3000	339	1 7/16
BH-1.1/16	R 819073	1.1/16	3150	355	1 7/16
BH-1.1/8	R 819074	1.1/8	3300	373	1 7/16
BH-1.1/4	R 819075	1.1/4	3600	406	1 7/16

*) Discontinued

All specifications without guarantee, errors and omissions excepted.
