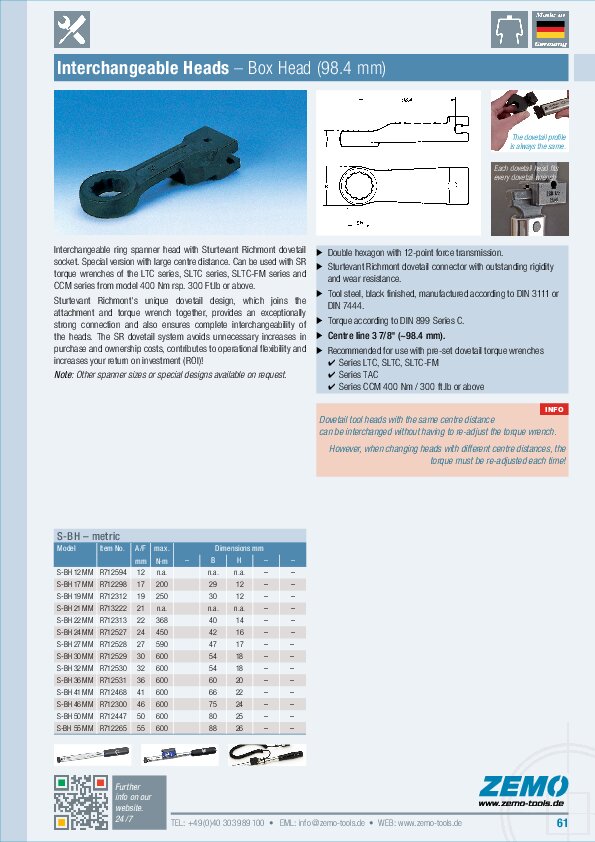

ZEMO Special Box Head (S-BH) dovetail head

Common Centre Line 3 7/8 inch (~98.4 mm)

Interchangeable Box Head for Dovetail Torque Wrenches

Special manufactured interchangeable box head with Sturtevant Richmont dovetail connector. Suitable for Sturtevant Richmont clicker type torque wrenches CCM-400Nm rsp. CCM-300 ft.lb or above, as well as the preset series LTC, SLTC, SLTC-FM.

The S-BH box heads are ideal, when:

A socket cannot be used,
The entire hex of the fastener or fitting can be engaged,
A high level of head strength (torque level) is needed.

The unique SR dovetail design used to join head and wrench provides an exceptionally strong connection and allows complete interchangeability. The SR system contributes to both operational flexibility and enhancing your return on investment!

Features

12-point force transmission
SR dovetail connector with outstanding rigidity and wear resistance
Common centre line 3 7/8 inch (~98.4 mm)
Alloy Steel, welded, black finished

S-BH

Model	Item No.	A/F [mm]	Max. Torque [N·m]	Max. Torque [lbf·in]	Centre Line [mm]
S-BH 24	R 712527	24	360	3190	98.4
S-BH 27	R 712528	27	400	3540	98.4
S-BH 30	R 712529	30	540	4780	98.4
S-BH 32	R 712530	32	550	4870	98.4
S-BH 36	R 712531	36	550	4870	98.4
S-BH 41	R 712468	41	550	4870	98.4

All specifications without guarantee, errors and omissions excepted.
