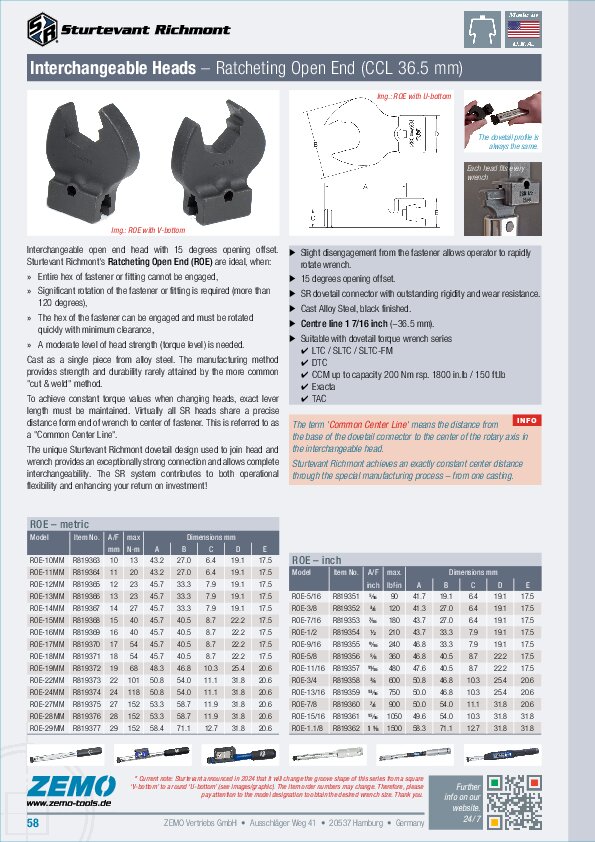

Sturtevant Richmont ROE dovetail head

Common Centre Line 1 7/16 inch (~36.5 mm)

Ratcheting Open End Head for Dovetail Torque Wrenches



Interchangeable open end head with 15 degrees opening offset. Cast as a single piece from alloy steel. The manufacturing method provides strength and durability rarely attained by the more common "cut & weld" method. ROE open end heads are ideal, when:

  • Entire hex of fastener or fitting cannot be engaged,
  • Significant rotation of the fastener or fitting is required (more than 120 degrees),
  • The hex of the fastener can be engaged and must be rotated quickly with minimum clearance,
  • A moderate level of head strength (torque level) is needed.



The unique Sturtevant Richmont dovetail design used to join head and wrench provides an exceptionally strong connection and allows complete interchangeability. The SR system contributes to both operational flexibility and enhancing your return on investment!



To achieve constant torque values when changing heads, exact lever length must be maintained. Virtually all SR heads share a precise distance form end of wrench to center of fastener. This is referred to as a "Common Center Line".



Features



  • 15 degrees opening offset
  • SR dovetail connector with outstanding rigidity and wear resistance
  • Common centre line 1 7/16 inch (~36.5 mm)
  • Cast Alloy Steel, black finished
ROE (mm)
Model Item No. A/F [mm] Max. Torque [N·m] Max. Torque [lbf·in] Centre Line [mm]
ROE-10 MM R819363 10 13 115 36.5
ROE-11 MM R819364 11 20 177 36.5
ROE-12 MM R819365 12 23 203 36.5
ROE-13 MM R819366 13 23 203 36.5
ROE-14 MM R819367 14 27 239 36.5
ROE-15 MM R819368 15 40 354 36.5
ROE-16 MM R819369 16 40 354 36.5
ROE-17 MM R819370 17 54 478 36.5
ROE-18 MM R819371 18 54 478 36.5
ROE-19 MM R819372 19 68 601 36.5
ROE-22 MM R819373 22 101 894 36.5
ROE-24 MM R819374 24 118 1044 36.5
ROE-27 MM R819375 27 152 1345 36.5
ROE-28 MM R819376 28 152 1345 36.5
ROE-29 MM R819377 29 152 1345 36.5
ROE-30 MM ◻︎ 30 155 1371 36.5
ROE-32 MM ◻︎ 32 169 1500 36.5
ROE (inch)
Model Item No. A/F [inch] Max. Torque [N·m] Max. Torque [lbf·in] Centre Line [inch]
ROE 5/16 R819351 5/16 10.2 90 1 7/16
ROE 3/8 R819352 3/8 13.6 120 1 7/16
ROE 7/16 R819353 7/16 20.3 180 1 7/16
ROE 1/2 R819354 1/2 23.7 210 1 7/16
ROE 9/16 R819355 9/16 27.1 240 1 7/16
ROE 5/8 R819356 5/8 40.7 360 1 7/16
ROE 11/16 R819357 11/16 54.2 480 1 7/16
ROE 3/4 R819358 3/4 67.8 600 1 7/16
ROE 13/16 R819359 13/16 84.7 750 1 7/16
ROE 7/8 R819360 7/8 101.7 900 1 7/16
ROE 15/16 R819361 15/16 118.6 1050 1 7/16
ROE 1 1/8 R819362 1 1/8 169.5 1500 1 7/16

All specifications without guarantee, errors and omissions excepted.
